Place of Origin: | GUANGZHOU CHINA(MAIN LAND) |
Brand Name: | FIRESTONE |
Certification: | ISO/TS16949:2009 |
Model Number: | Bellows Number 1T15KW-(-1) W01 358 9622 / W01-358-9622 / W013589622 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | $59 |
Packaging Details: | CARTON/CARTONS |
Delivery Time: | 5-10 work days |
Payment Terms: | T/T, L/C,PayPal |
Supply Ability: | 1000 |
TYPE: | ROLLING LOBE AIR SPRING | GUOMAT NUMBER: | 1T9622 |
---|---|---|---|
MATERIAL: | NATRAL RUBBER | PACKAGE: | STRONG CARTONS |
MODEL: | TRUCK | WARRANTY: | 12 MONTHS |
CONDITION: | NEW | PISTON: | WITHOUT PISTON |
High Light: | air ride springs,firestone air springs |

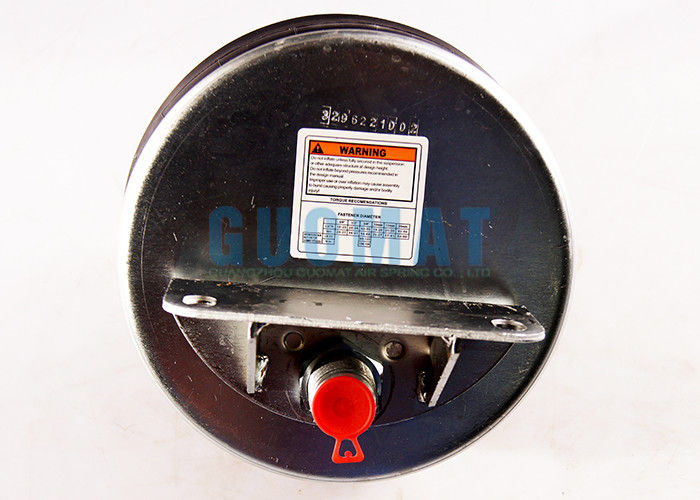

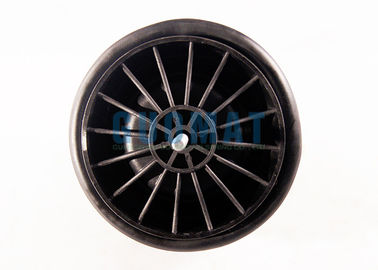

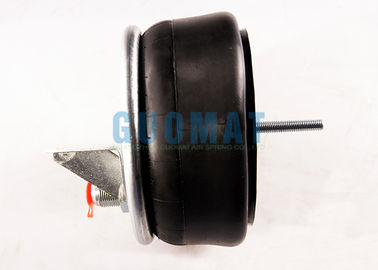

Firestone W01-358-9622 Truck Air Spring Bag For Euclid FS9622 - Bracket 6049 - Dallas AS9622
Product Information
GUOMAT NO. : 1T9622
VEHICLE TYPE: Truck
POSITION: The Floating Bridge
OEM REFERENCES
FIRESTONE 1T15LA-(-1) / 1T15LA (-1) / 1T15LA(-1)
Firestone Bellows Number 1T15KW-(-1)
W01 358 9622 / W01-358-9622 / W013589622
Top Plate Number:3002
Piston Number:9569
GOODYEAR 1R11-221 / 1R11 221 / 1R11221
GOODYEAR 566-22-3-021 / 566 22 3 021 / 566223021
Triangle 6367
Triangle 8537
Automann AB1DK20G-9622
VEHICLE OEM REFERENCES
KENWORTH K-303-22
Kenworth K30322
Kenworth K30319
Kenworth Number:K303-22
Kenworth FSIP OEM: W015449622
Bracket 6049
Euclid E-FS9622
Dallas AS9622
Euclid FS9622
Technical Parameters
Air spring type | Inlet type |
Reversible air spring | male |
Top plate diameter | Top plate installation type |
9.00 | brackets |
Piston diameter | Piston installation type |
8.18 | Stud |
Bellows diameter | Piston stud quantity |
9.12 | 1 |
Piston height | With inner bumper |
2.80 | No |
Piston material | Number of bellows |
Synthetic | 1T15LA(-1) |
Maximum extension height | |
11.00 | |
Minimum compression height | |
3.90 |
Extended Height:11.00
Compressed Height: 3.90
Top Plate Width:9.00
Piston Width:8.18
Assembly Weight: 11 lbs
Design Height: 5.5-6.25 inches
Minimum Jounce Height: 3.75 inches
Maximum Rebound Height: 10.63 inches
Loading Capacity at 20 psig: 1,320 lbsf
Loading Capacity at 60 psig: 3,960 lbsf
Loading Capacity at 90 psig: 5,940 lbsf
Natural Frequency: Hz
Maximum Diameter: 11.7 inches
Material Type: N/A
Operating Temperature: 57Co to -54Co
Notes
Air bellows NO.9622 566-22-3-021, 566-20-7-287, ASA-92-8-373, 1T15LA-(-1), 3002, 9569, NAD-27754, 1T15LA-0, 3002, 9569
ABOUT US...
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
The warranty period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
