| Place of Origin: | Guangzhou,China（Main Land） |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1R11-830/ 1R11-185/ 566-22-3-545/ 566-22-3-859 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | ＄69 |
| Packaging Details: | Carton/Cartons |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, L/C,PayPal |
| Supply Ability: | 1000 |
| Type: | Rolling Air Spring | GUOMAT NO.: | 1T1440305 |
|---|---|---|---|
| Material: | Natural Rubber | Package: | Strong Carton |
| Model: | Truck | Warranty: | 12 Months |
| Condition: | New | Piston: | With Piston |
| High Light: | air ride springs,firestone air springs |
||
492680 Scania Truck Air Suspension Spring Bag Goodyear 1R11 833 For 1440305
Product Information
GUOMAT NO. : 1T1440305
Vehicle Type: Truck
Positon: The Floating Bridge
Reference
| OEM Reference | Vehicle Reference |
| Aietech 330305 K/ 134702 | Scania 1440305 |
| Springride 1R11-830 | Scania 492680 |
| Springride 1R11-185 | |
| Springride Flex 566-22-3-545 | |
| Springride Flex 566-22-3-859 | |
| Goodyear 1R11-830 | |
| Goodyear 1R11-185 | |
| Goodyear Flex No. 566-22-3-545 | |
| Goodyear Flex No. 566-22-3-859 | |
| Firestone Style 1T15LR-4 | |
| Firestone No. W01-095-0481 | |
| Dunlop UK 01398A-AP | |
| Gart Ref. D297/B | |
| Gart No. 297.1.431 | |
| Blacktech RML70305C | |
| Airtech Ref. 330305 C | |
| Airtech No. 134702 | |
| Prime-Ride New 1R11-830 /566-22-3-545 | |
| Prime-Ride New 1R11-185 |

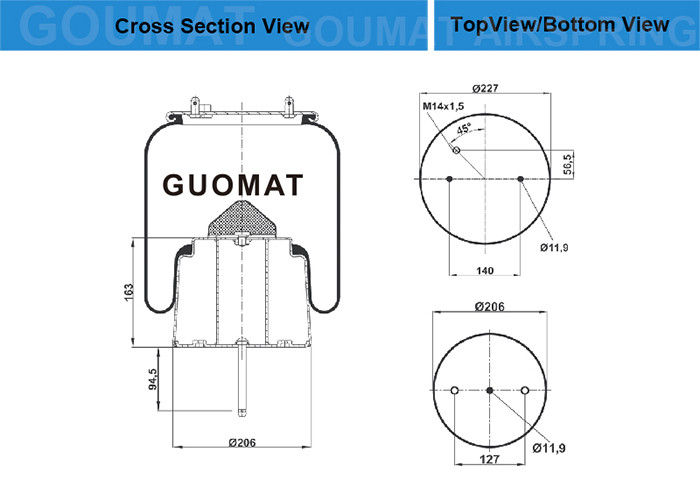

Technical Parameters
1.Top Cover Plate
Screw Bolt / Stud Tooth :2 pcs :
Gas Hole / Air inlet :M14X1.5
Top Cover Plate Diameter: Ø227 mm
Distance Between Air inlet and Stud: 56.5 mm
Distance Between Two Stud: 140 mm
2.Piston
Piston Diameter: Ø206 mm
Piston Height: 163 mm
Distance Between Two Stud: 127 mm
3.
Weight 8.3 kg
Screw kit K031
Torques M14x1.5: max. 20 Nm
About Us...
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
The Warranty Period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
