Place of Origin: | Guangzhou,China(Main Land) |
Brand Name: | Goodyear |
Certification: | ISO/TS16949:2009 |
Model Number: | 1R11-831/ 1R11-186/ 566-22-3-546/ 566-22-3-507 |
Minimum Order Quantity: | 1 PCS |
---|---|
Price: | $69 |
Packaging Details: | Carton/Cartons |
Delivery Time: | 3-10 work days |
Payment Terms: | T/T, L/C,PayPal |
Supply Ability: | 1000 |
Type: | Rolling Air Spring | GUOMAT NO.: | 1T1440306 |
---|---|---|---|
Material: | Natural Rubber | Package: | Strong Carton |
Model: | Truck | Warranty: | 12 Months |
Condition: | New | Piston: | With Piston |
High Light: | firestone air springs,truck air bag suspension |
492678 Scania Truck Air Suspension Spring Bag Goodyear 1R11 831/1R11 186 For 1440306
Product Information
GUOMAT NO. : 1T1440306
Vehicle Type: Truck
Positon: The Floating Bridge
Reference
OEM Reference | Vehicle Reference |
Springride 1R11-831 | Scania 1440306 |
Springride Flex 566-22-3-546 | Scania 492678 |
Springride Flex 566-22-3-507 | |
Goodyear 1R11-831 | |
Goodyear 1R11-186 | |
Goodyear Flex No. 566-22-3-546 | |
Goodyear Flex No. 566-22-3-507 | |
Dunlop UK 01397A-AP | |
Neotec ABM 226 28 B 02 | |
Blacktech RML70306C | |
Airtech Ref. 330306 C | |
Airtech No. 135482 | |
Prime-Ride New 1R11-831 | |
Prime-Ride New Flex No. 566-22-3-546 | |
Prime-Ride New 1R11-186 | |
Prime-Ride New Flex No. 566-22-3-507 | |
Prime-Ride New Flex No. 566-22-3-507 |

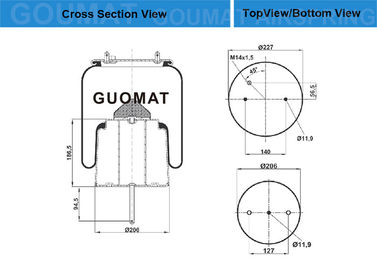

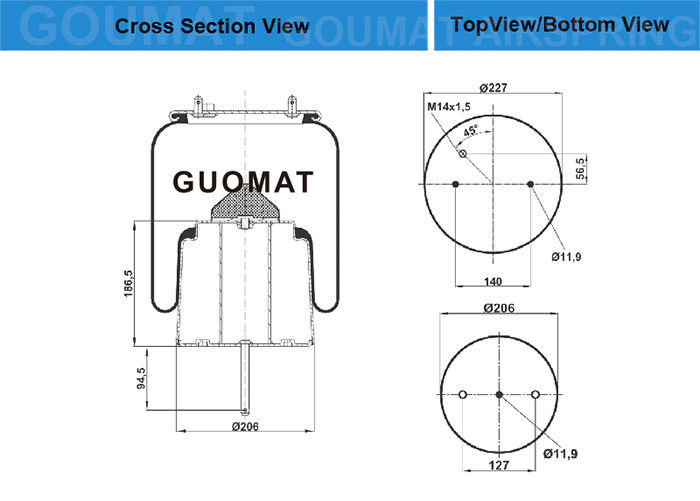

Technical Parameters
1.Top Cover Plate
Screw Bolt / Stud Tooth :2 pcs :
Gas Hole / Air inlet :M14X1.5
Top Cover Plate Diameter: Ø227 mm
Distance Between Air inlet and Stud: 56.5 mm
Distance Between Two Stud: 140 mm
2.Piston
Piston Diameter: Ø206 mm
Piston Height: 163 mm
Distance Between Two Stud: 127 mm
3.
Weight 8.6 kg
Screw kit K031
Torques M14x1.5: max. 20 Nm
About Us...
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
The Warranty Period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
