G1823 10 Mpa Air Jack For High Chassis And Heavy Body Car With Wheels And Rod
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: G1823
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber GUOMAT: G1823
Warranty: 12 Months Weight: 6.0kg
Other Name: Air Suspension Bags Pressure Ability: 145P Si /10Bar/10 Mpa
Net Weight: 29 KG / 63.9 Bls Gross Weight: 31 KG / 68.3 Bls
High Light:

convoluted air spring

,

air helper springs

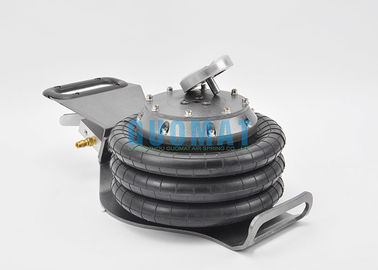

Air Jack G1823 Suitable For High Chassis And Heavy Body Car With Wheels And Rod





G1823 Technical parameters



Suitable for high chassis and heavy body car, with wheels and rod, suitable for use on the ground



Lifting weight :3000kg,

Supply pressure :145P si / 10Bar / 10Mpa,

Lowest height: 145mm / 5.71 "(+ 50mm / 1.97" -195mm / 7.68 "),

Air inlet: G1 / 4,

Lifting time: 5 sec,

Operating temperature: -60℃- +50℃,

Net weight: 29KG / 63.9bls,

Gross weight: 31KG / 68.3bls,

Packing size: 535mm * 380mm * 305mm /21.1 "* 15.0" * 12.0 "





Air spring production process:

1. Rubber mixing: exercise and rubber processing
2. The production of rubber bellows: bellows is made of inner is a layer of rubber, the middle is two layers of cord fabric and the outside is a layer of rubber. Through the fixed mold them together.
3. Other forming accessories: plastic parts, iron base, aluminum base, iron plate, and other hardware accessories, these parts have been made in different moulds.
4. The bellows and other accessories are gotten together by machine and make out air spring.
5. Air tightness detection: each production of good air spring fills the air, and then put into the water to test whether the bubbling gas leakage.
6. Quality: blasting test, fatigue test, the air spring blasting pressure GUOMAT factory is up to 30 atmospheric pressure, fatigue to reach 3 million times, meet the international standards.
7. Packing: the qualified products for packaging, are usually carton packaging, need some special strong wooden case packing, others are labeling packaging according to customer's requirements.



G1823 10 Mpa Air Jack For High Chassis And Heavy Body Car With Wheels And Rod 0G1823 10 Mpa Air Jack For High Chassis And Heavy Body Car With Wheels And Rod 1G1823 10 Mpa Air Jack For High Chassis And Heavy Body Car With Wheels And Rod 2
