S-240-4 / S-200-3 / S-100-4 / S-90-3 Air Balloons Spring For Crankshaft Punch

China S-240-4 / S-200-3 / S-100-4 / S-90-3 Air Balloons Spring For Crankshaft Punch supplier
S-240-4 / S-200-3 / S-100-4 / S-90-3 Air Balloons Spring For Crankshaft Punch supplier S-240-4 / S-200-3 / S-100-4 / S-90-3 Air Balloons Spring For Crankshaft Punch supplier S-240-4 / S-200-3 / S-100-4 / S-90-3 Air Balloons Spring For Crankshaft Punch supplier

Large Image :  S-240-4 / S-200-3 / S-100-4 / S-90-3 Air Balloons Spring For Crankshaft Punch

Product Details:

Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: S-240-4 / S-200-3 / S-100-4 / S-90-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Stainless Steel Crimp, Rubber Yokohama: S-240-4 / S-200-3 / S-100-4 / S-90-3
GUOMAT: F-240-4 / F-200-3 / F-100-4 / F-90-3 Layer Number: 4 Convolutions,3 Convolutions,
Vibration Frequency: 1.8 Hz Maximum Internal Pressure: 0.69 M Pa
Net Weight: 7.5 KG And Others Packing Size: 30*30*20 Cm
Natural Width: 300 MM And And Others

S-240-4 / S-200-3 / S-100-4 / S-90-3 Air Balloons Spring Fit For Crankshaft Punch





S-240-4 / S-200-3 / S-100-4 / S-90-3 can fit for many kinds of Crankshaft Punch.



S-240-4 / S-200-3 / S-100-4 / S-90-3 air spring of the presses is divided into single, double, three, four and five. Punch the air spring mattress made from natural rubber after a series of process of rubber skin, use the making craft of the air spring on the punch than ordinary industrial air spring is much more complex, therefore, the cost will be higher, the price is a natural a lot higher than the other. There are stainless steel rings in the middle, stainless steel ring in the single layer, and a steel ring in the hyperbolic. The S-200-3 ,S-90-3 three curves contain two steel rings, and S-240-4,S-100-4 the fourth one contains three steel rings, and the fifth one contains four steel rings.





Detailed Parameter Table of S-240-4 / S-200-3 / S-100-4 / S-90-3:



GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-240-4 S-240-4 206 316 111 ±80 300
F-200-3 S-200-3 152 232 82 ±53 260
F-100-4 S-100-4 206 296 121 ±60 160
F-90-3 S-90-3 152 222 87 ±45 160



GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-240-4 S-240-4 450 10.1 22.2 235 1.6 0.88 2.9-3.9
F-200-3 S-200-3 315 5.2 15.4 235 2 0.88 2.9-3.9
F-100-4 S-100-4 79 1.95 3.9 59 1.9 0.88 2.9-3.9
F-90-3 S-90-3 79 1.4 3.9 78 2.2 0.88 2.9-3.9





Description about S-240-4 / S-200-3 / S-100-4 / S-90-3 used in Crankshaft Punch equipment:



The power source of the mechanical punch is the motor, which needs to have the transmission mechanism to convert the rotary motion to the reciprocating linear motion of the sliding block, and the punch characteristics will be different depending on the transmission mechanism.



The most common mechanical punch is driven by the crankshaft (with the eccentric shaft), which is also suitable for many different types of processing.

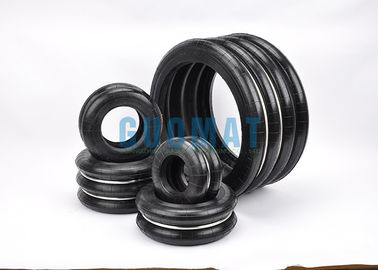

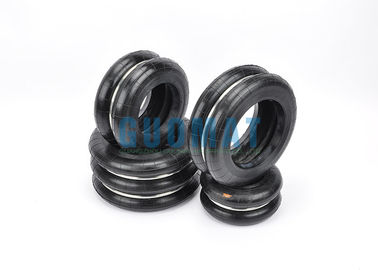

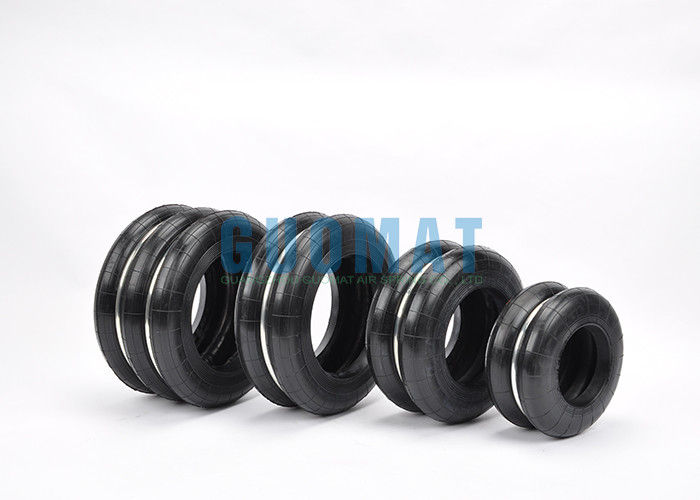

Product detail photos Of S-240-4 / S-200-3 / S-100-4 / S-90-3



S-240-4 / S-200-3 / S-100-4 / S-90-3 Air Balloons Spring For Crankshaft Punch



S-240-4 / S-200-3 / S-100-4 / S-90-3 Air Balloons Spring For Crankshaft PunchS-240-4 / S-200-3 / S-100-4 / S-90-3 Air Balloons Spring For Crankshaft Punch
