| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6910D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Iron/Steel | Firestone Part Number: | W01-358-6910 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 3.5 Kg |
| Other Name: | Air Actuators For Pneumatics | Pressure Ability: | 0.2-0.8 M Pa |
| GUOMAT: | 2B6910D | Gas Hole / Air Inlet: | 1/4 BSP |
| High Light: | convoluted air spring,air helper springs |
||

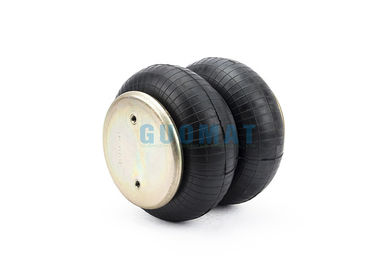

GUOMAT 2B6910D With 1/4 BSP Gas Hole Cross Firestone Part Number W01-358-6910
Specifications and Technical Data of 2B6910D
Just the Gas Hole / Air inlet : 1/4 BSP (BSP =British Standard Pipe) is different with W01-358-6910
other kind Specifications are the same.
Firestone Part Number:W01-358-6910 / W013586910 / W01 358 6910
Compressed Height: 3.12
Top Plate Number:3079
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Piston Number: 3090
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter 224 mm
The Working Stroke : MAX 260 mm to MIN 75 mm
Gas Hole / Air inlet : 1/4 BSP (BSP =British Standard Pipe)
Firestone Bellows Number:20
Goodyear Part Number:2B9-200 / 2B9200 / 2B9 200
Goodyear Bellows Number:578-92-3-202 / 578923202 / 578 92 3 202
Granning Number:1371
Hendrickson Trailer Number:S-8768
Hendrickson Truck Number:45843-3
Ridewell Number:1003586910C
Triangle Part Number:4320
Triangle Bellows Number:6325
Watson & Chalin #:AS-0001
OEM Original Equipment Manufacturer:
| BELLOW Numbers | COMPLETE Numbers |
| CONTITECH FD 20019 S / 895 N | Firestone : W01-358-6910 |
| FIRESTONE FLEX 20 | Contitech : FD 200-19 320 |
| FIRESTONE W01-358-0138 | Goodyear : 2B9-200/202/216 |
| 095-0009 | Hendrickson : S8768/458433 |
| GOODYEAR 2B 9-200 | : 578423202 |
| 578923202 | Triangle: 6325/4320 |
| PHOENIX 2B 12R | Dayton : 3546910 |
| PIRELLI T20 86600 | Leland : Sc2011 |
| AIRKRAFT 114001 | Navistar : 554783C1 |
| GUOMAT 2B6910D | Dina : A812719/AZ812719 |
| SAF Holland : 57006910 | |
| Trailers De : 133128 | |
| Brake & Wheel : M3501 | |
| Ridewell : 1003586910C | |
| Tuthill : 1371 | |
| Watson&Chalin : AS-0001/AS-0156G |
Description Assembly Order No.
Blind nuts, 1/4 NPT W01-358-6910
Blind nuts, 1/4 NPT, bumper W01-358-6911
Blind nuts, 3/4 NPT W01-358-6900
Blind nuts, 3/4 NPT, bumper W01-358-6901
Countersunk steel bead rings,
13/4 bolts, nuts, washers W01-358-6923
Rubber bellows only W01-358-0138
