| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5082 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | GUOMAT: | 1B5082 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 4.0 Kg |
| Other Names: | Flange Air Spring Vibration | Pressure Ability: | 0.2-0.8 M Pa |
| TORPRESS: | 110 | ||
| High Light: | convoluted air spring,air helper springs |
||

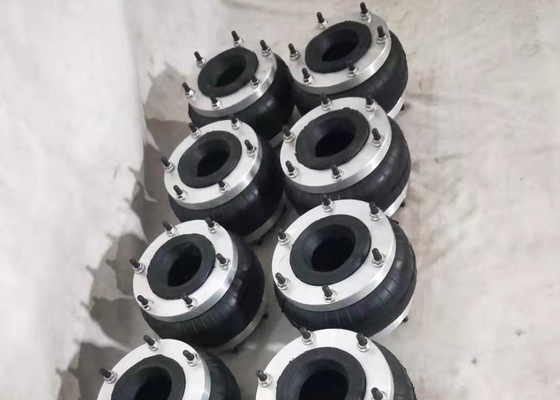

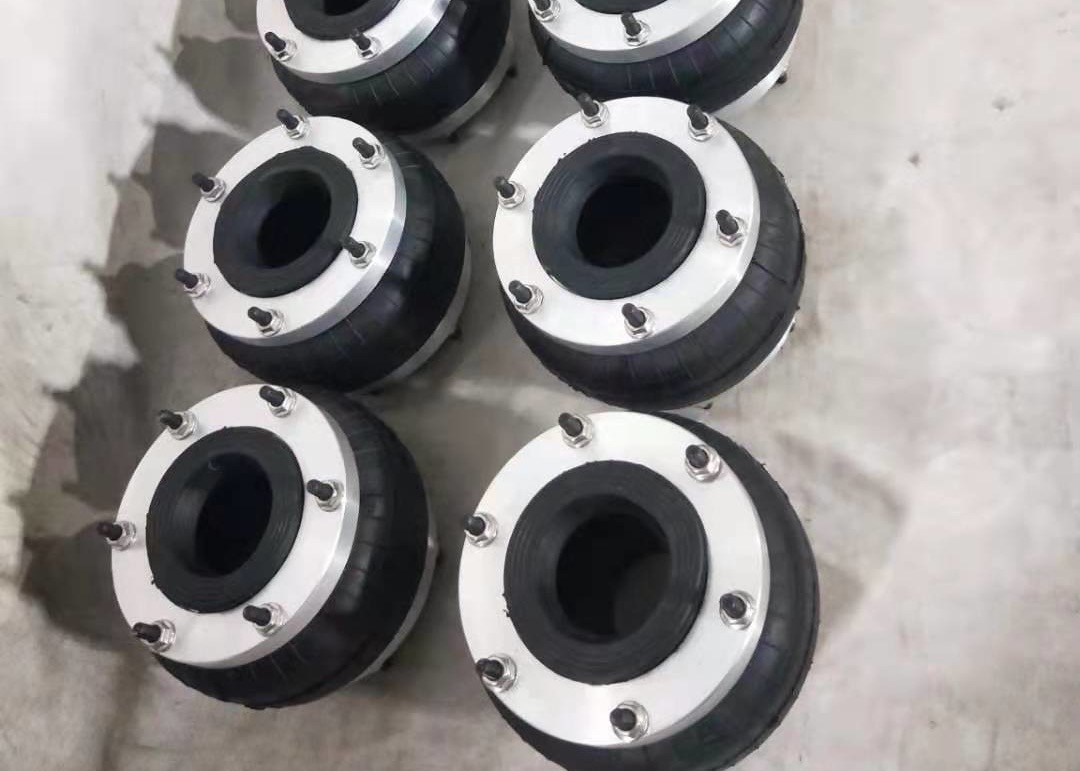

TORPRESS 110 1B5082 To Rubber bellows NO. 1B5082 Flange Connection
Specifications and Technical Data
TORPRESS 110
GUOMAT Part Number:1B5082
Operating Temperature: 57Cº to -54Cº

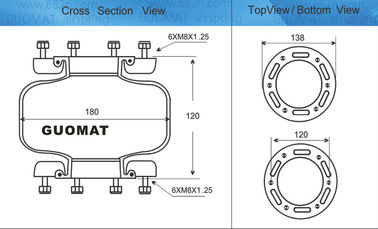

Natural Height: 120mm
Top Cover Plate Diameter: 138mm
Bottom Cover Plate Diameter: 138mm
Distance of the screw:120mm

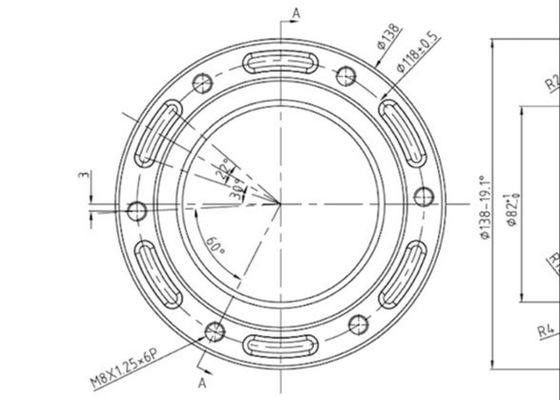

Top Cover Plate Screw (Nut) Tooth :6pcsXM8X1.25
Bottom Cover Plate Screw (Nut) Tooth :6pcsXM8X1.25
The Working Stroke : MAX 200 mm to MIN 80 mm
| MODEL |
STAN- DARD Code
|
HIGH- TEMP Code
|
Connection |
Max OD MM |
Min. Height MM |
Max. Height MM |
Total Travel MM |
Thread Air tion Hole |
Connecting bolts or holes N. |
Connecting bolts or holes Ø |
| 16 | 93029 | 93086 | P1 | 153 | 46 | 91 | 45 | 1/4” NPT | 2 | 3/8” - 16 UNC |
| 131 | 94047 | No | P1 | 165 | 50 | 110 | 60 | 1/4” NPT | 2 | 3/8” - 16 UNC |
| 110 | 93113 | 93114 | P1 | 210 | 51 | 151 | 100 | 1/4” NPT | 2 | 3/8” - 16 UNC |
| 110 | 88540 | 93079 | F1 | 210 | 45 | 145 | No | 6 | M 8 x 1.25 | |
| 110 | 88820 | 89023 | F1 | 210 | 45 | 145 | No | 6 | M 8 x 1.25 | |
| 116 | 93027 | No | P1 | 231 | 46 | 152 | 106 | 1/4” NPT | 2 | 3/8” - 16 UNC |
| 19 | 94016 | 95015 | P2 | 325 | 51 | 151 | 100 | 1/4” NPT | 2 | 3/8” - 16 UNC |
| 19 | 94014 | No | F2 | 325 | 43 | 143 | No | 12 | M8x1 |
|
TORPRESS AIR SPRING BELLOWS ACTUATORS MODEL |
STAN- DARD | HIGH- TEMP | Connec- Max Min. Max. tion OD Height Height |
| Code | Code | mm mm mm | |
| 16 | 93029 | 93086 | P1 153 46 91 |
| 131 | 94047 | ——— | P1 165 50 110 |
| 93113 | 93114 | P1 210 51 151 | |
| 110 | 88540 | 93079 | F1 210 45 145 |
| 88820 | 89023 | F1 210 45 145 | |
| 116 | 93027 | ——— | P1 231 46 152 |
| 94016 | 95015 | P2 325 51 151 | |
| 94014 | ——— | F2 325 43 143 | |
| 23 B | 202665 | ——— | F1 165 65 205 |
| 26 | 84181 | 89422 | F2 220 85 245 |
| 20 | 86600 | 88538 | F2 255 80 265 |
| 245 | 93740 | 202344 | F1 27 82570 85 310 |
| 94091 | ——— | P2 325 88 288 | |
| 88544 | 89425 | F2 325 80 280 | |
| 21 BR | 89457 | ——— | F2 380 80 290 |
| 21A BR | 97300 | ——— | F2 435 85 315 |
| 21B BR | 92154 | ——— | F2 440 85 385 |
| 28 BR | 92527 | ——— | F2 445 80 310 |
| 28 B | 90559 | ——— | F2 485 85 375 |
| 93056 | ——— | P3 570 90 330 | |
| 29 | 93166 | ——— | F2 570 80 320 |
| 31 | 95210 | ——— | F2 700 85 700 |
| 325 | 203332 | ——— | F2 400 80 500 |
| 322 | 92615 | ——— | P4 310 133 408 |
| 879948173 | ——— | F2 310 125 400 | |
| 321 | 88110 | ——— | F2 380 125 400 |
| Style Number | Design Height | Load (at Design Height) at: | Natural Frequency | % of Isolation at Forced Frequency | ||||
| ••40 PSIG (pounds) | 60 PSIG (pounds) | 80 PSIG (pounds) | (@ 80 PSIG) fn(cpm) | 400 CPM % | 800 CPM % | 1500 CPM % | ||
| SINGLE CONVOLUTION | ||||||||
| 16 | 3.0 | 420 | 640 | 880 | 237 | 90.3 | 97.4 | |
| 131 | 3.5 | 550 | 850 | 1,170 | 181 | 74.4 | 94.6 | 98.5 |
| 160 | 5.5 | 650 | 1,010 | 1,390 | 124 | 89.4 | 97.5 | 99.3 |
| 110 | 4.5 | 650 | 1,010 | 1,390 | 162 | 80.2 | 95.7 | 98.8 |
| 116 | 4.5 | 850 | 1,330 | 1,830 | 163 | 80.2 | 95.7 | 98.8 |
| 116-1 | 5.5 | 940 | 1,410 | 1,930 | 139 | 86.3 | 96.9 | 99.1 |
| 115 | 4.5 | 1,210 | 1,880 | 2,540 | 151 | 83.4 | 96.3 | 99.0 |
