| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5502 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | GUOMAT: | 1B5502 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 5.0 Kg |
| Other Names: | Air Lift Spring Shock | Pressure Ability: | 0.2-0.8 M Pa |
| Bellow No.: | 579 913 502 | Goodyear: | 1B5-2 Bellows NO. 579 913 502 |
| High Light: | convoluted air spring,air suspension parts |
||

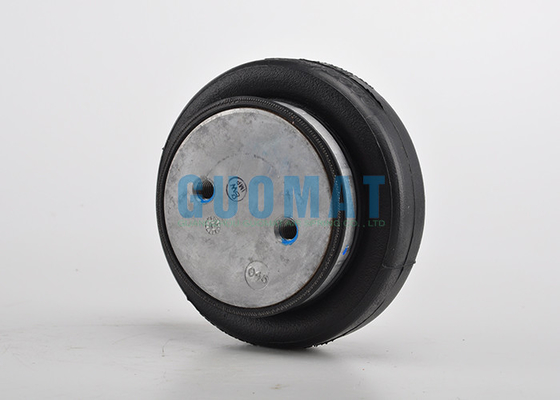

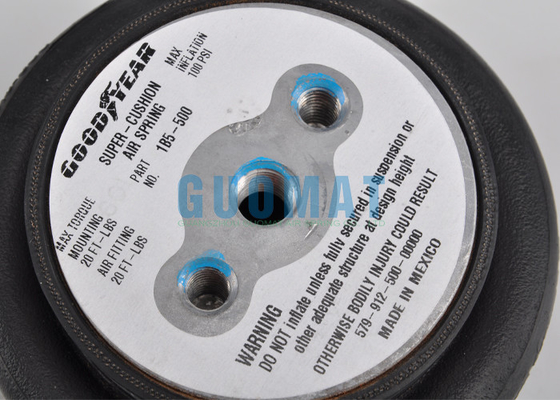

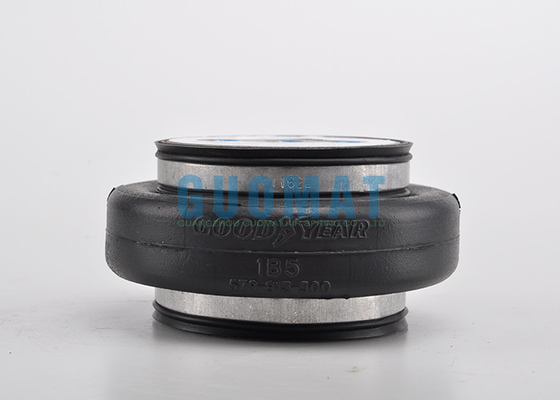

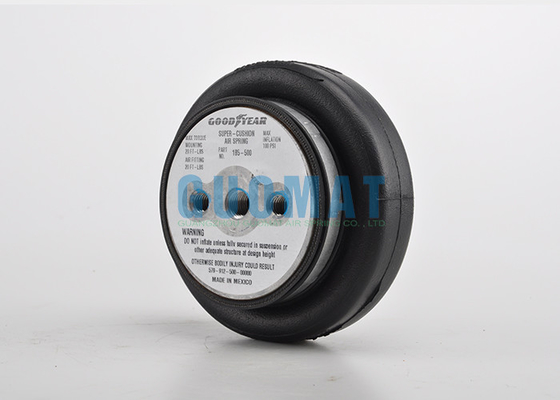

Goodyear 1B5-2 Bellows NO. 579 913 502 GUOMAT 1B5502 Hight Stroke And Small Plale

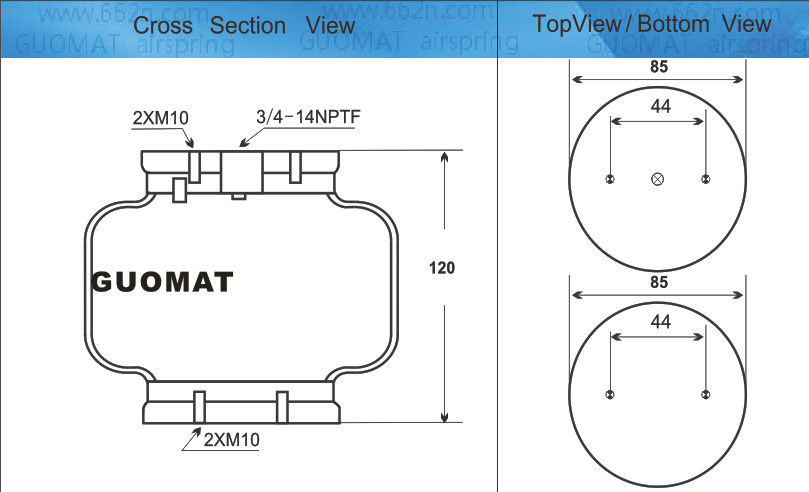

Specifications and Technical Data
GUOMAT Part Number:1B5502
Operating Temperature: 57Cº to -54Cº
Compressed Height: 90mm
Top Cover Plate Diameter: 85mm
Bottom Cover Plate Diameter: 85mm
Distance Gas Hole Between Nut 22 mm
Top Cover Plate Screw (Nut) Tooth :2pcXM10
Bottom Cover Plate Screw (Nut) Tooth : 2pcXM10
The Working Stroke : MAX 120 mm to MIN 60 mm
Gas Hole / Air inlet : 3/4-14NPTF
Other kind of Goodyear air springs we have in stock:
| Goodyear Number | FLEXIBLE MEMBER | Cross number |
| 3B12-304 | 578-93-3-100 |
W01-358-8013 FT 330-29 CI 1/4 NPT OS 3B12-304, 3B12-306
W01-358-8048 FT 430-32 CI 1/4 NPT OS 3B12-304, 3B12-306, 3B12-308
|
| 2B9-200 | 578-92-3-202 | W01-358-6910 FD 200-19 CI 1/4 NPT OS 2B8-155, 2B9-200, 2B9-202 |
| FM8015 | 566-03-8015 | 715N |
| 2B6-535 |
579-92-3-515
|
FD 110-15 766 66094 |
| 1R13-118 |
566-26-3-068
|
W01-358-9580 C20127 W01-358-9262
|
| 1R14-240 |
566-28-3-059
|
No Cross |
| 1R12-541 |
566-24-3-038
|
9 10-16 P 769 64650 |
| 1R14-234 | No Cross | |
| 1R12-1028 |
Air Springs SP SP66 56 56624210285000 20549486 N 1R12-1028 |
|
| 2B9-223 | 578-92-3-211 | No Cross |
| 1B8-850 | 579-913-530 | W01-M58-6166 FS 120-10 CI G 1/4 |
| 2B6-833 | 579-92-3-510 | |
| 1R14-028 |
566-28-3-021
|
W01-358-9177, W01-358-9179 11 10.5-17 A 316, 11 10.5-17 A 366 64342, 64345 |
| 3B12-325 |
578-93-3-103
|
W01-358-8048 |
| 1B8-560 | 1B8-1 579-91-3-532 | W01-358-7598 FS 120-12 CI 1/4 NPT CA 1B8-157, 1B8-159, 1B8-560, 1B8-563 |
| 2B9-273 |
578-92-3-206
|
W01-M58-6183 FD 200-25 CI G 1/4 OS 2B9-273 |
| 1R14-201 | 566-28-3-020 | 11 10.5-21 A 965 67625 |
| 1B14-372 | 578-91-3-351 | W01-M58-6369 FS 530-14 CI G 3/4 OS 1B14-372 |
| 1R12-658 | 566-24-3-067 | 8646一样 |
| 1B6-833 | 579-91-3-510 | W01-M58-6155 FS 70-7 CI G 1/4 CA 1B6-833 |
| 1B12-313 |
578-91-3-301
|
W01-358-7008 FS 330-11 CI 1/4 NPT OS 1B12-300, 1B12-313 |
| 2B14-354 |
578-92-3-353
|
W01-358-7145 FD 530-22 CI 1/4 NPT OS 2B14-350, 2B14-354 |
| 2B8-850 | 579-92-3-530 |
W01-M58-6353 FD 120-20 CI G 1/4 CA 2B8-850
|
| 3B15-375 | 578-93-3-377 | 3B7808一样 W01-358-7808 FT 530-32 CI 1/4 NPT OS 3B14-350, 3B14-354 |
| 1S4-007 |
1S4-007 PISTON ASC-08-7-139 |
|
| 3B12-300 |
578-93-3-100
|
W01-358-8008, W01-358-8025 FT 330-29 431 64562 |
| 1B9-215 | 578-91-3-201 | W01-M58-6374 FS 200-10 CI G 3/4 OS 1B9-215 |
| 3B12-320 | 578-93-3-100 | W01-M58-6129 3B12-320 |
| 2B14-468 | 578-92-3-356 | W01-M58-6377 2B14-468 |
| 1B14-371 |
578-91-3-352 /ASD-91-3-352
|
W01-M58-6100 FS 530-11 CI G 3/4 OS 1B14-371 |
| 1R13-239 |
566-26-3-098
|
9 10-13.5 S 433 64287 |
| 2B12-346 |
578-92-3-315
|
W01 358 7550 / W01 358 7555 FD 331-26 |
| 1R14-235 | No Cross | |
| 2B8-550 |
579-92-3-530
|
W01-358-7325 FD 120-20 CI 1/4 NPT CA 2B8-150, 2B8-153, 2B8-550, 2B8-553, 2B8-554
|
| 2B15-375 |
578-92-3-356
|
W01-358-6800 FD 530-30 CI 1/4 NPT OS 2B14-362, 2B14-450, 2B15-375 |
| 1B12-318 |
578-91-3-301 /ASD-91-3-301
|
W01-M58-6011 FS 330-11 CI G 3/4 OS 1B12-318
|
| 1R13-039 |
566-26-3-051
|
W01-358-9121 10 10-16.5 S 783 64746 |
| 1S8-003 | 579-16-1-002 | No Cross |
| 1B5-800 | 579-91-3-500 | No Cross |
| 1R12-092 |
566-24-3-163
|
W01-358-9082 9 10-16 P 310 64269 |
| 1B15-375 |
W01-358-8158 1B15-375
|
|
| 1B7-544 | 579-91-3-520 | No Cross |
| 1R14-198 |
566-28-3-015
|
11 10.5C-16 A 706 64628 |
| 2B15-377 |
W01-358-9529 FD 530-30 CI 3/4 NPT OS 2B14-363, 2B14-451, 2B15-377, 2B15-378
|
Bulk Goodyear Air spring in stock:
| Part Number | Usable Stroke | Max Dia @ 100 psi In | Min Ext Height Inches | Max Ext Height Inches | Bumper | 100 psi | 80 psi | 60 psi | 40 psi | Air Fitting Size (in) |
| 1B5-500 | 2.0 | 5.7 | 1.8 | 3.8 | NO | 570 | 425 | 290 | 175 | 1/4 |
| 1B5-502 | 2.0 | 5.7 | 1.8 | 3.8 | NO | 570 | 425 | 290 | 175 | 3/4 |
| 1B5-503 | 2.0 | 5.7 | 1.8 | 3.8 | NO | 570 | 425 | 290 | 175 | 1/4 TV |
| IB5-510 | 3.0 | 6.0 | 1.8 | 4.8 | NO | 530 | 390 | 260 | 145 | 1/4 |
| IB5-512 | 3.0 | 6.0 | 1.8 | 4.8 | NO | 530 | 390 | 260 | 145 | 3/4 |
| 1B5-520 | 4.0 | 6.5 | 1.8 | 5.8 | NO | 445 | 305 | 180 | 80 | 1/4 |
| 1B5-521 | 4.0 | 6.5 | 1.8 | 5.8 | NO | 445 | 305 | 180 | 80 | 3/4 |
| 1B6-530 | 3.0 | 6.5 | 1.8 | 4.8 | NO | 880 | 635 | 440 | 235 | 1/4 |
| 1B6-531 | 3.0 | 6.5 | 1.8 | 4.8 | NO | 880 | 635 | 440 | 235 | 1/4 OS |
| 1B6-532 | 2.5 | 6.5 | 2.3 | 4.8 | YES | 880 | 635 | 440 | 235 | 1/4 OS |
| 1B6-535 | 5.3 | 7.0 | 1.8 | 7.1 | NO | 780 | 510 | 320 | 165 | 1/4 |
| 1B6-536 | 5.3 | 7.0 | 1.8 | 7.1 | NO | 780 | 510 | 320 | 165 | 1/4OS |
| 1B6-538 | 4.8 | 7.0 | 2.3 | 7.1 | YES | 780 | 510 | 320 | 165 | 1/4 OS |
| 1B7-540 | 3.8 | 7.7 | 1.8 | 5.6 | NO | 445 | 290 | 130 | 30 | 1/4 |
| 1B7-541 | 3.8 | 7.7 | 1.8 | 5.6 | NO | 445 | 290 | 130 | 30 | 1/4 OS |
| 1B7-542 | 3.3 | 7.7 | 2.3 | 5.6 | YES | 445 | 290 | 130 | 30 | 1/4 OS |
| 1B8-550 | 3.8 | 8.7 | 1.8 | 5.6 | NO | 815 | 525 | 315 | 110 | 1/4 |
| 1B8-551 | 3.8 | 8.7 | 1.8 | 5.6 | NO | 815 | 525 | 315 | 110 | 1/2 |
| 1B8-552 | 3.8 | 8.7 | 1.8 | 5.6 | NO | 815 | 525 | 315 | 110 | 3/4 |
| 1B8-553 | 3.8 | 8.7 | 1.8 | 5.6 | NO | 815 | 525 | 315 | 110 | 1/4 OS |
| 1B8-554 | 3.3 | 8.7 | 2.3 | 5.6 | YES | 815 | 525 | 315 | 110 | 1/4 OS |
| 1B8-560 | 5.5 | 9.4 | 1.8 | 7.3 | NO | 1105 | 750 | 750 | 130 | 1/4 |
| 1B8-562 | 5.5 | 9.4 | 1.8 | 7.3 | NO | 1105 | 750 | 750 | 130 | 3/4 |
| 1B8-563 | 5.5 | 9.4 | 1.8 | 7.3 | NO | 1105 | 750 | 750 | 130 | 1/4 OS |
| 1B8-564 | 5.0 | 9.4 | 2.3 | 7.3 | YES | 1105 | 750 | 750 | 130 | 1/4 OS |
| 1B9-201 | 2.7 | 11.0 | 3.2 | 5.9 | YES | 1575 | 1215 | 875 | 560 | 1/4 OS |
| 1B9-202 | 3.6 | 11.0 | 2.3 | 5.9 | N0 | 1575 | 1215 | 875 | 560 | 1/4 OS |
| 1B9-204 | 3.6 | 11.0 | 2.3 | 5.9 | N0 | 1575 | 1215 | 875 | 560 | 1/2 OS |
| 1B9-205 | 2.7 | 11.0 | 3.2 | 5.9 | YES | 1575 | 1215 | 875 | 560 | 1/2 OS |
| 1B9-207 | 3.6 | 11.0 | 2.3 | 5.9 | N0 | 1575 | 1215 | 875 | 560 | 3/4 OS |
| 1B9-208 | 2.7 | 11.0 | 3.2 | 5.9 | YES | 1575 | 1215 | 875 | 560 | 3/4 OS |
| 1B12-301 | 13.2 | 4.6 | 2.6 | 7.2 | YES | 3640 | 2710 | 1840 | 1095 | 1/4 OS |
| 1B12-30 | 13.2 | 4.9 | 2.3 | 7.2 | NO | 3640 | 2710 | 1840 | 1095 | 3/4 OS |
