| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6890 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | GUOMAT: | 2B6890 |
|---|---|---|---|
| Warranty: | 1 Year | Weight: | 5.0 Kg |
| Other Names: | Double Convoluted Spring | Pressure Ability: | 0.2-0.8 M Pa |
| Contitech: | FD 200-19 539 | Firestone: | W01-358-6890 |
| Goodyear: | 2B9-606 | ||
| High Light: | convoluted air spring,air suspension parts |
||
Contitech FD 200-19 539 Firestone W01-358-6890 Goodyear 2B9-606 Bellows NO. 578923211

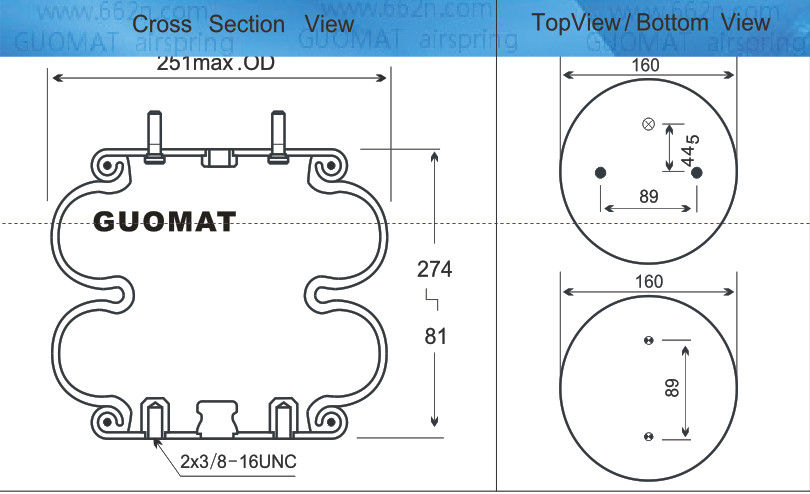

Specifications and Technical Data
GUOMAT Part Number:1B6890
Operating Temperature: 57Cº to -54Cº
Compressed Height:81mm
Top Cover Plate Diameter: 160mm
Bottom Cover Plate Diameter: 160mm
Distance Gas Hole Between Nut: 44.5 mm
Top Cover Plate Screw (Nut) Tooth :2pcX3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcX3/8-16UNC
The Working Stroke : MAX 274 mm to MIN 81 mm
Gas Hole / Air inlet : 1/4NPTF
Firestone W01-358-6890 OEM Cross:
Firestone : W01-358-6890
Firestone : W01 358 6890
Firestone : W013586890
Firestone :20
Contitech : FD 200-19 539
Contitech : FD20019 539
Contitech : FD 200 19 539
Goodyear: 2B9-606
Goodyear: 2B9 606
Goodyear: 2B9606
Goodyear:: 578923211
Goodyear:: 578-92-3-211
Goodyear:: 578 92 3 211
Neway: 90557228
Euclid/Meritor After market E-FS6890
Note: V-Steer I (lift Bag)
| Compressed Height: | 79 CM |
| Top Plate Number: | 3101 |
| Top Plate Width: | 160 CM |
| Piston Number: | 3090 |
| Piston Width: | 160 CM |
| Firestone Bellows Number: | 20 |
| Holland (Neway) Number: | 905-57-228 |
| Note: | V-Steer I (Lift Bag) |
Firestone W01-358-6890 Detail Data:
| Size | 250 mm |
| Required installation Ø | 265 mm |
| Stroke | 185 mm |
| Max. height, advanced | 275 mm |
| Max. angle of inclination | 25 deg |
| Max. offset | 20 mm |
| Min. installation height | 75 mm |
| Type code | EB |
| Mode of operation | Single-acting |
| Symbol | 991205 |
| Operating pressure | 0 bar ;1 bar;2 bar;3 bar;4 bar;5 bar;6 bar;7 bar;8 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2-Moderate corrosion stress |
| Ambient temperature | -40 °C ... 70 °C |
| Resetting force | 200 N |
| Product weight | 3000 g |
| Type of mounting | With internal thread |
| Pneumatic connection | 1/4 |
| Note on materials |
RoHS-compliant Free of copper and PTFE |
| Bellows material | NR/BR |
| Housing material |
Galvanized Steel |
