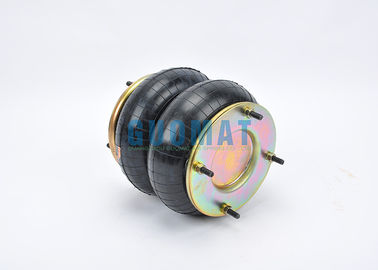

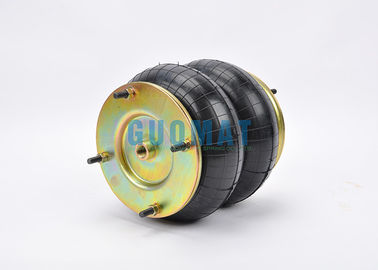

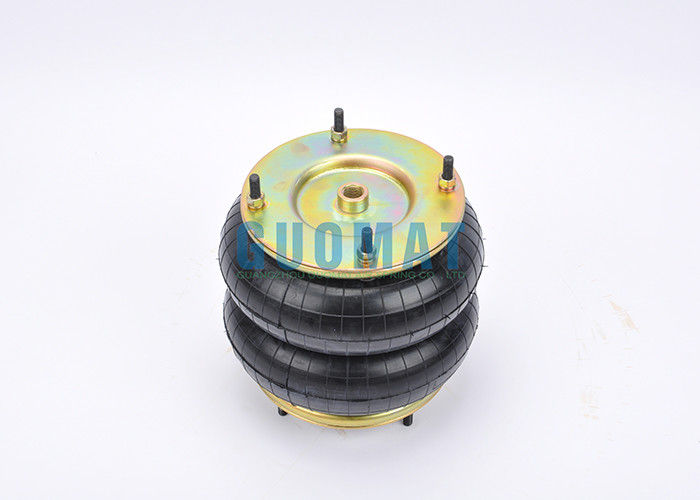

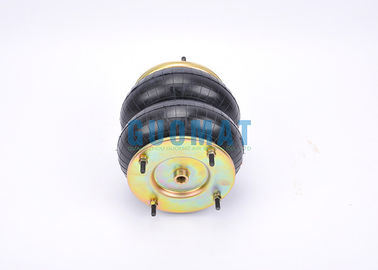

Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment

Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment

  • Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment
  • Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment
  • Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment
  • Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment
  • Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment
Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B4090
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows GUOMAT NO.: 2B4090
Bellows NO .: Springride DF 8 X 2 Firestone: W01R584090
Plate Dia.: 153.5mm Max Dia.: 175mm
Pressure Ability: 0.2-0.8 MPa Air Inlet: G1/2
Stroke: 115mm
High Light:

convoluted air spring

,

air helper springs

Firestone W01-R58-4090 8"x2 Rubber Material Bellows For Paper making Equipment

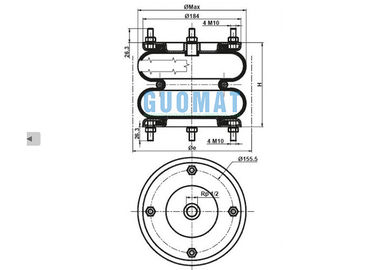

Specifications and Detail Technical Parameters:Style 8" x2



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :  4pcs X M10



Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2



Cover Plate

Top Cover Plate Diameter (Width): 184 mm



Bottom Cover Plate Diameter (Width): 184 mm



Material top and bottom plate:Steel



Rubber Bellows

Diameter max at 7 bar:225MM



Stroke of Rubber Bellows:75mm-225m



Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop



max force at stroke 25 mm and 5 bar 12,3 kN
Rubber material Standard up to 70°C natural rubber



Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment 0Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment 1Firestone W01-R58-4090 8" x 2 Rubber Bellow For Paper Making Equipment 2



Other kinds of model air bellows:



W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)

Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1
