| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | MB-100-4 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Stainless Steel Crimp, Rubber | Yokohama: | M-100-4 |
|---|---|---|---|
| GUOMAT: | MB-100-4 | Layer Number: | 4 Convolutions |
| Vibration Frequency: | 1.8 Hz | Maximum Internal Pressure: | 0.69 M Pa |
| Net Weight: | 5.5 KG And Others | Packing Size: | 16*16*20 Cm |
| Natural Width: | 160 MM And And Others | ||
| High Light: | triple convoluted air spring,double convoluted air spring |
||

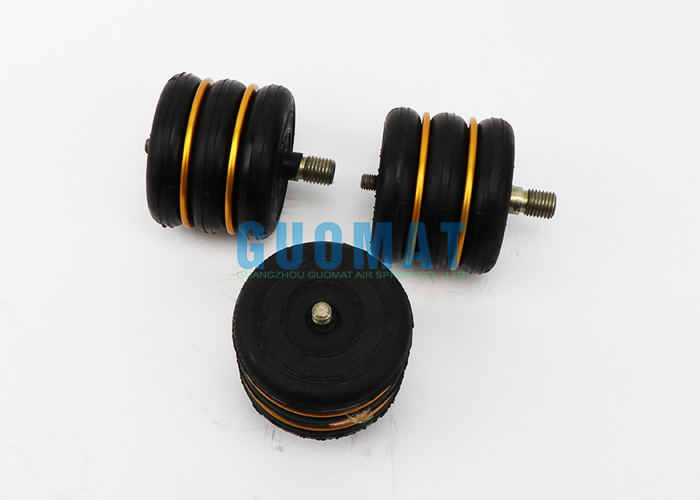

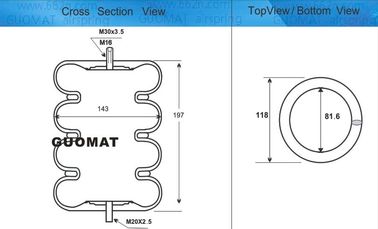

M-100-4 Air Spring Rubber Cushion For Punch ／Paper Making Equipment
M-100-4 can fit for many kinds of Punch ／Paper Making Equipment
M-100-4 air spring of the presses is divided into single, double, three, four and five. Punch the air spring mattress made from natural rubber after a series of process of rubber skin, use the making craft of the air spring on the punch than ordinary industrial air spring is much more complex, therefore, the cost will be higher, the price is a natural a lot higher than the other. There are stainless steel rings in the middle, stainless steel ring in the single layer, and a steel ring in the hyperbolic. The M-100-4 three curves contain two steel rings, and M-100-4 the fourth one contains three steel rings, and the fifth one contains four steel rings.
Detailed Parameter Table of M-100-4:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| MB-100-4 | M-100-4 | 206 | 296 | 121 | ±60 | 160 |
| MB-100-3 | M-100-3 | 152 | 222 | 87 | ±45 | 160 |
| MB-100-2 | M-100-2 | 98 | 143 | 58 | ±30 | 160 |
| MB-90-3 | M-90-3 | 152 | 222 | 87 | ±45 | 160 |
| MB-90-2 | M-90-2 | 98 | 143 | 58 | ±30 | 160 |
| MB-90-1 | M-90-1 | 76 | 106 | 46 | ±30 | 125 |
| MB-60-4 | M-60-4 | 103 | 139 | 67 | ±36 | 90 |
| MB60-3 | M-60-3 | 76 | 103 | 49 | ±27 | 90 |
| MB-60-2 | M-60-2 | 49 | 67 | 31 | ±18 | 90 |
| MB-50-3 | M-50-3 | 61 | 81 | 41 | ±20 | 75 |
| MB-50-2 | M-50-2 | 39 | 52 | 26 | ±13 | 75 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| MB-100-4 | M-100-4 | 79 | 1.95 | 3.9 | 59 | 1.9 | 0.88 | 2.9-3.9 |
| MB-100-3 | M-100-3 | 79 | 1.4 | 3.9 | 87 | 2.3 | 0.88 | 2.9-3.9 |
| MB-100-2 | M-100-2 | 79 | 0.85 | 3.9 | 123 | 2.9 | 0.88 | 2.9-3.9 |
| MB-90-3 | M-90-3 | 63.5 | 1.4 | 3.1 | 78 | 2.2 | 0.88 | 2.9-3.9 |
| MB-90-2 | M-90-2 | 63.5 | 0.85 | 3.1 | 118 | 2.7 | 0.88 | 2.9-3.9 |
| MB-90-1 | M-90-1 | 63.5 | 0.5 | 3.1 | 103 | 2.9 | 0.88 | 3.9-4.9 |
| MB-60-4 | M-60-4 | 28.3 | 0.28 | 1.4 | 78.5 | 2.2 | 0.88 | 2.9-3.9 |
| MB60-3 | M-60-3 | 28.3 | 0.2 | 1.4 | 49 | 2.7 | 0.88 | 2.9-3.9 |
| MB-60-2 | M-60-2 | 28.3 | 0.14 | 1.4 | 34.5 | 2.9 | 0.88 | 3.9-4.9 |
| MB-50-3 | M-50-3 | 19.6 | 0.08 | 0.96 | 65 | 2.2 | 0.88 | 2.9-3.9 |
| MB-50-2 | M-50-2 | 19.6 | 0.04 | 0.96 | 40 | 2.7 | 0.88 | 2.9-3.9 |
Description about M-100-4 used in Punch ／Paper Making Equipment:
The power source of the mechanical punch is the motor, which needs to have the transmission mechanism to convert the rotary motion to the reciprocating linear motion of the sliding block, and the punch characteristics will be different depending on the transmission mechanism.
The most common mechanical punch is driven by the crankshaft (with the eccentric shaft), which is also suitable for many different types of processing.
Other kinds of MB model kinds air spring:
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| MB-600-1 | M-600-1 | 2830 | 19 | 138.3 | 4197 | 2.8 | 0.69 | 3.9-4.9 |
| MB-600-2 | M-600-2 | 2830 | 26.3 | 138.3 | 2873 | 2.3 | 0.69 | 3.9-4.9 |
| MB-600-3 | M-600-3 | 2830 | 43.2 | 138.3 | 1765 | 1.8 | 0.69 | 3.9-4.9 |
| MB-600-4 | M-600-4 | 2830 | 59.9 | 138.3 | 1285 | 1.5 | 0.69 | 3.9-4.9 |
| MB-600-5 | M-600-5 | 2830 | 76.6 | 138.3 | 1010 | 1.3 | 0.69 | 3.9-4.9 |
| MB-550-2 | M-550-2 | 2380 | 23 | 116.7 | 2363 | 2.2 | 0.69 | 3.9-4.9 |
| MB-550-3 | M-550-3 | 2380 | 37 | 116.7 | 1481 | 1.8 | 0.69 | 3.9-4.9 |
| MB-500-2 | M-500-2 | 1965 | 18.5 | 96.3 | 2020 | 2.3 | 0.69 | 3.9-4.9 |
| MB-500-3 | M-500-3 | 1965 | 30.3 | 96.3 | 1255 | 1.8 | 0.69 | 3.9-4.9 |
| MB-500-4 | M-500-4 | 1965 | 41.9 | 96.3 | 912 | 1.5 | 0.69 | 3.9-4.9 |
| MB-500-5 | M-500-5 | 1965 | 54 | 96.3 | 706 | 1.4 | 0.69 | 3.9-4.9 |
| MB-450-1 | M-450-1 | 1590 | 11.9 | 80 | 2295 | 2.7 | 0.69 | 2.9-3.9 |
| MB-450-2 | M-450-2 | 1590 | 14.7 | 80 | 1687 | 2.3 | 0.69 | 3.9-4.9 |
| MB-450-3 | M-450-3 | 1590 | 24.3 | 80 | 1040 | 1.8 | 0.69 | 3.9-4.9 |
| MB-450-4 | M-450-4 | 1590 | 33.8 | 80 | 755 | 1.6 | 0.69 | 3.9-4.9 |
| MB-450-5 | M-450-5 | 1590 | 43.6 | 80 | 588 | 1.4 | 0.69 | 3.9-4.9 |
| MB-400-2 | M-400-2 | 1260 | 11.9 | 61.6 | 1344 | 2.3 | 0.69 | 2.9-3.9 |
| MB-400-3 | M-400-3 | 1260 | 19.5 | 61.6 | 834 | 1.8 | 0.69 | 3.9-4.9 |
| MB-400-4 | M-400-4 | 1260 | 27.1 | 61.6 | 608 | 1.6 | 0.69 | 3.9-4.9 |
| MB-400-5 | M-400-5 | 1260 | 34.5 | 61.6 | 481 | 1.4 | 0.69 | 3.9-4.9 |
| MB-350-1 | M-350-1 | 960 | 6.9 | 47.1 | 1520 | 2.8 | 0.69 | 2.9-3.9 |
| MB-350-2 | M-350-2 | 960 | 9.5 | 47.1 | 1040 | 2.3 | 0.88 | 3.9-4.9 |
| MB-350-3 | M-350-3 | 960 | 15 | 47.1 | 647 | 1.8 | 0.88 | 3.9-4.9 |
| MB-350-4 | M-350-4 | 960 | 21 | 47.1 | 471 | 1.6 | 0.88 | 3.9-4.9 |
| MB-300-1 | M-300-1 | 710 | 5.6 | 34.7 | 1180 | 2.8 | 0.69 | 2.9-3.9 |
| MB-300-2 | M-300-2 | 710 | 7.4 | 34.7 | 745 | 2.3 | 0.88 | 3.9-4.9 |
| MB-300-3 | M-300-3 | 710 | 11.2 | 34.7 | 490 | 1.9 | 0.88 | 3.9-4.9 |
| MB-300-4 | M-300-4 | 710 | 15.5 | 34.7 | 324 | 1.5 | 0.88 | 3.9-4.9 |
| MB-240-4 | M-240-4 | 450 | 10.1 | 22.2 | 235 | 1.6 | 0.88 | 2.9-3.9 |
| MB-240-3 | M-240-3 | 450 | 7.3 | 22.2 | 324 | 1.9 | 0.88 | 2.9-3.9 |
| MB-240-2 | M-240-2 | 450 | 4.4 | 22.2 | 520 | 2.4 | 0.88 | 2.9-3.9 |
| MB-240-1 | M-240-1 | 450 | 3.5 | 22.2 | 765 | 2.9 | 0.69 | 2.9-3.9 |
| MB-220-4 | M-220-4 | 380 | 8.6 | 18.6 | 206 | 1.7 | 0.88 | 2.9-3.9 |
| MB-220-3 | M-220-3 | 380 | 6.1 | 18.6 | 284 | 1.9 | 0.88 | 2.9-3.9 |
| MB-220-2 | M-220-2 | 380 | 3.7 | 18.6 | 451 | 2.5 | 0.88 | 2.9-3.9 |
| MB-200-2 | M-200-2 | 315 | 3.2 | 15.4 | 373 | 2.5 | 0.88 | 2.9-3.9 |
| MB-200-3 | M-200-3 | 315 | 5.2 | 15.4 | 235 | 2 | 0.88 | 2.9-3.9 |
| MB-200-4 | M-200-4 | 315 | 7.2 | 15.4 | 177 | 1.7 | 0.88 | 2.9-3.9 |
| MB-160-1 | M-160-1 | 200 | 1.9 | 9.8 | 636 | 3 | 0.69 | 2.9-3.9 |
| MB-160-2 | M-160-2 | 200 | 2.1 | 9.8 | 255 | 2.5 | 0.88 | 2.9-3.9 |
| MB-160-3 | M-160-3 | 200 | 3.4 | 9.8 | 157 | 2 | 0.88 | 2.9-3.9 |
| MB-160-4 | M-160-4 | 200 | 4.7 | 9.8 | 118 | 1.7 | 0.88 | 2.9-3.9 |
| MB-120-4 | M-120-4 | 113 | 3.4 | 5.2 | 69 | 1.8 | 0.88 | 2.9-3.9 |
| MB-120-3 | M-120-3 | 113 | 2.1 | 5.2 | 98 | 2.2 | 0.88 | 2.9-3.9 |
| MB-120-2 | M-120-2 | 113 | 1.25 | 5.2 | 157 | 2.7 | 0.88 | 2.9-3.9 |
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| MB-600-1 | M-600-1 | 72 | 122 | 40 | ±30 | 700 |
| MB-600-2 | M-600-2 | 102 | 172 | 57 | ±45 | 660 |
| MB-600-3 | M-600-3 | 160 | 270 | 90 | ±68 | 660 |
| MB-600-4 | M-600-4 | 218 | 363 | 123 | ±90 | 660 |
| MB-600-5 | M-600-5 | 276 | 456 | 156 | ±113 | 660 |
| MB-550-2 | M-550-2 | 102 | 172 | 50 | ±45 | 610 |
| MB-550-3 | M-550-3 | 160 | 270 | 90 | ±68 | 610 |
| MB-500-2 | M-500-2 | 102 | 172 | 57 | ±45 | 560 |
| MB-500-3 | M-500-3 | 160 | 270 | 90 | ±68 | 560 |
| MB-500-4 | M-500-4 | 218 | 363 | 123 | ±90 | 560 |
| MB-500-5 | M-500-5 | 276 | 456 | 156 | ±113 | 560 |
| MB-450-1 | M-450-1 | 72 | 117 | 40 | ±30 | 510 |
| MB-450-2 | M-450-2 | 102 | 172 | 57 | ±45 | 510 |
| MB-450-3 | M-450-3 | 160 | 270 | 90 | ±68 | 510 |
| MB-450-4 | M-450-4 | 218 | 363 | 123 | ±90 | 510 |
| MB-450-5 | M-450-5 | 276 | 456 | 156 | ±113 | 510 |
| MB-400-2 | M-400-2 | 102 | 167 | 57 | ±45 | 460 |
| MB-400-3 | M-400-3 | 160 | 260 | 90 | ±68 | 460 |
| MB-400-4 | M-400-4 | 218 | 348 | 123 | ±90 | 460 |
| MB-400-5 | M-400-5 | 276 | 435 | 156 | ±113 | 460 |
| MB-350-1 | M-350-1 | 72 | 117 | 40 | ±30 | 450 |
| MB-350-2 | M-350-2 | 102 | 160 | 55 | ±42 | 410 |
| MB-350-3 | M-350-3 | 160 | 250 | 85 | ±65 | 410 |
| MB-350-4 | M-350-4 | 218 | 336 | 118 | ±85 | 410 |
| MB-300-1 | M-300-1 | 72 | 117 | 40 | ±30 | 400 |
| MB-300-2 | M-300-2 | 98 | 158 | 53 | ±40 | 360 |
| MB-300-3 | M-300-3 | 152 | 242 | 82 | ±60 | 360 |
| MB-300-4 | M-300-4 | 206 | 326 | 111 | ±80 | 360 |
| MB-240-4 | M-240-4 | 206 | 316 | 111 | ±80 | 300 |
| MB-240-3 | M-240-3 | 152 | 232 | 82 | ±60 | 300 |
| MB-240-2 | M-240-2 | 98 | 148 | 53 | ±40 | 300 |
| MB-240-1 | M-240-1 | 72 | 110 | 40 | ±30 | 340 |
| MB-220-4 | M-220-4 | 206 | 311 | 111 | ±80 | 280 |
| MB-220-3 | M-220-3 | 152 | 232 | 82 | ±60 | 280 |
| MB-220-2 | M-220-2 | 98 | 148 | 53 | ±40 | 280 |
| MB-200-2 | M-200-2 | 98 | 148 | 53 | ±35 | 260 |
| MB-200-3 | M-200-3 | 152 | 232 | 82 | ±53 | 260 |
| MB-200-4 | M-200-4 | 206 | 311 | 111 | ±70 | 260 |
| MB-160-1 | M-160-1 | 72 | 102 | 40 | ±25 | 220 |
| MB-160-2 | M-160-2 | 98 | 148 | 53 | ±35 | 220 |
| MB-160-3 | M-160-3 | 152 | 227 | 82 | ±53 | 220 |
| MB-160-4 | M-160-4 | 206 | 306 | 111 | ±70 | 220 |
