Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B7472 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W013587472 |
---|---|---|---|
Contitech: | FD 330-30-371 | GoodYear Bellows#: | 578-92-3-310 |
Gas Hole / Air Inlet: | 1/4-18NPT , Combination Stud/Air Inlet Stud | Cover Plate Diameter (Width): | 224.5 Mm / 9.00 Inches |
Compressed Height: | 104 Mm / 4.1 Inches | Bottom Cover Plate Screw (Nut) Tooth: | 2 Pcs X 3/8-16UNC |
High Light: | air helper springs,air suspension parts |
W013587472 Firestone Goodyear Part Number 2B12-434 Firestone Bellows Number 228CT-1.5

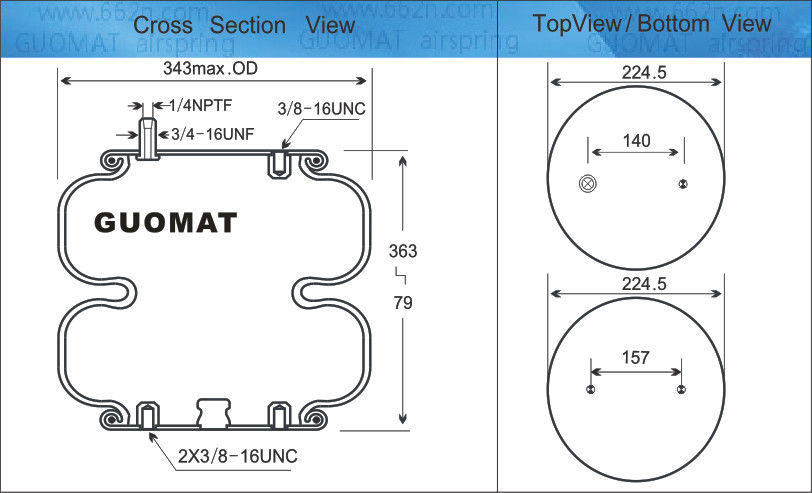

Product parameters:
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/8-13UNC
Top Cover Plate Combination Nut : 3/4-16UNF
Screw Center Distance of Top Cover Plate : 140 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 2X3/8--13UNC
Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPT , Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches
❹Rubber Bellows
Rubber Bellows MAX Diameter : 343 mm / 9.7 inches
Compressed Height: 104 mm / 4.1 inches
Maximum Height: 363mm / 14.3 inches
Working Stroke : 259 mm / 10.2 inches
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Compressed height: 3.12 inches
Number of top plates: 3210
Top plate width: 9.00 inches
Number of pistons: 3212 or 3183
Piston width: 9.00 inches
Firestone Corrugated Tube Number: 228CT-1.5
Goodyear part number: 2B12-434
Goodyear Bellows Number: 578-92-3-310
Hendrickson Canada Number: B-12514-005
Hendrickson Trailer No.: S-12335
Triangle part number: 4371
Triangle bellows number: 6328
Note: Replace W01-358-7404
Assembly Weight: 13.4 lbs
Design Height: 9-11 inches
Minimum Jounce Height: 3.55 inches
Loading Capacity at 20 psig: 1,240 lbsf
Loading Capacity at 60 psig: 3,720 lbsf
Loading Capacity at 90 psig: 5,580 lbsf
Operating Temperature: 57Cº to -54Cº
OEM reference | Number | Manufacturer Reference | Number |
Firestone Bellows Number | 228CT-1.5 | Hendrickson part number | B12514-005 |
Firestone part number | W01-358-7404 | Hendrickson part number | Ha100095 |
Firestone part number | W01-358-7472 | Hendrickson part number | S12335 |
Contitech | FD 330-30-371 | Hendrickson part number | Na1825 |
Goodyear Bellows Number | 578923310 | Navistar | 1681751C1 |
Goodyear part number | 2B12-434 | Watson&Chalin | As0112 |
SAF Holland | 57007472 | ||
Triangle part number | 6328 | ||
Triangle Bellows Number | 4371 |
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
