| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B9252 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 2B9-252 / 2B9 252 / 2B9252 |
|---|---|---|---|
| GUOMAT: | 2B9252 | Firestone: | W01-M58-6891 |
| Air Inlet: | M14X1.5 | Cover Plate Diameter (Width): | 160 Mm |
| Rubber Bellows Natural Diameter: | 232.5 Mm | Rubber Bellows Natural Height: | 232 Mm |
| Screw (Nut) Tooth: | M10X1.5 Cm | ||
| High Light: | air helper springs,air suspension parts |
||

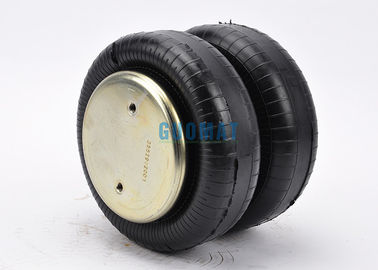

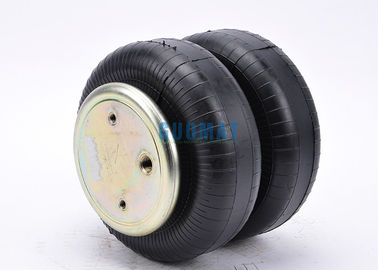

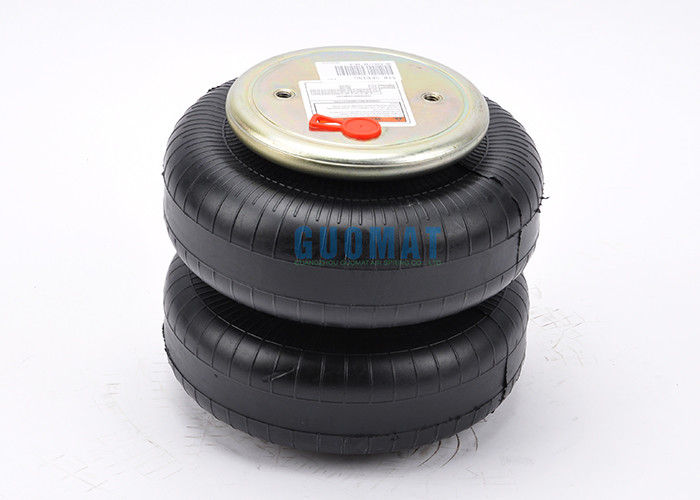

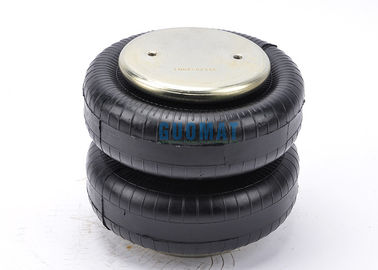

2B9-252 Goodyear Air Spring Bags Industrial Air Spring For Commercial Applications
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.5
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M10X1.5
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : M14X1.5
Center Distance Between Nut and Air inlet: 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 232.5 mm
Rubber Bellows Natural Height : 232 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Description:
This is a bellows style GUOMAT air spring. GUOMAT NO. 2B9252 Bellows air springs have two windings in a flexible member. Such double-turn airbags are commonly used in lift springs or axles for trucks and trailers, as pneumatic springs, and as actuators or insulators in industrial and commercial applications. The specifications of the 2B9252 will vary, but the double-curved Goodyear bag has a crimp design and a sleeve bellows. They will provide similar features and functions, but the sleeve type permanently connects the end retainers by clamping the flexible member between the end retainer and the outer crimp ring.
Specifications:
Roof hole/stud: 2
Floor hole / stud: 2
Roof diameter: 6.4
Base plate diameter: 6.4
Collapsed height: 3.8
Comparison number of other suppliers:
Flexmember: 578-92-3-206 / 578923206 /578 92 3 206
Goodyear Trimmed: 2B9252 / 2B9-252 / 2B9 252
Triangle Spring: 4454
Firestone: 6944
Grande: 7639
Histeer - Link Mfg. :10307
Conti Tech: 64512
Suspensions Inc. :200118
Batco: 10-96944
UCF / Impex: AB-2B9-252
T.W. Distribution: AB6944
Automann: ABSP2B12RA-6944
Dallas Spring: AS6944
Midland / Haldex: CS209252
Euclid / Meritor Aftermarket: E-FS6944
Conti Tech: FD200-25454
Euclid / Meritor aftermarket: FS6944
BWP: M-3559
Leland: SC2124
SCANIA 1387283
Package size and weight:
| Net Weight | Gross Weight | Length (cm) |
Width (cm) |
Height (cm) |
Measurememt (cbm) |
| 3.92 | 9.9 | 24 | 24 | 24 | 0.014 |
2 pieces in one carton.
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
