| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B12300 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Firestone: | W01-358-7424 / W01 358 7424 / W013587424 |
|---|---|---|---|
| Goodyear: | 2B12-426 / 2B12 426 / 2B12426 | Product Description Bellows Number: | 578923309 |
| Contitech: | FD 330-22 327 /FD330 22 327 | VOL-VO: | 3130504 |
| Watson & Chalin #: | AS-0009 | Triangle Part Number: | 4327 |
| Air Inlet: | 1/4NPT | ||
| High Light: | air helper springs,air suspension parts |
||

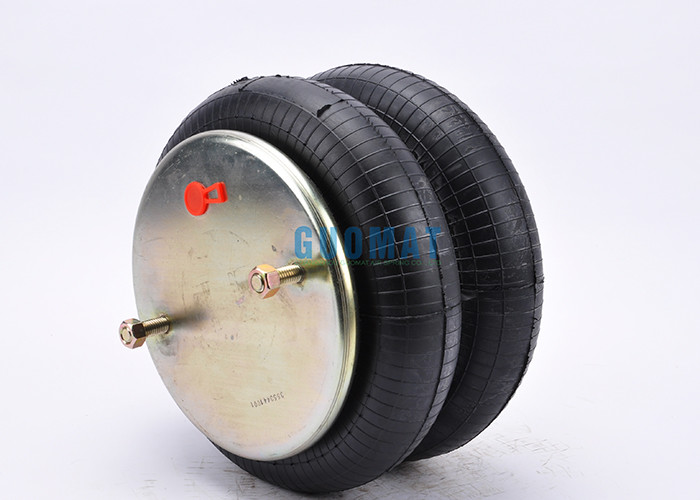

2B12-300 Goodyear Air Spring Double Convoluted Air Lift Bags Bellows Number 578923309
Product parameters:
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between air inlet and Nut : 73 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 231 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 231 mm / 9.00 inches
Threaded Hole : 3/8-16
❹Rubber Bellows
Rubber Bellows Natural Diameter : 298 mm / 11.7 inches
Rubber Bellows MAX Diameter : 325 mm / 12.9 inches
Compressed Height: 81 mm / 4.12 inches
Minimum Jounce Height: 81mm / 4.12 inches
Design Height: 203 mm-241mm / 8-9.5 inches
Maximum Height: 305 mm / 12 inches
Bellows # NO.: 22
Working Stroke : 224 mm / 8.8 inches
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Product Description:
This is the GUOMAT air spring from AIR SPRING. The bellows air spring has one, two or three windings in the flexible member. Such double-turn airbags are commonly used in lift springs or axles for trucks and trailers, as pneumatic springs, and as actuators or insulators in industrial and commercial applications. The specifications of the 2B12-300 will vary, but the double-curved Goodyear bag has a crimp design and a sleeve bellows. They will provide similar features and functions, but the sleeve type permanently connects the end retainers by clamping the flexible member between the end retainer and the outer crimp ring.
glasses
Roof hole/stud: 3
Base plate hole / stud: 2
Roof diameter: 9 inches
Base plate diameter: 9 inches
Collapsed height: 4.9 inches
Flexmember: 578-92-3-309
Piston: - no
Piston type: - no
Goodyear pruning: 2B12300
Triangle Spring: 4327
Firestone: 7244
Conti Tech: 64283
R&S truck: 1090215
Neway:90557014
Batco: 10-97424
Goodyear Airspg: 2B12-300
Navistar / IHC: 554785C1
UCF / Impex: AB-2B12-300
T.W. Distribution: AB7424
Watson & Chalin: AS0009
Taurus: AS214-7424
Dallas Spring: AS7424
Midland / Haldex: CS212300
Euclid / Meritor Aftermarket: E-FS7424
Conti Tech: FD330-22327
Euclid / Meritor aftermarket: FS7424
BWP: M-3509
Sauer Axle: P10-755
HD America: PMABG-7424B
Hendrickson Auxiliary: S-13043
Leland: SC2024
Neway: TC-144-2
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
