| Place of Origin: | Guangdong,China |
| Brand Name: | Norgren |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 6X2 / 6"X2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Bellows NO .: | Springride DF 6 X 2 |
|---|---|---|---|
| Firestone: | W01-R58-4070 - (6 X 2 Alu ) | Plate Dia.: | 153.5mm |
| Max Dia.: | 175mm | Pressure Ability: | 0.2-0.8 MPa |
| Air Inlet: | G1/2 | Stroke: | 115mm |
| High Light: | air helper springs,air suspension parts |
||

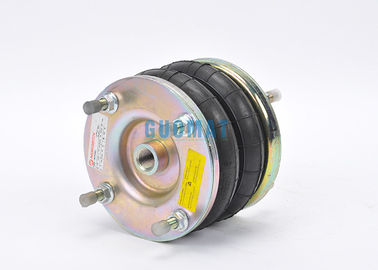

6X2 / 6"X2 Norgren Air Bellows Industrial Air Spring With Stamping Flange And Plate For Pulp Mill Equipment
Specifications and Detail Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M8
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 153.5 mm
Bottom Cover Plate Diameter (Width): 153.5 mm
Material top and bottom plate:Aluminium
❹Rubber Bellows
Diameter max at 7 bar:175MM
Stroke of Rubber Bellows:80mm-195m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max load at 80 mm height and 8 bar:1415 daN
Double Convoluted Air Spring 2B180-115 D185
Double Convoluted Air Spring 2B180-115 D185
Replaces These Air Springs (Air Bellows)
ContiTech: FD 76-14 1/2 M10
ContiTech: FD 76-14 DS G1/2
ContiTech: FD 76-14 DS G1/2 CR
ContiTech: FD 76-14 DS CR G1/2
ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Norgren: M/31062 / M 31062 / M31062
Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
Dunlop FR: SP1482
Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
Other kinds of model air bellows:
W01R584081 (2 3/4" x3)
W01R584051 Dunlop Style 4,5 " x 2
W01R584052 (6" x1 steel)
Firestone W01R584057 (10 x1 steel)
Firestone W01R584027 8x2 (Epichlorhydrin / Herclor)
Firestone W01R584090 8"x2 Butyl
Firestone W01R584055 8x2 Steel
Firestone W01R584060 (12 x1 steel)
Firestone W01R584077 (12 x1 Herclor )
Firestone W01R584056 8"x3 Steel
Firestone W01R584062 (12 x3 Steel)
Firestone W01R584065 (14 1/2 x3 Steel)
Firestone W01R584098 (14 1/2 x1 Herclor)
Firestone W01R584097 (14" 1/2 x2 Herclor)
Firestone W01R584025 (10" x1 Epichlorhydrin/Herclor)
Firestone W01R584078 (6 x1 Alu )
Firestone W01R584070 (6 x 2 Alu )
Firestone W01R584053 (6 x 2 Steel )
Firestone W01R584059 (10" x3 steel)
Firestone W01R584054 8x1 Steel
Firestone W01R584028 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01R584045
Firestone W01R584064 14" 1/2 x2
Firestone W01R584063 14 1/2 x1
Bellow only 8" x 1 W01R584085
Firestone W01R584048
W01R584080 2 3/4" x 2
Firestone W01R584060 12" x2 steel
Firestone W01R584070 (6 x 2 V2a )
Firestone W01R584051E 4,5 x 2 Stainless Steel
Firestone W01R584050
W01R584080 2 3/4" x 1
Double Convolution Air Spring Calculation inquiry:
