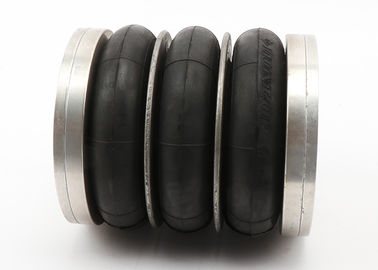

W01-R58-4051 Industrial Air Spring 4.5 x 3 Aluminium 4 1/2" x 3

W01-R58-4051 Industrial Air Spring 4.5 x 3 Aluminium 4 1/2" x 3

  • W01-R58-4051 Industrial Air Spring 4.5 x 3 Aluminium 4 1/2" x 3
  • W01-R58-4051 Industrial Air Spring 4.5 x 3 Aluminium 4 1/2" x 3
  • W01-R58-4051 Industrial Air Spring 4.5 x 3 Aluminium 4 1/2" x 3
  • W01-R58-4051 Industrial Air Spring 4.5 x 3 Aluminium 4 1/2" x 3
W01-R58-4051 Industrial Air Spring 4.5 x 3 Aluminium 4 1/2" x 3
Product Details:
Place of Origin: Guangdong,China
Brand Name: Norgen
Certification: ISO/TS16949:2009
Model Number: 4 1/2" x 3
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Aluminium Cover Plate , Rubber Bellows Norgen: 4 1/2" X 3
Gas Hole: G 3/8" Two Pillars Stick Nuts: M6
Screw Center Distance: 93 Mm Cover Plate Diameter: 110 Mm
Pressure Ability: 0.2-0.8 M Pa
High Light:

air helper springs

,

air suspension parts

Firestone W01-R58-4051 Industrial Air Spring 4.5 x 3 Aluminium 4 1/2" x 3



4.5 x 3 Specific parameters and specifications:

Air Inlet centered G 3/8"
Tapped Hole 3 x M6, 15 mm deep
Diameter Top- / Bottom Plate 114 mm
Diameter max at 7 bar 163 mm
min Height 70 mm
max Height 145 mm
Stroke 75 mm



Top Plate Hole/Stud: 3 Pieces
Top Plate Hole/Stud: 3 Pieces

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 3 Pieces- x M6, 15 mm
Screw Center Distance of Top Cover Plate : 93 mm
Bottom Cover Plate Screw (Nut) Tooth : 3 Pieces- x M6, 15 mm
Screw Center Distance of Bottom Cover Plate :93 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G 3/8" at the middle of the plate
Cover Plate
Top Cover Plate Diameter (Width): 110 mm
Bottom Cover Plate Diameter (Width): 110 mm
Rubber Bellows
Rubber Bellows Natural Diameter : 115 mm
Rubber Bellows Natural Height : 180 mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Piece of Girdle Hoop



The structure of the air spring:


1, It is a kind of rubber element which is made of cord layer, inner or outer rubber layer or traveler through vulcanization after forming to form a kind of flexible body, and realize the elastic function by the compressibility of filling air. Commonly known as air springs, rubber airbags, airbags and so on.
2, the assembly by the rubber air spring, the base, the base (piston), the cushion after the assembly of a sealed chamber with the overall shape.

3, according to the shape is divided into capsule, film and sleeve three categories. Sealing structure by the pressure into the self-styled, flange clamping, hoop ring sealed and mixed four categories.
4, the load of the air spring shock absorber is mainly borne by the cord, the cord layer mainly consists of 2 layers, the special requirements of the product consists of 4 layers of cord layer. The inner rubber is mainly from the sealing effect, in addition to the outer rubber sealing role, but also play a protective role.





Other Norgen air springs models:



Model Nominal Ø (inch) x convolutions Maximum stroke (mm) Air Port size
PM/31021 2 3/4“ x 1 20 G1/4
PM/31022 2 3/4“ x 2 45 G1/4
PM/31023 2 3/4“ x 3 65 G1/4
PM/31041 4 1/2“ x 1 140 G3/8
PM/31042 4 1/2“ x 2 280 G3/8
PM/31061 6" x 1 155 G1/2
PM/31062 6" x 2 155 G1/2
PM/31081 8" x 1 95 G3/4
PM/31082 8" x 2 185 G3/4
PM/31091 9 1/4” x 1 105 G3/4
PM/31092 9 1/4“ x 1 230 G3/4
PM/31121 12" x 1 105 G3/4
PM/31122 12" x 2 215 G3/4
PM/31123 12" x 3 315 G3/4




W01-R58-4051 Industrial Air Spring 4.5 x 3 Aluminium 4 1/2" x 3 0W01-R58-4051 Industrial Air Spring 4.5 x 3 Aluminium 4 1/2" x 3 1
