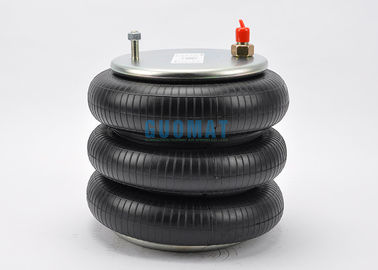

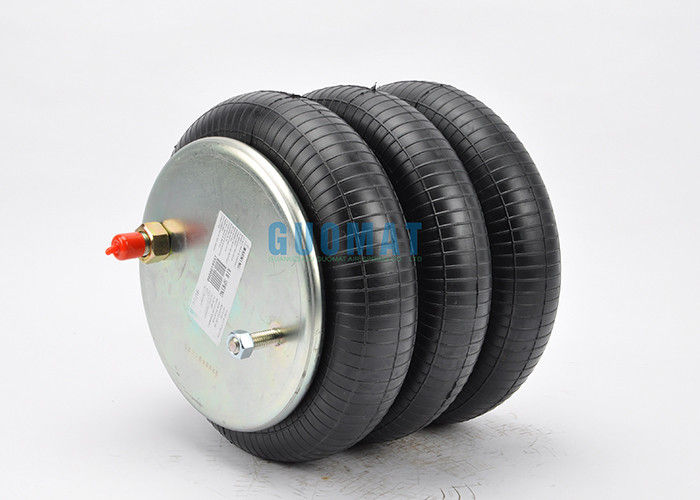

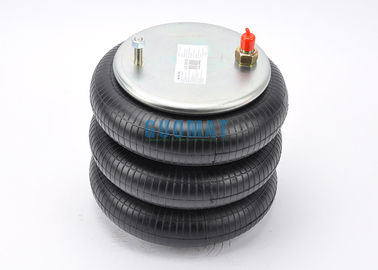

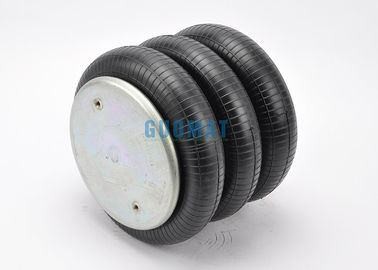

3B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 4466

3B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 4466

  • 3B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 4466
  • 3B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 4466
  • 3B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 4466
  • 3B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 4466
3B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 4466
Product Details:
Brand Name: GUOMAT
Model Number: 3B8027
Certification: ISO/TS16949:2009
Place of Origin: China
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Delivery Time: 2-8 work days
Packaging Details: strong carton box or as customers need
Contact Now
Detailed Product Description
Material: Steel And Rubber Goodyear: 3B12-310
Warranty: 12 Months Weight: 7.0 Kg
Other Name: Air Suspension Spring Bags Pressure Ability: 0.2-0.8 M Pa
Histeer: 200117 Contitech: FT 330-29 466
Package Size: 33*33*22 Cm
High Light:

air helper springs

,

air suspension parts

3B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 Triangle 4466​





Description:



GUOMAT NO. 3B8027 this kind of Triple Convoluted Air Spring which is produced by GUOMAT. It can replace Goodyear Complete Number  3B12-310 ;Firestone Complete Number W01-358-8027 and other kinds. 3B8027 air spring not only use in truck and trailer,but also as Vibratory conveyors,such as Large drying machines,Centrifugal separators,Coordinate measuring tables and machinery and Commercial laundry machines.





GUOMAT NO. 3B8027 Technical parameters



Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 1pcsX1/2-13UNC

Top Cover Plate Screw (Nut) Tooth : 1pcsX3/4-16UNC

Screw Center Distance of Top Cover Plate : 157 mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF



Cover Plate

Top Cover Plate Diameter: 231 mm

Bottom Cover Plate Diameter: 231 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 460 mm to MIN 130 mm

Maximum Height : 460 mm

Minimum Height :130 mm

Compression Height : 330 mm



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop



Top plate hole/stud: 2
Base plate hole/stud: 2
Top plate diameter: 9
Base plate diameter: 9
Folding height: 4.5
Flexible member: 578-93-3-100
Pistons:-
Piston type: —
Goodyear trim: 3B12310





Horse FT330-29 466

Arvin , Meritor 200117
Firestone W01-358-8027/38

Suspensions 200117
Goodyear 3B12-310

Firestone W01-358-8029
Goodyear 578-93-3-100

Goodyear Skin 556-33-8-334
Triangle 6334/4466





OEM Original Equipment Manufacturer:



BELLOW NO. COMPLETE NO. COMPLETE NO. COMPLETE NO.
Air spring Supplier: Goodyear Bellows Number: 578933100;578-93-3-100, Air spring Supplier: ContiTech Number:FT33029466,FT330-29 466 Air spring Supplier: Triangle Bellows Number: 6334 Firestone Trimmed: W013588027,W01-358-8027, W01 358 8027
Air spring Supplier: Goodyear Complete Number: 3B12310,3B12-310 Air spring Supplier: Contitech: 64565 Air spring Supplier: Triangle Complete Number: 4466 Firestone Trimmed:W01-358-8029,W013588029,W01 358 8029
Suspension Supplier: Arvin Meritor Number: 200117 Air spring Supplier: Automann Number:ABSP3B22R-8027 Histeer 8029. Firestone :8027
      Euclid E-FS8027
Suspension Supplier: Histeer Number:200117 Dallas AS8027 Suspension Supplier: Silent Drive
      Euclid FS8027




3B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 4466 03B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 4466 13B12-310 Goodyear Triple Convoluted Air Spring Triangle 6334 4466 2



3B12-310 57893231000000 57893231000000 20105514 Y 3B12-310
3B12-310 Bellows Air Spring 57893231000004 3B12-310 20110947 N 3B12-310 Bellows Air Spring
3B12-311 57893231100000 57893231100000 20094969 Y 3B12-311
3B12-312 57893231200000 57893231200000 20035821 Y 3B12-312
3B12-312 Bellows Air Spring 57893231200004 3B12-312 20094970 N 3B12-312 Bellows Air Spring
3B12-313 57893231300000 57893231300000 20099695 Y 3B12-313
3B12-313 57893231300004 3B12-313 20307217 N 3B12-313
ENIDINE YI-3B12-313 57893231300019 57893231300019 20094974 Y ENIDINE YI-3B12-313
3B12-314 57893231400000 57893231400000 20094975 Y 3B12-314
3B12-315 57893231500000 57893231500000 20099677 Y 3B12-315
3B12-315 Bellows Air Spring 57893231500004 3B12-315 20127021 N 3B12-315 Bellows Air Spring
3B12-316 KIT 57893231600000 57893231600000 20094977 Y 3B12-316 KIT
3B12-316 KIT 57893231600004 3B12-316 20136005 N 3B12-316 KIT
3B12-317 57893231700000 57893231700000 20094978 Y 3B12-317
3B12-319 57893231900000 57893231900000 20109195 Y 3B12-319
3B12-319 Bellows Air Spring 57893231900004 3B12-319 20109214 N 3B12-319 Bellows Air Spring
ENIDINE YI-3B12-320 57893232000019 57893232000019 20106776 Y ENIDINE YI-3B12-320
3B12-321 57893232100000 57893232100000 20112849 Y 3B12-321
ENIDINE YI-3B12-321 57893232100019 57893232100019 20112990 Y ENIDINE YI-3B12-321
3B12-322 57893232200000 57893232200000 20118920 Y 3B12-322
3B12-322 Bellows Air Spring 57893232200004 3B12-322 20118921 N 3B12-322 Bellows Air Spring
3B12-323 57893232300000 57893232300000 20118922 Y 3B12-323
3B12-323 Bellows Air Spring 57893232300004 3B12-323 20118923 N 3B12-323 Bellows Air Spring
3B12-324 57893232400000 57893232400000 20113782 Y 3B12-324
3B12-324 Bellows Air Spring 57893232400004 3B12-324 20137951 N 3B12-324 Bellows Air Spring
3B12-325 57893232500000 57893232500000 20118924 Y 3B12-325
3B12-325 Bellows Air Spring 57893232500004 3B12-325 20118925 N 3B12-325 Bellows Air Spring
ENIDINE YI-3B12-325 57893232500018 57893232500018 20118926 Y ENIDINE YI-3B12-325
ENIDINE YI-3B12-325 57893232500019 57893232500019 20118927 Y ENIDINE YI-3B12-325
