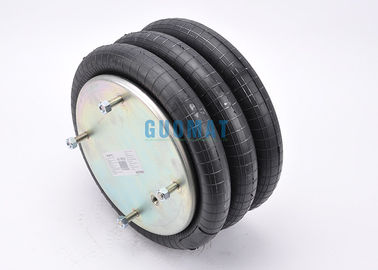

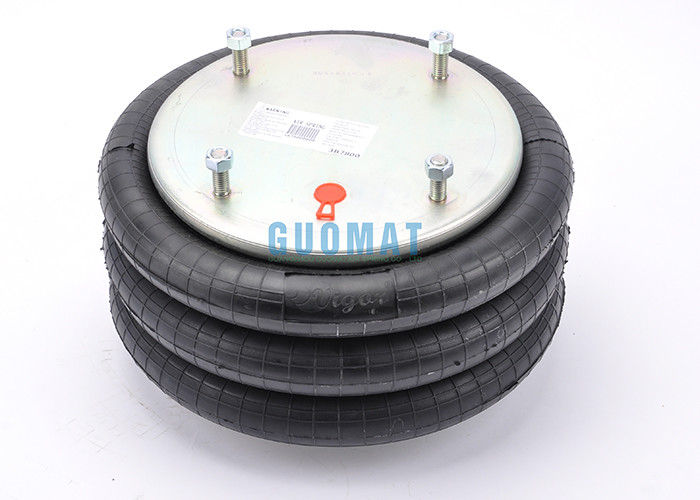

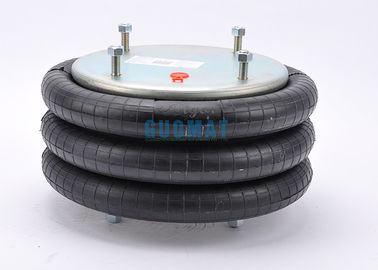

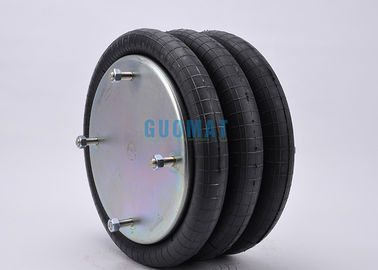

W01-358-7800 Firestone Rubber Air Spring Assembly / Triple Convoluted Air Spring

Name: W01-358-7800 Firestone Rubber Air Spring Assembly / Triple Convoluted Air Spring
Brand: GUOMAT
SKU: 3B7800
Rating: 4.9 (119 reviews)

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	3B7800

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Steel And Rubber	Contitech:	FT530-32 333
Warranty:	12 Months	Weight:	8.0 Kg
Other Name:	Air Suspension Parts	Pressure Ability:	0.2-0.8 M Pa
Goodyear:	3B14-359
High Light:	air helper springs , air suspension parts

W01-358-7800 Firestone Rubber Spring Assembly Air Spring Triple Convoluted

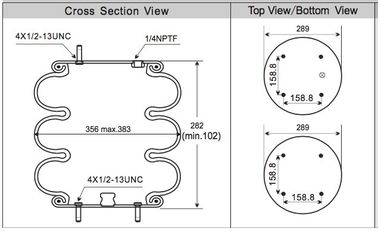

GUOMAT NO. 3B7800 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcsX1/2-13UNC

Screw Center Distance of Top Cover Plate : 158.8 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX1/2-13UNC

Screw Center Distance of Bottom Cover Plate : 158.8 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

❸ Cover Plate

Top Cover Plate Diameter: 289 mm

Bottom Cover Plate Diameter: 289 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 356 mm

Rubber Bellows Natural Diameter :282 mm

Design Height: 9-13 inches / 229mm-330mm

Maximum Height : 460 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

OEM Original Equipment Manufacturer:

Compressed Height: 4.00 inches
Top Plate Number:3123 or 3132
Top Plate Width:11.31 inches
Piston Number:3122
Piston Width:11.31 inches
Firestone Bellows Number:313
Goodyear Part Number:3B14-360,3B14 360

GOODYEAR Part Number:3B14-359,3B14 359
GOODYEAR FLEX 578-93-3-350,578933350,578 93 3 350
Triangle Part Number:4333
Triangle Bellows Number:6319
Granning Number:4514
Ridewell Number:1003587800C
Note:HOLLAND HITCH 4514

CONTITECH FT 530-32 333,FT530-32 333,FT53032 333
CONTITECH FT 530-32 325,FT530-32 325,FT53032 325
FIRESTONE W01-358-7800,W013587800,W01 358 7800
FIRESTONE W01-358-7818,W01 358 7818,W013587818
FIRESTONE FLEX 313D
AIRKRAFT 115070
AIRKRAFT 116052

The usal kinds of Double Convolution Air Springs

Triple Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO.	Contitech NO.	Min. Design height	Installation Space Required	Max. Stroke
3B33029	FT 330-29	110	345	320
3B43032	FT 430-32	115	355	315
3B53032	FT 530-32	110	410	325
3B53035	FT 530-35	115	430	395
3B96034	FT 960-34	120	510	335
3B133035	FT 1330-35	120	570	350

Air Spring Installation

Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
