W01-358-7423 2B12-432 Contitech Air Spring FD330-22 368 For SAUER P10-784

China W01-358-7423 2B12-432 Contitech Air Spring FD330-22 368 For SAUER P10-784 supplier

Large Image :  W01-358-7423 2B12-432 Contitech Air Spring FD330-22 368 For SAUER P10-784

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B7423

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Firestone: W01-358-7423, W013587423, WO1-358-7423, WO13587423
Goodyear: 2B12-432 / 2B12 432/ 2B12432 Firestone Bellows Number: 22
Contitech: FD 330-22 368 /FD330 22 368 Volvo: 3130504
Watson & Chalin #: AS-0009 Triangle Part Number: 4327

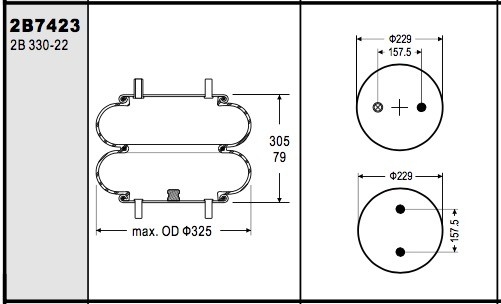

Firestone W01-358-7423 Goodyear 2B12-432 Contitech FD330-22 368 For SAUER P10-784





❶Nut/ Blind Nut


Top cover screw (nut) teeth: 2 X 1 / 2-13UNC
Top cover screw center distance: 157.5 mm
Bottom cover screw (nut) teeth: 2 X 1 / 2-13UNC
Bottom cover screw center distance: 157.5 mm



❷ air hole / air inlet / air connector
Air vent / air inlet: 1 / 4 NPT



❸ cover
Top cover diameter (width): 231 mm / 9.00 inches
Bottom cover diameter (width): 231 mm / 9.00 inches
Threaded hole: 3 / 8-16



❹Rubber bellows


Rubber bellows natural diameter: 298 mm / 11.7 inches
Rubber bellows MAX diameter: 325 mm / 12.9 inches
Compressed height: 81 mm / 4.12 inches
Minimum bump height: 81 mm / 4.12 inches
Design height: 203 mm - 241 mm / 8-9.5 inches
Maximum height: 305 mm / 12 inches
Bellows #No. :twenty two
Working stroke: 224 mm / 8.8 inches



❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Girdle Hoop: a belt hoop





Airmount / Airstroke Actuator WO1-358-7424, 22D 2ST1/4NPT 2ST.

Maximum Diameter @ 100 PSIG (mm) 327.66 Material 2-Ply Standard Cord
Maximum Height (mm) 256.54 Blind Nut Centers (mm) 157.48
Maximum Stroke (mm) 175.26 Port Offset from Blind Nut Centerline (mm) 73.152
Minimum Usable Height (mm) 81.28 Design Height 241.3
1 Inch (pounds) 7180 40 psig (pounds) 2060
3 Inch (pounds) 6470 60 psig (pounds) 3170
Maximum Stroke (pounds) 3700 80 psig (pounds) 4280
Equivalent High Strength Style Number 210 400 CPM % 92.4
Natural Frequency (@80 psig) (cpm) 106 800 CPM % 98.2
Extended Height (Similar End Closure) Style Number 22_Ì1.5 1500 CPM % 99.5



     Manufacturer Cross OEM Reference



     Other Cross OEM Reference



Firestone Bellows Number:22 Sauer : P10-755
Firestone : W01-358-7423 / W01 358 7423 / W013587423 SAF Holland : Tc1442
Firestone Top Plate Number:3220 Tuthill : 6421
Firestone Piston Number:3256 Brake & Wheel : M3509
Contitech : FD 330-22 368 /FD330 22 368 Ridewell : 1003587424C
Goodyear Part Number:2B2B12-432 /2B12 432 Watson&Chalin : As0009
Goodyear Bellows Number:578-92-3-309 /578 92 3 309 /578923309 Volvo : 3130504
Triangle Bellows Number:6316 R & S Truck & Body: 1090215
Triangle Part Number:4327 Neway : 90557014(AL-41&45)
Hendrickson : S13043 Holland (Neway) Number:905-57-014
Dayton : 3547424 Watson & Chalin #:AS-0009
Leland : Sc2024 Note:R & S TRUCK & BODY # 1090215
Navistar : 554785C1
