Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B7447 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | FIRESTONE: | W01-358-7447 |
---|---|---|---|
GOODYEAR FLEX: | 556 2 3 8328 | Goodyear: | 2B12-324 |
Top Cover Plate Screw (Nut) Tooth: | 2 Pcs X 3/8-16UNC | Rubber Bellows Natural Diameter: | 300 Mm |
Pressure Ability: | 0.2-0.8 MPa | ||
High Light: | air helper springs,air suspension parts |

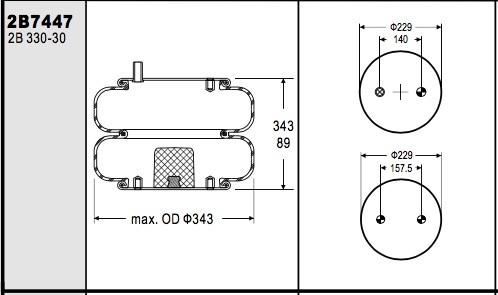

Contitech FD330-30 340 FIRESTONE W01-358-7447 SILENT DRIVER Truck Air Spring
Specifications
EZ RIDE 8030150
Contitech FD330-30 340
HENDRICKSON :S6242
Firestone :22C-1.5
TRAILER W01-358-7447
SILENT DRIVER
Goodyear:2B12-324
Firestone W01-358-7447 /W01 358 7447 / W013587447
Compressed Height: 3.70 inches
Top Plate Number:3210
Top Plate Width:9.00 inches
Piston Number:3183
Piston Width:9.00 inches
Firestone Bellows Number:22-1.5
Bolt or Stud 1/2-13
Threaded Hole 3/8-16 Blind Nut on Bead Plates 1/2-13 in Pistons Air Inlet 1/4 N.P.T.
See Piston Index
No alignment specified-center stud mounting is standard
Combination Stud/Air Inlet Stud Outside Thread is 3/4-16
Studs Inside Thread (Air Inlet) is 1/4 N.P.T. Exceptions will be noted on Part View as
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF / 3/4NPTF / Rp1/4
Rp1/4(Air inlet is in the center)
1/4NPT ( air inlet 73mm)
1/4NPT(Air inlet is in the center)
3/4NPT ( air inlet 73mm)
❸ Cover Plate
Top Cover Plate Diameter (Width): 210 mm
Bottom Cover Plate Diameter (Width): 210 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 300 mm
Rubber Bellows Natural Height : 241 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Type
Rubber bellows only
With clamped plates G 1 air inlet
66 mm excentrical
With clamped plates G 1/4 air inlet
73 mm excentrical
Order No. on request 60891
60417
