| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6805 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Contitech: | FD530-30 532 |
|---|---|---|---|
| Firestone: | W01-358-6805 | Gas Hole / Air Inlet: | 3/4NPT |
| Cover Plate Diameter (Width): | 287 Mm | Compressed Height: | 76.2mm / 3 Inches |
| High Light: | air helper springs,air suspension parts |
||
Firestone W01-358-6805 Air Spring 21-2 Goodyear 2B14-462 RIDEWELL 1003586805C
OEM Number:
Contitech:FD530-30 532
Contitech:FD530-30 532
Firestone:W01-358-6805
Firestone:W01 358 6805
Firestone:W013586805
Firestone:21D-2
Firestone:21-2
Firestone:21 2
Goodyear 2B14-462
Goodyear 2B14 462
Goodyear 2B14462

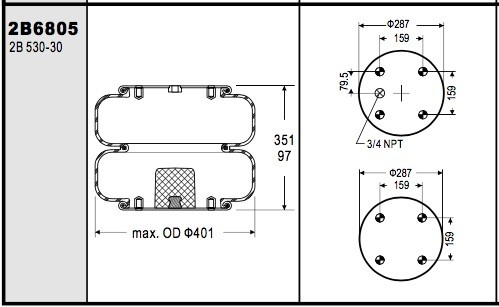

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4NPT
Center Distance Between Nut and Air inlet: 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 287 mm
Bottom Cover Plate Diameter (Width): 287 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 401 mm
Compressed Height: 76.2mm / 3 inches
Maximum Height: 351 mm
Working Stroke : 254mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Compressed Height: 3.00 inches
Top Plate Number:3131 or 3134
Top Plate Width:11.31 inches
Piston Number:3130
Piston Width:11.31 inches
Firestone Bellows Number:21-2
Note:see W01-358-6805
