| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6803 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Contitech: | FD530-30 449 |
|---|---|---|---|
| Firestone: | W01-358-6803 | Gas Hole / Air Inlet: | 1/4NPT |
| Cover Plate Diameter (Width): | 287 Mm | Compressed Height: | 76.2mm / 3 Inches |
| High Light: | air helper springs,air suspension parts |
||
Goodyear 2B14-366 Air Spring Firestone W01-358-6803 HENDRICKSON TRAILER S6412
OEM Number:
Goodyear 2B14-366
Goodyear 2B14 366
Goodyear 2B14366
HENDRICKSON TRAILER S6412
Contitech FD530-30 449
Contitech FD530 30 449
Firestone W01 358 6803
Firestone W01-358-6803
Firestone W013586803
Firestone Bellows Number:21-2
Firestone Bellows Number:21 2

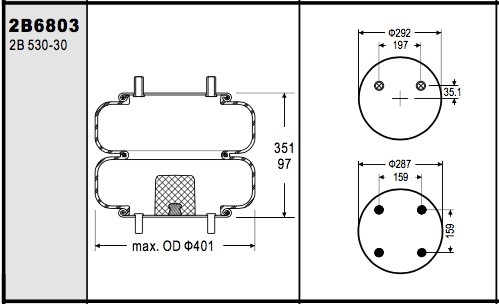

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs XCombination Stud/Air Inlet Stud Outside Thread is 3/4-16
Screw Center Distance of Top Cover Plate : 194 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X Bolt or Stud 1/2-13
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet :Studs Inside Thread (Air Inlet) is 1/4 N.P.T.
Center Distance Between Nut and Air inlet: 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 287 mm
Bottom Cover Plate Diameter (Width): 287 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 401 mm
Compressed Height: 76.2mm / 3 inches
Maximum Height: 351 mm
Working Stroke : 254mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Compressed Height: 4.80 inches
Top Plate Number:3193
Top Plate Width:11.31 inches
Piston Number:3122
Piston Width:11.31 inches
Firestone Bellows Number:21-2
Goodyear Part Number:2B14-366
Goodyear Bellows Number:578-92-3-353
Hendrickson Trailer Number:S-6412
Triangle Part Number:4449
Triangle Bellows Number:6336
Assembly Weight: 9-11 inches 4.8 inches
Design Height: N/A inches 1,858 lbsf 5,574 lbsf 8,361 lbsf
Minimum Jounce Height: Maximum Rebound Height: Loading Capacity at 20 psig: Loading Capacity at 60 psig: Loading Capacity at 90 psig: Natural Frequency: Maximum Diameter: Hz
16 inches
