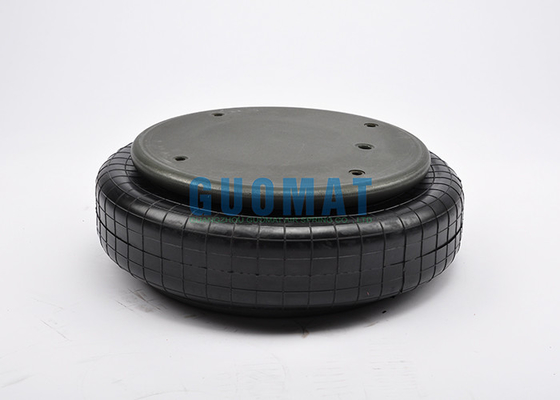

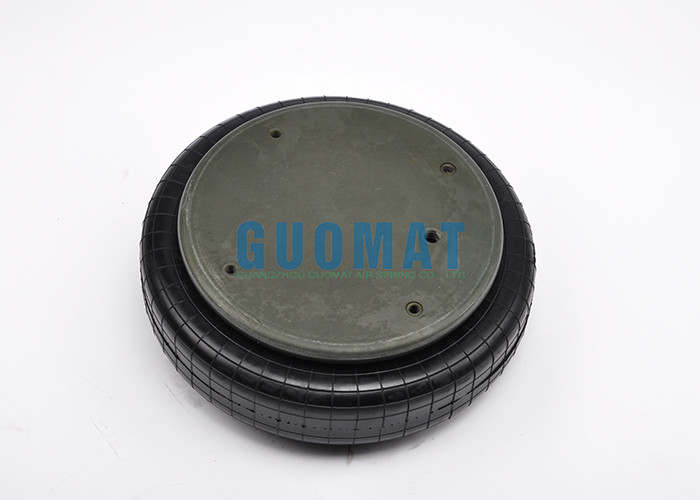

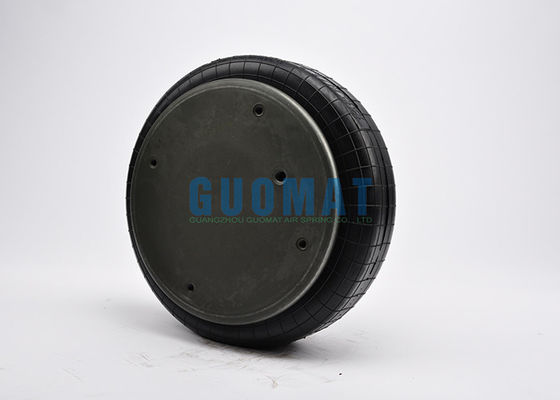

GUOMAT 1B6371 Single Convoluted Air Spring 1/4 NPT Air Inlet W01M586371

Name: GUOMAT 1B6371 Single Convoluted Air Spring 1/4 NPT Air Inlet W01M586371
Brand: GUOMAT
SKU: 1B6371
Rating: 5 (141 reviews)

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B6371

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber Steel	Firestone:	W01-M58-6371
Warranty:	One Year	Weight:	6.9 Kg
Other Names:	Air Spring Single Convoluted	Pressure Ability:	0.2-0.8 M Pa
Rubber Bellows:	113-1	Air Inlet:	1/4 N P.T.F.
High Light:	air suspension parts , convoluted air spring

GUOMAT 1B6371 Single Convoluted Air Spring 1/4 NPT Air Inlet W01M586371

GUOMAT 11B6371 Specifications and Technical Data

Operating Temperature: 57Cº to -54Cº

GUOMAT NO.:1B6371

Cross NO.:W01-M58-6371

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :4pcsX 3/8-16UNC

Screw Center Distance of Top Cover Plate :158.8 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 158.8 mm

Distance Gas Hole Between Nut 79.4 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 NPT

❸ Cover Plate

Top Cover Plate Diameter (Width): 289mm

Bottom Cover Plate Diameter (Width): 289 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter 380 mm

Rubber Bellows Max Diameter : 406 mm

Rubber Bellows Natural Height : 120 mm

The Working Stroke : MAX 187 mm to MIN 81 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Without Girdle Hoop

The usal kinds of Single Convolution Air Actuator

Single Convolution Air Actuator
All Measurements Are In Mm
GUOMAT NO.	Firestone NO.	Min. Design height	Installation Space Required	Max. Stroke

1B63714	W01-M58-6371	51	420	136

Description OF GUOMAT 1B6371:

The traditional method of fluidized bed damping mainly rubber pad, requiring a higher steel spring. However, both of these shock absorption methods fail to meet the needs of the end user. However, the introduction of "air spring isolation system" from abroad has enabled isolation rather than shock absorption. With its unique energy conversion Way, the vibration of the mechanical energy into internal energy, making 95 percent of the vibration are isolated, to achieve the true isolation effect.

Different types of fluidized bed, according to the overall weight of the fluidized bed to choose the appropriate bearing capacity of the air spring, and fluidized bed according to the length and width and height of the design of a specific installation, and air spring convenient installation, but also makes isolation System installation is much easier than installing a steel spring.
Airbag isolation, there are two control methods. One is a group (usually 4 or 6) airbag single one-way valve packing, like a car tire.

Other size we can produce:

Style:113-1 Two Ply Bellows

Blind nuts, 1/4 BSP:W01-M58-6371;W01 M58 6371;W01M586371

Blind nuts, 3/4 BSP:W01-M58-6369,W01 M58 6369;W01M586369

Countersunk steel bead rings,40 mm bolts, nuts washers:W01-M58-7539;W01 M58 7539;W01M587539

Rubber bellows only:W01 -358-0150;W01 -358-0150;W01 -358-0150
Force to collapse to minimum height (@ 0 BAR):111N

128-1 High Strength Con-struction

Blind nuts, 1/4 BSP:W01-M58-6066,W01 M58 6066;W01M586066

Blind nuts, 3/4 BSP:W01-M58-6067,W01 M58 6067;W01M586067

Style:153-2 Two Ply Bellows

Blind nuts, 1/4 BSP:WO1-358-8158;WO1 358 8158;WO13588158

GUOMAT 1B6371 Single Convoluted Air Spring 1/4 NPT Air Inlet W01M586371 0

Style Number	Design Height	Load (at Design Height) at:			Natural Frequency	% of Isolation at Forced Frequency
		••40 PSIG (pounds)	60 PSIG (pounds)	80 PSIG (pounds)	(@ 80 PSIG) fn(cpm)	400 CPM %	800 CPM %	1500 CPM %
SINGLE CONVOLUTION
116-1	5.5	940	1,410	1,930	139	86.3	96.9	99.1
115	4.5	1,210	1,880	2,540	151	83.4	96.3	99.0
19	5.0	1,690	2,640	3,730	168	78.6	95.4	98.7
19-.75	5.5	1,890	2,950	4,080	156	82.0	96.0	98.9
113	5.0	3,010	4,610	6,460	152	83.1	96.3	99.0
113-1	5.5	3,820	5,900	7,990	133	87.7	97.2	99.2
153-2	6.0	4,564	7,048	9,682	121	89.9	97.7	99.3
119**	5.0	5,490	8,450	11,450	138	86.5	96.9	99.1
121**	5.0	6,450	10,300	14,450	142	85.5	96.7	99.1
126**	5.0	8,630	13,870	18,450	139	86.3	96.9	99.1
138-1.5	6.0	15,020	23,040	31,240	121	89.9	97.7	99.3
148-1	5.5	32,860	50,290	67,690	118	90.5	97.8	99.4
