Place of Origin: | Guangdong , China |
Brand Name: | Goodyear |
Certification: | ISO/TS16949 |
Model Number: | 1R12-1028 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | $59-159/pc |
Packaging Details: | strong carton box or as customer's need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,paypal or others |
Supply Ability: | 1000pcs/week |
Material: | Rubber Bellows ,Steel Piston | Goodyear: | 1R12-1028 |
---|---|---|---|
Other Name: | Suspension Air Spring | Cover Plate OD: | 228.6 MM |
Air Inlet / Air Fitting: | M22 | Goodyear Bellow No.: | 566-24-2-10285 |
High Light: | Goodyear Rolling Lobe Air Spring,56624210285,1R12-1028 |

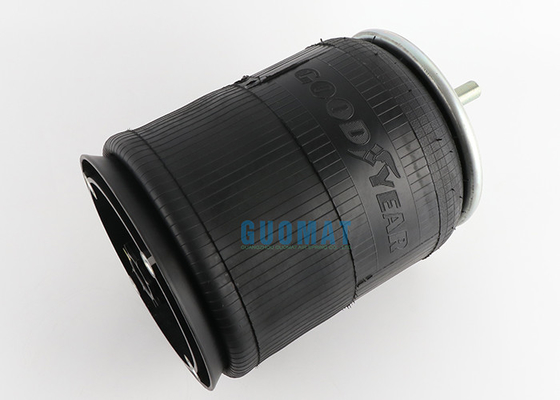

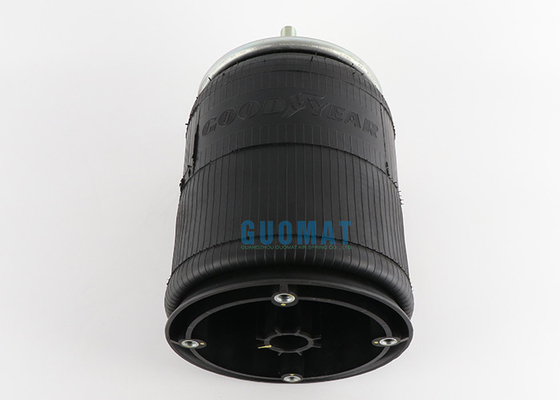

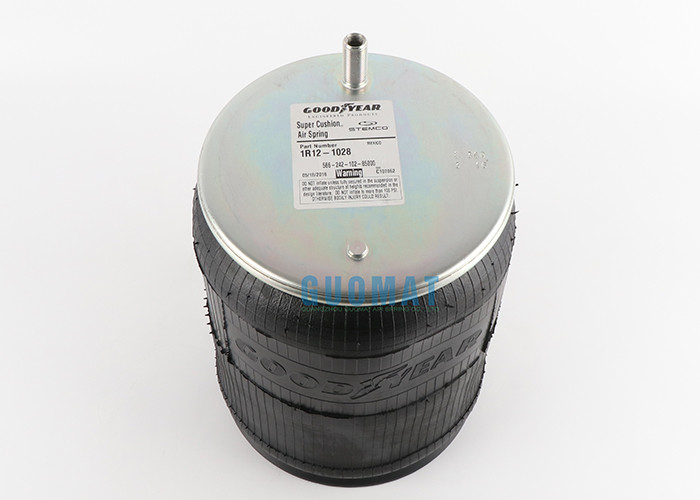

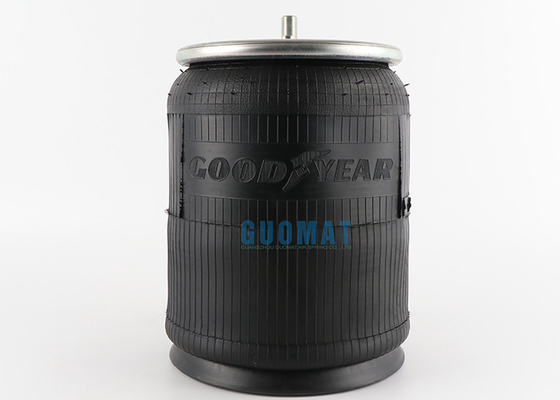

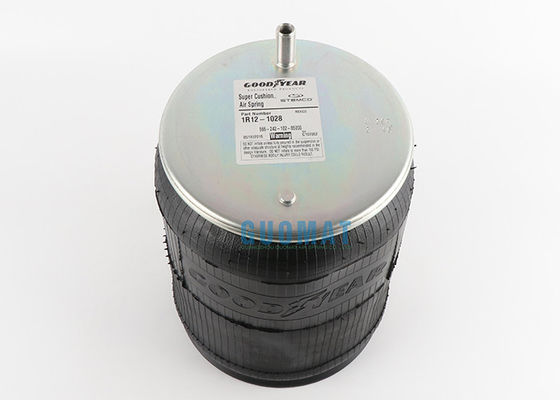

1R12-1028 Goodyear Bellow No. 56624210285 Goodyear Rolling Lobe Air Spring
OEM Cross Number:
Goodyear 1R12-1028
Goodyear Flexmember 56624210285
Top Plate Hole/Stud: 2
Bottom Plate Hole/Stud: 4
Top Plate Diameter: 228.6 MM
Bottom Plate Diameter:249 MM
Collapsed Height: 165.1 MM
Piston Type: C
Base plate / neutron type: composite material
Number of top plate holes / studs: 2
Top plate diameter: 228.6 MM
Top plate C to C diameter: 249 MM
Base plate hole bolt Qyt: 4
Base plate diameter: 249 MM
Diameter of base plates C to C: 199.898
Base plate alignment: parallel
Bumper: yes
Bracket: Not applicable
Minimum height: 165.1 MM
Maximum height: 525.78 MM
Flexmember | Plate | Piston | Part NO. | Fit for |
56624210285000 | 20549486 | N | 1R12-1028 | 1R12-1028 |
56624210295004 | 20583718 | Y | 1R12-1029AN | 1R12-1029AN |
56624210300000 | 20054293 | Y | 1R12-103 | 1R12-103 |
1R12-103 | 20035872 | N | 1R12-103 Rolling Lobe Air Spring | 1R12-103 Rolling Lobe Air Spring |
56624210300019 | 20092750 | Y | ENIDINE YI-1R12-103 | ENIDINE YI-1R12-103 |
56624210305004 | 20583717 | Y | 1R12-1030AN | 1R12-1030AN |
56624210315004 | 20583711 | Y | 1R12-1031AN | 1R12-1031AN |
56624210380000 | 20682766 | Y | 1R12-1038 Oshkosh 3949144 | 1R12-1038 Oshkosh 3949144 |
56624210395000 | 20590055 | Y | 1R12-1039 VOL-VO 21627074 | 1R12-1039 VOL-VO 21627074 |
56624210395035 | 20612708 | Y | VOL-VO 21627074 1R12-1039 | VOL-VO 21627074 1R12-1039 |
56624210405000 | 20613773 | Y | 1R12-1040 Mac-k truck 21627076 | 1R12-1040 Mac-k truck 21627076 |
56624210405049 | 20612709 | Y | 1R12-1040 Mac-k truck 21627076 | 1R12-1040 Mac-k truck 21627076 |
56624210415000 | 20630333 | Y | 1R12-1041 Mac-k truck 21669088 | 1R12-1041 Mac-k truck 21669088 |
56624210415049 | 20630841 | Y | 1R12-1041 Mac-k truck 21669088 | 1R12-1041 Mac-k truck 21669088 |
56624210425071 | 20615249 | Y | 1R12-1042 MITSUBISHI SERVICE ASSBLY | 1R12-1042 MITSUBISHI SERVICE ASSBLY |
1R12-1047 | 20689392 | N | 1R12-1047 Rolling Lobe Air Spring | 1R12-1047 Rolling Lobe Air Spring |
1R12-1048 | 20737250 | N | 1R12-1048 Rolling Lobe Air Spring | 1R12-1048 Rolling Lobe Air Spring |
1R12-1049 | 20672740 | N | 1R12-1049 Rolling Lobe Air Spring | 1R12-1049 Rolling Lobe Air Spring |
56624210500000 | 20682658 | Y | 1R12-1050 PREVOST 630285 | 1R12-1050 PREVOST 630285 |
56624210515000 | 20689480 | Y | VOL-VO 22039026 1R12-1051 | VOL-VO 22039026 1R12-1051 |
56624210515035 | 20689483 | Y | VOL-VO 22039026 1R12-1051 | VOL-VO 22039026 1R12-1051 |
56624210600000 | 20466778 | Y | 1R12-106 NOVABUS PROTOTYPE | 1R12-106 NOVABUS PROTOTYPE |
1R12-1060 | 20682283 | N | 1R12-1060 FLT1R12090 | 1R12-1060 FLT1R12090 |
1R12-1061 | 20682286 | N | 1R12-1061 FLT1R12095 | 1R12-1061 FLT1R12095 |
1R12-1065 | 20713600 | N | 1R12-1065 | 1R12-1065 |
1R12-1065 BULK | 20713089 | N | 1R12-1065 BULK | 1R12-1065 BULK |
56624210660000 | 20733971 | Y | 1R12-1066 PREVST 630286 Tag Blk Pck | 1R12-1066 PREVST 630286 Tag Blk Pck |
56624210660004 | 20697200 | Y | 1R12-1066 Prevost Tag Axle | 1R12-1066 Prevost Tag Axle |
56624210670000 | 20744274 | Y | 1R12-1067 | 1R12-1067 |
56624210695083 | 20682230 | Y | 1R12-1069 FLT1R12069 | 1R12-1069 FLT1R12069 |
1R12-1069 | 20746469 | N | 1R12-1069 SPRINGRIDE 1R12-069 | 1R12-1069 SPRINGRIDE 1R12-069 |
56624210705083 | 20682232 | Y | 1R12-1070 FLT1R12092 | 1R12-1070 FLT1R12092 |
1R12-1070 | 20746480 | N | 1R12-1070 SPRINGRIDE 1R12-092 | 1R12-1070 SPRINGRIDE 1R12-092 |
56624210715083 | 20768122 | Y | 1R12-1071 FLT1R12256 | 1R12-1071 FLT1R12256 |
1R12-1071 | 20746481 | N | 1R12-1071 SPRINGRIDE 1R12-256 | 1R12-1071 SPRINGRIDE 1R12-256 |
56624210725083 | 20682235 | Y | 1R12-1072 FLT1R12303 | 1R12-1072 FLT1R12303 |
1R12-1072 | 20746482 | N | 1R12-1072 SPRINGRIDE REPL 1R12-303 | 1R12-1072 SPRINGRIDE REPL 1R12-303 |
