| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B9-201 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 2B9-201 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Screw Tooth: | 3/8-16UNC |
| Screw Center Distance: | 89 Mm | Cover Plate Diameter: | 160 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 75~260 Mm |
| Net Weight: | 3.35 Kg | Package Size: | 24*24*24 CM |
| High Light: | 2B9-201 Goodyear Air Bags,578923202,Springridge 2B9-493 Goodyear Air Bags |
||
2B9-201 Goodyear Air Bags 578923202 FIRESTONE W013586935 CONTI FD200-19 499 SPRINGRIDE 2B9-493
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.35 kilograms
Package size: 24*24*24 CM
Model: 2B9-201
Cross others OEM:
| AUTOMANN | LOAD GUARD |
| ABSP2B12R-6935 | SC2010 |
| CONTI | MASA |
| 64515 | 227004001 |
| FD 200-19 499 | R&S TRUCK & BODY 1027505 |
| DAYTON | RIDEWELL |
| 354-6902 | S-1728-C |
| FIRESTONE | SAUR AXLES |
| 6935 W013586935 | P50-733A (LIFT) |
| FLEETRITE | SPRINGRIDE |
| 2B9-491 | 2B9-493 |
| FREIGHTLINER | SUSPENSIONS INC. |
| 16-14318-000 | 200042 |
| GRANNING | TAURUS |
| 4848 | AS218-6902 |
| HDA | TRIANGLE |
| PMABG-6902B | 4310 4499 |
| HENDRICKSON | TRP |
| B-2630 | AS69350 |
| INT’L/NAVISTAR | |
| 55478C1 |
2B9-201 Goodyear Air Spring Technical parameters
❶Nut / Blind Nut
Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
Screw center distance of bottom cover plate: 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
2B9-201 Goodyear Air Spring Cross others OEM
| OEM Reference | OEM Reference |
|
Goodyear:2B9-201 Goodyear:578 92 3 202 Goodyear:578923202 |
Taurus: AS218-6910 |
| Triangle Spring: 4320 | Dallas Spring: AS6910 |
|
Firestone: 6935 Firestone:W01-358-6935 Firestone:W01 358 6935 Firestone:W013586935 |
Sirco: AS-6910 |
| ContiTech: 64515
ContiTech:FD 200-19 499 CI 1/4 NPT ContiTech:FD 200 19 499 CI 1/4 NPT ContiTech:FD200-19 499 CI 1/4 NPT |
Midland/Haldex: CS209200 |
| R & S Truck: 1027405 | Euclid/Meritor Aftermarket: E-FS6910 |
| Ridewell: 1003586910C | ContiTech: FD200-19320 |
| Batco: 10-96910 | Euclid/Meritor Aftermarket: FS6910 |
| Reyco: 23704-01 | BWP: M-3501 |
| Hendrickson: 45843-3 | HD America: PMABG-6910B |
| Navistar/IHC: 554783C1 | Ridewell: S4512C |
| UCF/Impex: AB-2B9-200 | Leland: SC201 |
| Automann: ABSP2B12R-6910 | Leland: SC2011 |
| Watson & Chalin: AS0001 | Granning: 1371 |
Triangular spring: 4499
Granulation: 4848
Firestone: 6881
Firestone: 6935
Kangdi Technology: 64515
Suspension company: 200042
R&D truck: 1027505
Neway: 57006902
Navistar / IHC: 554784C1
UCF / Impex: AB-2B9-201
Ultraman: ABSP2812R-6935
Watson & Chalin (Watson & Chalin): AS0002
Midland / Haldex: CS209201
Euclid / Meritor aftermarket: E-FS6935
ContiTech: FD200-19499
Euclid / Meritor aftermarket: FS6935
BWP: M-3500
Sauer axle: P50-733A
Ridwell: S1728C
Leland: SC2010

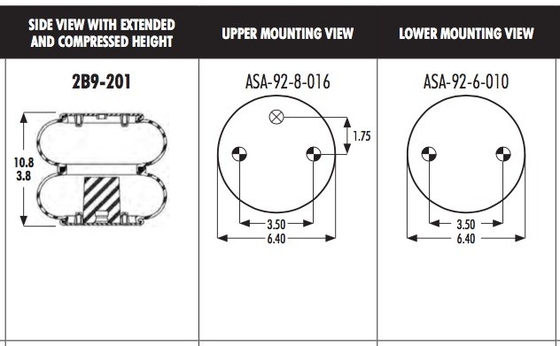

The drawings of 2B9-201 Goodyear Air Bags:

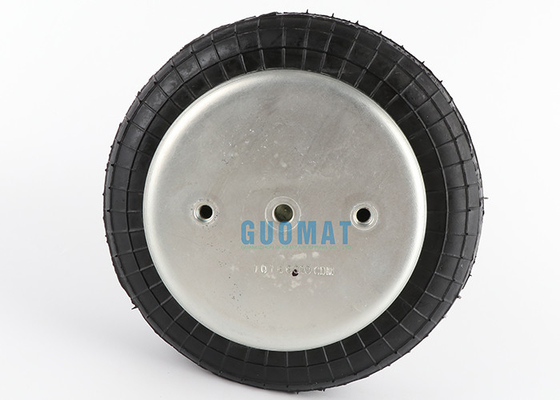

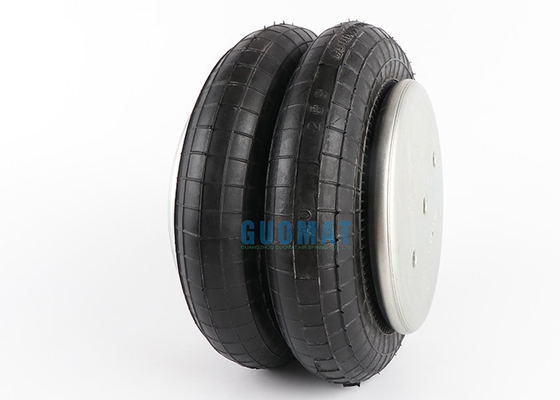

Detail pictures 1 of 2B9-201 Goodyear Air Bags:

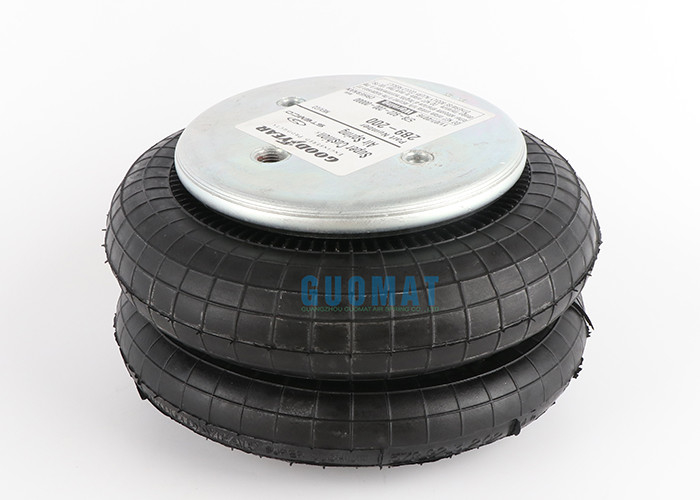

Detail pictures 2 of 2B9-201 Goodyear Air Bags:
| Item code | Goodyear Number | Goodyear FLEXIBLE MEMBER |
| 578 932 304 00004 | 3B12-304 | 578-93-3-100 |
| 578 922 200 00000 | 2B9-200 | 578-92-3-202 |
| 566 038 015 00004 | FM8015 | 566-03-8015 |
| 579 922 535 00004 | 2B6-535 |
579-92-3-515
|
| 566 262 118 00000 | 1R13-118 |
566-26-3-068
|
| 566 282 240 00004 | 1R14-240 |
566-28-3-059
|
| 566 242 541 00000 | 1R12-541 |
566-24-3-038
|
| 566 282 234 00000 | 1R14-234 | |
| 566 242 102 85000 | 1R12-1028 | |
| 578 922 223 00000 | 2B9-223 | 578-92-3-211 |
| 579 912 850 00000 | 1B8-850 | 579-913-530 |
| 579 922 833 00000 | 2B6-833 | 579-92-3-510 |
| 566 282 028 00004 | 1R14-028 |
566-28-3-021
|
| 578 932 325 00004 | 3B12-325 |
578-93-3-103
|
| 579 912 560 00000 | 1B8-560 | |
| 578 922 273 00000 | 2B9-273 |
578-92-3-206
|
| 566 282 201 00000 | 1R14-201 | 566-28-3-020 |
| 578 912 372 00000 | 1B14-372 | 578-91-3-351 |
| 567 242 658 00004 | 1R12-658 | 566-24-3-067 |
| 579 912 833 00000 | 1B6-833 | 579-91-3-510 |
| 578 912 313 00000 | 1B12-313 |
578-91-3-301
|
| 578 922 354 00004 | 2B14-354 |
578-92-3-353
|
| 579 922 850 00000 | 2B8-850 | 579-92-3-530 |
| 578 932 375 00000 | 3B15-375 | 578-93-3-377 |
| 579 080 007 00000 | 1S4-007 |
1S4-007 PISTON ASC-08-7-139
|
| 578 932 300 00004 | 3B12-300 |
578-93-3-100
|
| 578 912 215 00000 | 1B9-215 | 578-91-3-201 |
| 578 932 320 00004 | 3B12-320 | 578-93-3-100 |
| 578 922 468 00004 | 2B14-468 | 578-92-3-356 |
| 578 912 371 00000 | 1B14-371 |
578-91-3-352 /ASD-91-3-352
|
| 566 262 239 00004 | 1R13-239 |
566-26-3-098
|
| 578 922 346 00000 | 2B12-346 |
578-92-3-315
|
| 566 282 235 00004 | 1R14-235 | |
| 579 922 550 00004 | 2B8-550 |
579-92-3-530
|
| 578 922 375 00000 | 2B15-375 |
578-92-3-356
|
| 578 912 318 00000 | 1B12-318 |
578-91-3-301 /ASD-91-3-301
|
| 566 262 039 00004 | 1R13-039 |
566-26-3-051
|
| 579 160 003 00004 | 1S8-003 | 579-16-1-002 |
| 579 912 800 00000 | 1B5-800 | 579-91-3-500 |
| 566 242 092 00004 | 1R12-092 |
566-24-3-163
|
| 578 912 375 00004 | 1B15-375 | |
| 579 912 544 00000 | 1B7-544 | 579-91-3-520 |
| 566 282 198 00004 | 1R14-198 |
566-28-3-015
|
| 578 922 377 00000 | 2B15-377 |
