| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B9-206 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 2B9-206 |
|---|---|---|---|
| Gas Hole: | 1/4NPTF | Screw Tooth: | 3/8-16UNC |
| Screw Center Distance: | 89 Mm | Cover Plate Diameter: | 160 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 75~260 Mm |
| Net Weight: | 3.35 Kg | Package Size: | 24*24*24 CM |
| High Light: | W013586905,2B9-206 Goodyear Air Spring Bags,DAYTON 354-6905 Goodyear Air Spring |
||
2B9-201 Goodyear Air Bags 578923202 FIRESTONE W013586935 CONTI FD200-19 499 SPRINGRIDE 2B9-493
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.35 kilograms
Package size: 24*24*24 CM
Model: 2B9-206

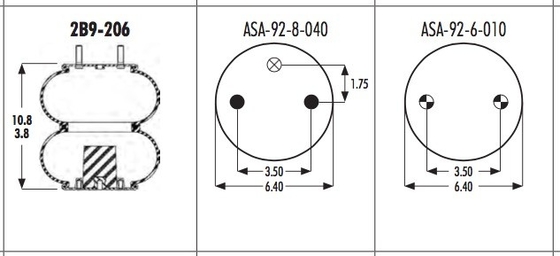

2B9-206 Goodyear Air Spring Technical parameters
❶Nut / Blind Nut
Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
Screw center distance of bottom cover plate: 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 44.5 mm

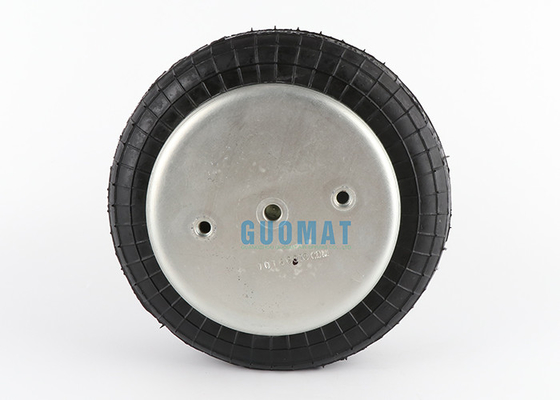

❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
2B9-206 Goodyear Air Spring Cross others OEM
| OEM Reference | OEM Reference |
|
Goodyear:2B9-206 Goodyear:2B9 206 Goodyear:2B9206 Goodyear:578-92-3-202 Goodyear:578 92 3 202 Goodyear:578923202 |
Firestone: 6905 Firestone:W01-358-6905 Firestone:W01 358 6905 Firestone:W013586905 |
|
ContiTech: 64510 ContiTech:FD 200-19 315 CI 1/4 NPT ContiTech:FD 200 19 315 CI 1/4 NPT ContiTech:FD200-19 315 CI 1/4 NPT |
WATSON & CHALIN AS-0020 |
| AUTOMANN | INT’L/NAVISTAR |
| ABSP2B12R-6905 | 1685175C1 |
| CONTI | LOAD GUARD |
| 64510 | SC2071 |
| FD 200-19 315 | RIDEWELL |
| DAYTON | 1003586905C S-2845-C |
| 354-6905 | TAURUS |
| E-Z RIDE | AS218-6905 |
| 8030120 | TRIANGLE |
| FIRESTONE | 4315 |
| 6905 W013586905 | TRP |
| HENDRICKSON | AS69050 |
| 45843-1 B-3518 B-5270 |
Air spring supplier brand name: ContiTech
Reference model: 161293
Competitor or supplier number: FD20019315
Air spring supplier brand name: Goodyear
Reference model: 578923202
Competitor or supplier number: 2B9206
Air spring supplier brand name: Goodyear
Reference model: 578923200
Competitor or supplier number: 2B9209
Air spring supplier brand name: Triangle
Reference model: 6325
Competitor or supplier number: 4315
Air Spring Supplier Brand Name: Dayton Parts
Competitor or supplier number: 3546905
Suspension supplier brand name: EZ Ride
Competitor or supplier number: 8030120
Suspension supplier brand name: Hendrickson
Competitor or supplier number: 458431
Suspension supplier brand name: Hendrickson
FSIP OEM: W014556905
Suspension Supplier Brand Name: Hendrickson Trailer
Competitor or supplier number: S3518
Suspension Supplier Brand Name: Hendrickson Trailer
Competitor or supplier number: S5270
Suspension supplier brand name: Kelderman
Suspension supplier brand name: Leland
Competitor or supplier number: SC2071
Suspension supplier brand name: Monaco Coach
Suspension supplier brand name: Navistar
Competitor or supplier number: 1685175C1
Suspension supplier brand name: SAF Netherlands
Competitor or supplier number: 57006905
Suspension supplier brand name: Ridewell
Competitor or supplier number: 1003586905C
Suspension supplier brand name: silent driver
Competitor or supplier number: AS6882
Suspension supplier brand name: Silent Drive
Suspension supplier brand name: Silent Drive
FSIP OEM: W018216882
Suspended supplier: Tuthill Technology
Competitor or supplier number: 6389
Suspension supplier brand name: Watson & Chalin
Competitor or supplier number: AS0020
Firestone Trim: w013586905
| 891-3301 | 20094351 | Y | AIR SPRING BELLOWS | AIR SPRING BELLOWS |
| 57891330500092 | 20810698 | Y | 578913305 CONTI AIR SPRING FLEXMEMB | 578913305 CONTI AIR SPRING FLEXMEMB |
| 57891381250092 | 20810279 | Y | C8125 AIR SPRING FLEX MEMBER | C8125 AIR SPRING FLEX MEMBER |
| 57891383260092 | 20810281 | Y | C8326 AIR SPRING FLEX MEMBER | C8326 AIR SPRING FLEX MEMBER |
| 57891383740092 | 20810282 | Y | C8374 AIR SPRING FLEX MEMBER | C8374 AIR SPRING FLEX MEMBER |
| 57892220000000 | 20054259 | Y | 2B9-200 | 2B9-200 |
| 2B9-200 | 20094359 | N | 2B9-200 Bellows Air Spring | 2B9-200 Bellows Air Spring |
| 57892220000018 | 20094363 | Y | ENIDINE YI-2B9-200 | ENIDINE YI-2B9-200 |
| 57892220000019 | 20094364 | Y | ENIDINE YI-2B9-200 | ENIDINE YI-2B9-200 |
| 57892220000027 | 20142473 | Y | 2B9-200 | 2B9-200 |
| 57892220000038 | 20491818 | Y | 2B9-200 HENDRICKSON B-8768 | 2B9-200 HENDRICKSON B-8768 |
| 2B9-200 MDC | 20837711 | 2B9-200 MDC | 2B9-200 MDC | |
| 57892220100000 | 20094371 | Y | 2B9-201 | 2B9-201 |
| 2B9-201 | 20035779 | N | 2B9-201 Bellows Air Spring | 2B9-201 Bellows Air Spring |
| 57892220100019 | 20094375 | Y | ENIDINE YI-2B9-201 | ENIDINE YI-2B9-201 |
| 57892220400000 | 20094388 | Y | 2B9-204 | 2B9-204 |
| 57892220400004 | 20116429 | Y | 2B9-204 | 2B9-204 |
| 57892220400019 | 20094391 | Y | ENIDINE YI-2B9-204 | ENIDINE YI-2B9-204 |
| 57892220500000 | 20094392 | Y | 2B9-205 | 2B9-205 |
| 57892220500004 | 20116520 | Y | 2B9-205 | 2B9-205 |
| 57892220500019 | 20094393 | Y | ENIDINE YI-2B9-205 | ENIDINE YI-2B9-205 |
| 57892220600000 | 20094395 | Y | 2B9-206 | 2B9-206 |
| 2B9-206 | 20094396 | N | 2B9-206 Bellows Air Spring | 2B9-206 Bellows Air Spring |
| 57892220630000 | 20099598 | Y | 2B9-206 | 2B9-206 |
| 57892220800000 | 20094409 | Y | 2B9-208 | 2B9-208 |
| 57892220800004 | 20116521 | Y | 2B9-208 | 2B9-208 |
