| Place of Origin: | GUANGZHOU CHINA(MAIN LAND) |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1R8-034 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | CARTON/CARTONS |
| Delivery Time: | 5-10 work days |
| Payment Terms: | T/T, L/C,PayPal |
| Supply Ability: | 1000 |
| TYPE: | ROLLING LOBE AIR SPRING | GUOMAT NUMBER: | 1R8-034 |
|---|---|---|---|
| MATERIAL: | NATRAL RUBBER | PACKAGE: | STRONG CARTONS |
| MODEL: | TRUCK | WARRANTY: | 12 MONTHS |
| CONDITION: | NEW | SITUATION: | WITH PISTON |
| Firestone: | W013585710 | ||
| High Light: | Rubber Goodyear Air Spring,566-16-3-007,Goodyear Rolling Lobe Air Spring |
||
1R8-034 Goodyear Air Spring Bellows 566-16-3-007 Truck Air Springs Rolling Lobe Air Spring
Product Information
| FIRESTONE | LES AUTOBUS |
| 5710 | 10530086 698934 G5001705 |
| 5730 W013585710 W013585730 | NOVABUS |
| FLXIBLE | G5001705 G5001706 |
| 6-304-156 6-336-175 | PREVOST |
| GMC | 63-0226 |
| 10530086 6617550 698634 | |
| GMC CONT. | |
| 8870484 G5008051 |
| Maximum Diameter @ 100 PSIG (mm) | 231.14 | Design Height | 9 |
| Maximum Height (mm) | 322.58 | Load (at Design Height) at: 40 psig (pounds) | 1190 |
| Maximum Stroke (mm) | 195.58 | Load (at Design Height) at: 60 psig (pounds) | 1890 |
| Minimum Usable Height (mm) | 127 | Load (at Design Height) at: 80 psig (pounds) | 2570 |
| Force @ 80PSI at Stroke of 1 Inch (pounds) | 2790 | Natural Frequency (@80 psig) (cpm) | 86 |
| Force @ 80PSI at Stroke of 3 Inch (pounds) | 2570 | % of Isolation at Forced Frequency 400 CPM | 95.1 |
| Force @ 80PSI at Stroke of Maximum Stroke (pounds) | 1720 | % of Isolation at Forced Frequency 800 CPM | 98.8 |
| Style Cross-Ref Extended Height (Similar End Closure) Style Number | 1T14C3 | % of Isolation at Forced Frequency 1500 CPM | 99.7 |
| Material | 2-Ply Standard Cord | Blind Nut Centers (mm) | 88.9 |
| Bead plate Type | 3 | Port Offset from Blind Nut Centerline (mm) | 44.45 |
ABOUT US...
Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT.Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system.They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering qualitygoods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!
The warranty period of Air Spring
GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.
Our air spring provide high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.
Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.

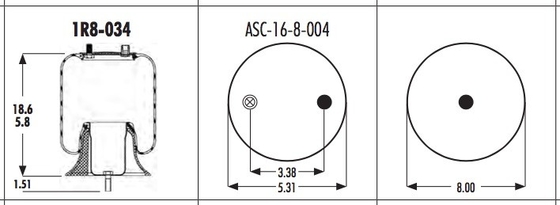

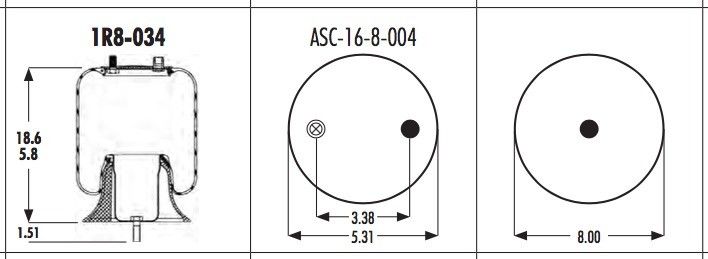

The drawing of Goodyear Air Spring 1R8-034:
| 1R8-005 | 20116545 | N | 1R8-005 | 1R8-005 |
| 56616200500019 | 20091915 | Y | ENIDINE YI-1R8-005 | ENIDINE YI-1R8-005 |
| 56616200800000 | 20091916 | Y | 1R8-008 | 1R8-008 |
| 56616200800004 | 20128713 | Y | 1R8-008 | 1R8-008 |
| 1R8-009 | 20116546 | Y | 1R8-009 | 1R8-009 |
| 56616200900019 | 20091919 | Y | ENIDINE YI-1R8-009 | ENIDINE YI-1R8-009 |
| 56616202600000 | 20091926 | Y | 1R8-026 GMCAN 661758-CTD | 1R8-026 GMCAN 661758-CTD |
| 56616202600004 | 20256421 | Y | 1R8-026 (SERVICE ASSLY FOR 1R8-025) | 1R8-026 (SERVICE ASSLY FOR 1R8-025) |
| 56616203100000 | 20091930 | Y | 1R8-031 | 1R8-031 |
| 1R8-031 | 20213199 | N | 1R8-031 Rolling Lobe Air Spring | 1R8-031 Rolling Lobe Air Spring |
| 56616203400000 | 20091932 | Y | 1R8-034 | 1R8-034 |
| 1R8-034 | 20035773 | N | 1R8-034 Rolling Lobe Air Spring | 1R8-034 Rolling Lobe Air Spring |
| 56616203600000 | 20091934 | Y | 1R8-036 NOVABUS N21126 USE 1S8-003 | 1R8-036 NOVABUS N21126 USE 1S8-003 |
| 1R8-036 | 20116548 | N | 1R8-036 OBS USE 20580423 (1S8-003) | 1R8-036 OBS USE 20580423 (1S8-003) |
| 56616203900000 | 20091935 | Y | 1R8-039 | 1R8-039 |
| 56616204100000 | 20324100 | Y | 1R8-041 | 1R8-041 |
| 1R8-041 | 20672697 | Y | 1R8-041 | 1R8-041 |
| 56616204200094 | 20806149 | Y | C 1R8-034 | C 1R8-034 |
| 56616204300094 | 20811328 | Y | C 1R8-005 | C 1R8-005 |
| 56616204400094 | 20811329 | Y | C 1R8-009 | C 1R8-009 |
| 56616600000000 | 20091939 | Y | GMC 2392283-8IN-LOWER | GMC 2392283-8IN-LOWER |
| 56616600003000 | 20091941 | Y | 16600003 8" LR | 16600003 8" LR |
| 56616600100000 | 20091942 | Y | 8" LOWER RETAINER | 8" LOWER RETAINER |
| 56616601800000 | 20091945 | Y | 8"LOWER RETAINER | 8"LOWER RETAINER |
| 56616602200000 | 20091946 | Y | GMC 2024788 9IN LOWER | GMC 2024788 9IN LOWER |
| 56616630000000 | 20091947 | Y | GMC 10537784 8"CDLR | GMC 10537784 8"CDLR |
| 56616630003000 | 20091948 | Y | GMC 8"CTD LR 2392283 | GMC 8"CTD LR 2392283 |
| 56616701700000 | 20091954 | Y | GMC 2024789 16-7-017PN | GMC 2024789 16-7-017PN |
| 616-7021 | 20146049 | Y | BIG SPRINGS PLASTIC | BIG SPRINGS PLASTIC |
| 56616800000000 | 20091957 | Y | GMC 2392286-8IN UPPER | GMC 2392286-8IN UPPER |
| 56616901500000 | 20091961 | Y | NAVISTAR 2502601C1 169 015 | NAVISTAR 2502601C1 169 015 |
