Place of Origin: | Guangdong,China |
Brand Name: | Goodyear |
Certification: | ISO/TS16949:2009 |
Model Number: | 3B12-304 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | Goodyear: | 3B12-304 |
---|---|---|---|
Gas Hole: | 1/4NPTF | Screw Tooth: | 3/8-16UNC |
Screw Center Distance: | 157.5 Mm | Cover Plate Diameter: | 228.6 Mm |
Pressure Ability: | 0.2-0.8 M Pa | Stroke: | 120~457 Mm |
Net Weight: | 7.5 Kg | Package Size: | 33 X 33 X 22 Cm |
High Light: | W013588006,1/4 NPT Goodyear Air Springs,3/8-16UNC Goodyear Air Springs |

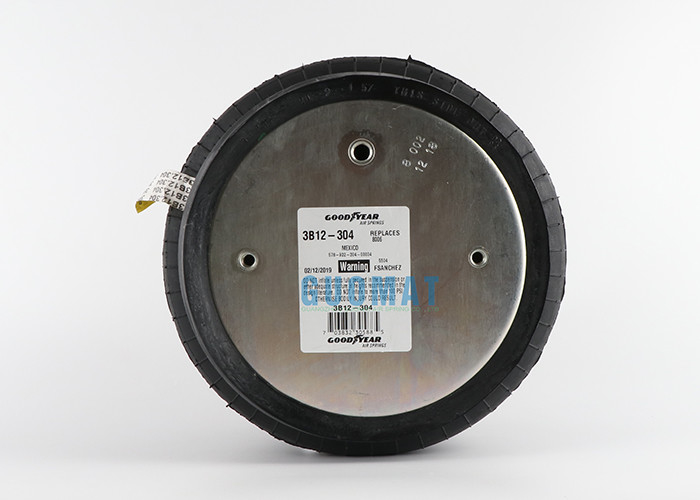

W013588006 Firestone Air Spring Super Goodyear Air Springs TRIANGLE 4430 For TRP ASP1710
W013588006 Firestone Air Spring 3B12-304 Cross others OEM
Firestone: 8006;
Firestone:W01-358-8006
Firestone:W01 358 8006
Firestone:W013588006
Firestone: 8013;
Firestone:W01-358-8013
Firestone:W01 358 8013
Firestone:W013588013
Firestone Flexmember Number- 38D
Goodyear 3B12-304
Goodyear 3B12 304
Goodyear 3B12304
Goodyear Flexmember 578-93-3-100
Goodyear Flexmember 578 93 3 100
Goodyear Flexmember 578933100
Triangle spring: 4430
Triangle spring: 4503
Kangdi Technology: 64568
Suspension company: 200620
batco: 10-98006
UCF / Impex: AB-3B12-304
T.W. Distribution: AB8006
Dallas Spring: AS8006
Midland / Haldex: CS312304
Euclid / Meritor Aftermarket: E-FS8006
Euclid / Meritor Aftermarket: FS8006
Kangdi Technology: FT330-29503
Leland: SC2132
Another similar kind 3B12-305, only Air Fitting Size (in) 3/4 is not the same.
W013588006 Firestone Air Spring 3B12-304 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 73 mm
❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
