1R9-038 Goodyear Air Spring Flexmember 566-18-3-101 For GMC 2021085

1R9-038 Goodyear Air Spring Flexmember 566-18-3-101 For GMC 2021085

  • 1R9-038 Goodyear Air Spring Flexmember  566-18-3-101 For GMC 2021085
1R9-038 Goodyear Air Spring Flexmember  566-18-3-101 For GMC 2021085
Product Details:
Place of Origin: Guangdong , China
Brand Name: GOODYEAR
Certification: ISO/TS16949
Model Number: 1R9-038
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,Steel Piston GOODYEAR: 1R9-003
Other Name: GOODYEAR Rolling Lobe Air Spring Cover Plate OD: 5.31 Inch
PISTON: 566-16-7-017 ALUMINUM Bellows NO.: 566-18-3-101
High Light:

1R9-038

,

566-18-3-101

1R9-038 Goodyear Air Spring Flexmember Number 566-18-3-101 For GMC 2021085





1R9-038 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.

1R9-038 Goodyear Air Spring-Rolling Air Bag 1R9-038 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-18-3-101, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.





OEM Cross Number:



Manufacturer GOODYEAR
Brand GOODYEAR

GOODYEAR 1R9-030;

GOODYEAR Part NO.1R9 038;

GOODYEAR Part NO.1R9038.

GOODYEAR Bellows NO. 566-18-3-101;

GOODYEAR 566 18 3 101;

GOODYEAR PISTON 566-16-7-017
Firestone W01-358-5406
ContiTech 6 6.5-13 S 039
Granning 1971
GMC 2021085

AUTOMANN GMC

AB1DK10B-5406 2021085

667512A 667512C 716111

GRANNING

CONTI

6 6 5-13 S 039 68121

FIRESTONE

1971 W013585406





OEM Suspension Supplier Number:



Goodyear#: 1R9-038
Bellows type: rolling leaf
Ultraman bellows#: 1DK10B
Firestone bellows#: Not applicable
Goodyear Bellows#: 566-18-3-010
Contitech bellows#: 6 6.5-13
Triangle bellows#: Not applicable

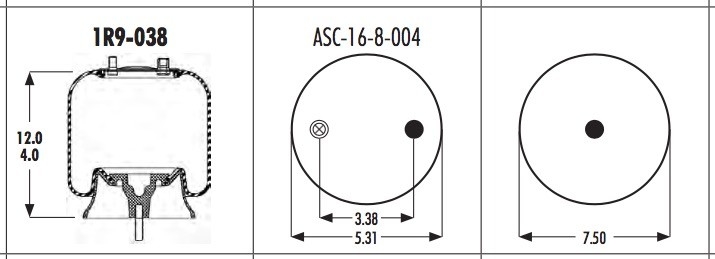

Base plate/neutron type: aluminum
Number of top plate holes/studs: 2
Top plate diameter: 5.31
Top plate C to C diameter: 3.38
Base plate hole bolt Qyt: 1
Base plate diameter: 7.5
Diameter of base plate C to C: N/A
Base plate part number: 566-16-7-017
Bottom plate alignment: parallel
Bumper: No
Bracket: Not applicable
Minimum height: 4
Maximum height: 12





1R9-038 Goodyear Air Spring Flexmember  566-18-3-101 For GMC 2021085 0



56618200300000 20091962 Y 1R9-003 1R9-003
1R9-003 20116549 N 1R9-003 Rolling Lobe Air Spring 1R9-003 Rolling Lobe Air Spring
56618200300019 20091964 Y ENIDINE YI-1R9-003 ENIDINE YI-1R9-003
56618200900000 20091966 Y 1R9-009 1R9-009
56618200900004 20116550 Y 1R9-009 1R9-009
56618200900019 20091967 Y ENIDINE YI-1R9-009 ENIDINE YI-1R9-009
56618202500000 20155852 Y 1R9-025 1R9-025
1R9-025 20161160 N 1R9-025 Rolling Lobe Air Spring 1R9-025 Rolling Lobe Air Spring
56618202500034 20091971 Y 1R9-025 NEWAY 90557049-9IN-ASSY 1R9-025 NEWAY 90557049-9IN-ASSY
56618203200000 20091972 Y 1R9-032 GMC 667512A 9IN RBRASY 1R9-032 GMC 667512A 9IN RBRASY
1R9-037 20091975 N 1R9-037 1R9-037
56618203800000 20091976 Y 1R9-038 1R9-038
1R9-038 20091978 N 1R9-038 Rolling Lobe Air Spring 1R9-038 Rolling Lobe Air Spring
56618204000000 20091980 Y 1R9-040 1R9-040
56618204000004 20116551 Y 1R9-040 1R9-040
56618204000019 20156949 Y ENIDINE YI-1R9-040 ENIDINE YI-1R9-040
56618204200000 20091981 Y 1R9-042 1R9-042
56618204200004 20116553 Y 1R9-042 1R9-042
56618204200019 20091982 Y ENIDINE YI-1R9-042 ENIDINE YI-1R9-042
56618204400000 20091984 Y 1R9-044 1R9-044
1R9-044 20143587 N 1R9-044 1R9-044
56618204700000 20091985 Y 1R9-047 1R9-047
1R9-047 20116554 N 1R9-047 Rolling Lobe Air Spring 1R9-047 Rolling Lobe Air Spring
56618205300000 20091988 Y 1R9-053 1R9-053
1R9-053 20116555 N 1R9-053 Rolling Lobe Air Spring 1R9-053 Rolling Lobe Air Spring
56618205400000 20091989 Y 1R9 054 NAVISTAR 2013947C2 1R9 054 NAVISTAR 2013947C2
1R9-054 20113207 N 1R9-054 Rolling Lobe Air Spring 1R9-054 Rolling Lobe Air Spring
56618205600000 20091991 Y 1R9 056 NAVISTAR 2013948C2 1R9 056 NAVISTAR 2013948C2
1R9-056 20091992 N 1R9-056 Rolling Lobe Air Spring 1R9-056 Rolling Lobe Air Spring
56618205800000 20091994 Y 1R9-058 1R9-058
56618206200000 20091995 Y 1R9-062 1R9-062
56618206300000 20091996 Y 1R9-063 NEWAY 90557222 1R9-063 NEWAY 90557222
1R9-063 20183036 N 1R9-063 1R9-063
56618206300015 20184203 Y 1R9-063 1R9-063
56618206500000 20091997 Y 1R9-065 1R9-065
1R9-065 20091998 N 1R9-065 Rolling Lobe Air Spring 1R9-065 Rolling Lobe Air Spring
56618206800000 20092003 Y 1R9-068 1R9-068
56618207000000 20106786 Y 1R9-070 1R9-070
1R9-070 20108948 N 1R9-070 Rolling Lobe Air Spring 1R9-070 Rolling Lobe Air Spring
1R9-071 20110930 N 1R9-071 1R9-071
1R9-071 20672698 Y 1R9-071 1R9-071
56618207200000 20112686 Y 1R9-072 1R9-072
56618207300004 20113300 Y 1R9-073 1R9-073
56618207400000 20125232 Y 1R9-074 1R9-074
56618207400004 20125233 Y 1R9-074 1R9-074
1R9-076 20176537 N 1R9-076 1R9-076
56618207600004 20176538 Y 1R9-076 1R9-076
56618208000000 20324101 Y 1R9-080 1R9-080
56618208100004 20579188 Y 1R9-081 1R9-081
