Flxible 6-336-209 1R10-019 Goodyear Air Spring Flexmember 566-22-3-022

1R10-019 Goodyear Air Spring Flexmember 566-22-3-022 FIRESTONE W013589115 For FLXIBLE 6-336-209

1R10-019 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.

1R10-019 Goodyear Air Spring-Rolling Air Bag 1R10-019describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-22-3-022, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.

OEM Cross Number:

Manufacturer GOODYEAR
Brand GOODYEAR

GOODYEAR 1R10-019;

GOODYEAR Part NO.1R10 019;

GOODYEAR Part NO.1R10019.

GOODYEAR Bellows NO. 566-22-3-022;

GOODYEAR 566 22 3 022;

GOODYEAR 566223022;

GOODYEAR PISTON 566-20-7-240 COMPOSITE

OEM Suspension Supplier Number:

Goodyear Number: 1R10-019

Bellows type:

Ultraman Bellow Number:

Firestone bellows Number:

Goodyear Bellows Number: 566-22-3-022

Contitech bellows Number:

Triangle bellows Number:

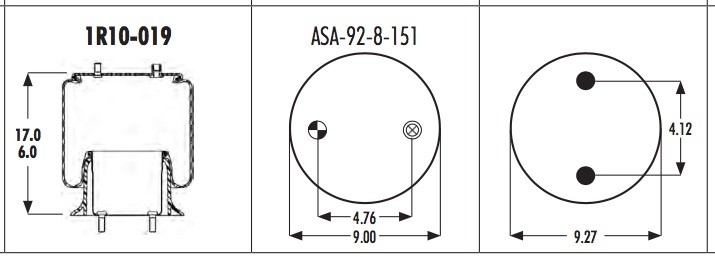

Base plate/neutron type: composite material

Number of top plate holes/studs: 2

Top plate diameter: 9

Top plate C to C diameter: 4.76

Base plate hole bolt Qyt: 2

Diameter of bottom plate: 9.27

Diameter of base plate C to C: 4.12

Base plate part number: 566-20-7-240

Bottom plate alignment: 90 degrees

Bumper: No

Bracket: Not applicable

Minimum height: 6

Maximum height: 17
