1R11-018 Goodyear Rolling Lobe Airbag Bellows NO. 566-22-3-006 For KENWORTH K-102-A

1R11-018 Goodyear Rolling Lobe Airbag Bellows NO. 566-22-3-006 For KENWORTH K-102-A

  • 1R11-018 Goodyear Rolling Lobe Airbag Bellows NO. 566-22-3-006 For KENWORTH K-102-A
1R11-018 Goodyear Rolling Lobe Airbag Bellows NO. 566-22-3-006 For KENWORTH K-102-A
Product Details:
Place of Origin: Guangdong , China
Brand Name: GOODYEAR
Certification: ISO/TS16949
Model Number: 1R11-018
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,Steel Piston GOODYEAR: 1R11-018
Other Name: GOODYEAR Rolling Air Spring Cover Plate OD: 7.5 Inch
PISTON: 566-20-7-079 STEEL Bellows NO.: 566-22-3-006
High Light:

CONTI 99-14A322

,

1R11-018

,

Goodyear Rolling Lobe Airbag Bellows

1R11-018 Goodyear Air Spring Rolling Lobe Airbag BELLOWS NO. 566-22-3-006 CONTI 99-14A322 For KENWORTH K-102-A





1R11-018 this kind of air spring is produced by Goodyear.We imported this kind of air spring from Amercia.

1R11-018 Goodyear Air Spring-Rolling Air Bag 1R11-018 describes Goodyear's sleeve type air spring will use a flexible member without internal molded beads. The bladder model is 566-22-3-006, and the flexible piece is connected to the end of the holder by pinching the material between the end and the external crimping ring, and then adjusting it to an appropriate diameter.





OEM Cross Number:



Manufacturer GOODYEAR
Brand GOODYEAR

GOODYEAR 1R11-018;

GOODYEAR Part NO.1R11 018;

GOODYEAR Part NO.1R11018.

GOODYEAR Bellows NO. 566-22-3-006

GOODYEAR 566 22 3 006

GOODYEAR 566223006;

GOODYEAR PISTON 566-20-7-079



CONTI

99-14A322

DAYTON

352-9073 352-9415

FIRESTONE

9073
9415 W013589415

KENWORTH

K-102-A K-303-5

LOAD GUARD

SC2049

RIDEWELL

1003589073C 1013580708C

TAURUS HENDRICKSON AS103-9073

B-7193

TRIANGLE INT’L/NAVISTAR 8322

554761C1





OEM Suspension Supplier Number:





Goodyear Number: 1R11-018

Bellows type:

Ultraman Bellow Number:

Firestone bellows Number:

Goodyear Bellows Number: 566-22-3-006

Contitech bellows Number:

Triangle bellows Number:

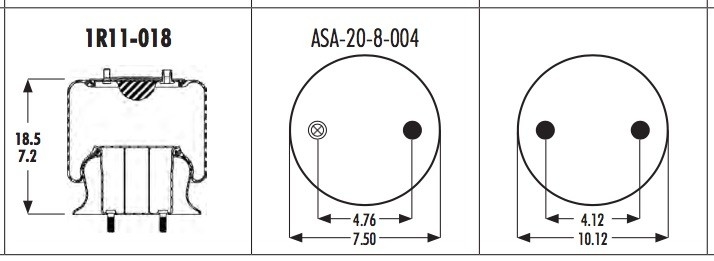

Base plate/neutron type: steel

Number of top plate holes/studs: 2

Top plate diameter: 7.5

Top plate C to C diameter: 4.76

Base plate hole bolt Qyt: 2

Diameter of base plate: 10.12

Diameter of base plate C to C: 4.12

Base plate part number: 566-20-7-079

Bottom plate alignment: parallel

Bumper: No

Bracket: Not applicable

Minimum height: 7.2

Maximum height: 18.5

Air spring 554761C1 8322 9415 AB-1R11-018 AS9415 CS111018 4351 0701 10-99415 E-FS9415 E-FS0701 SC2049 K-303-5 10-99415 10-99073 E-FS9415 E-FS0708 E-FS0701 E-FS9073 0708 9415 0701 B-7193 AB-1R11-018 K-303-5 K-102-A SC2049 554761C1 1013580708C 1003589073C AS103-9073 4351 8322



1R11-018 Goodyear Rolling Lobe Airbag Bellows NO. 566-22-3-006 For KENWORTH K-102-A 0



56622201800000 20054278 Y 1R11-018 1R11-018
1R11-018 20092270 N 1R11-018 Rolling Lobe Air Spring 1R11-018 Rolling Lobe Air Spring
56622202800000 20092289 Y 1R11-028 1R11-028
1R11-028 20035859 N 1R11-028 Rolling Lobe Air Spring 1R11-028 Rolling Lobe Air Spring
56622202800019 20092292 Y ENIDINE YI-1R11-028 ENIDINE YI-1R11-028
1R11-028 PALLET 20476269 N 1R11-028 FOR MDC 1R11-028 FOR MDC
56622203900000 20092301 Y 1R11-039 1R11-039
1R11-039 20092302 N 1R11-039 Rolling Lobe Air Spring 1R11-039 Rolling Lobe Air Spring
56622203900019 20092303 Y ENIDINE YI-1R11-039 ENIDINE YI-1R11-039
56622204400000 20092308 Y PREVST 63-0070 1R11-044 PREVST 63-0070 1R11-044
56622204500000 20092310 Y 1R11-045 1R11-045
1R11-045 20272548 N 1R11-045 Rolling Lobe Air Spring 1R11-045 Rolling Lobe Air Spring
56622204500019 20092311 Y ENIDINE YI-1R11-045 ENIDINE YI-1R11-045
56622204700000 20092315 Y 1R11-047 1R11-047
1R11-047 20116566 N 1R11-047 Rolling Lobe Air Spring 1R11-047 Rolling Lobe Air Spring
56622204900000 20092317 Y 1R11-049 1R11-049
56622205000000 20092319 Y PREVST 1R11-050 PREVST 1R11-050
56622205100004 20595053 Y 1R11-051 1R11-051
56622205100038 20092321 Y 1R11-051 HENDRICKSON B-14147 1R11-051 HENDRICKSON B-14147
56622206400000 20092331 Y 1R11-064 1R11-064
56622206600000 20092338 Y 1R11-066 1R11-066
1R11-066 20092339 N 1R11-066 Rolling Lobe Air Spring 1R11-066 Rolling Lobe Air Spring
56622206700000 20092340 Y 1R11-067 1R11-067
56622207500000 20092348 Y 1R11-075 1R11-075
1R11-075 20092349 N 1R11-075 Rolling Lobe Air Spring 1R11-075 Rolling Lobe Air Spring
56622208000000 20092354 Y 1R11-080 1R11-080
1R11-080 20141251 N 1R11-080 1R11-080
56622208600000 20054279 Y 1R11-086 1R11-086
56622208700000 20092360 Y 1R11-087 1R11-087
56622208800000 20092362 Y 1R11-088 PREVST 63-0104 1R11-088 PREVST 63-0104
1R11-088 20116567 N 1R11-088 Rolling Lobe Air Spring 1R11-088 Rolling Lobe Air Spring
56622208800040 20092363 Y 1R11-088 PREVOST 630104 1R11-088 PREVOST 630104
56622209000000 20092370 Y 1R11-090 PREVOST 63-0106 1R11-090 PREVOST 63-0106
1R11-090 20116569 N 1R11-090 Rolling Lobe Air Spring 1R11-090 Rolling Lobe Air Spring
56622209000040 20092371 Y 1R11-090 PREVOST 630106 1R11-090 PREVOST 630106
56622209400000 20092375 Y 1R11-094 PATLN/ESCO 21439-8D00078-1 1R11-094 PATLN/ESCO 21439-8D00078-1
1R11-094 20436515 N 1R11-094 Rolling Lobe Air Spring 1R11-094 Rolling Lobe Air Spring
56622209500000 20092377 Y 1R11-095 1R11-095
56622209700000 20092383 Y 1R11-097 PREVST 630129 1R11-097 PREVST 630129
1R11-097 20116571 N 1R11-097 Rolling Lobe Air Spring 1R11-097 Rolling Lobe Air Spring
56622209700040 20092384 Y 1R11-097 PREVOST 630129 1R11-097 PREVOST 630129
56622209800040 20092388 Y 1R11-098 PREVOST 630128 1R11-098 PREVOST 630128
56622209900000 20092390 Y 1R11-099 1R11-099
