| Place of Origin: | Guangdong , China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949 |
| Model Number: | 1R12-066 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | Goodyear: | 1R12-066 |
|---|---|---|---|
| Other Name: | Suspension Air Spring | Cover Plate OD: | 228.6 MM |
| Air Inlet / Air Fitting: | M22 | Goodyear Bellow No.: | 566-24-3-038 |
| Watson & Chalin: | AS0113G | Contitech: | 910-16 P 333 |
| High Light: | FIRESTONE W013589083,566-24-3-038,1R12-066 |
||
1R12-066 Goodyear Air Spring 566-24-3-038 CONTI 9 10-16 P 333 FIRESTONE W013589083 For LOAD GUARD SC2036
OEM Cross Number:
Goodyear 1R12-066
Goodyear 1R12 066
Goodyear 1R12066
Goodyear Flexmember 566-24-3-038
Goodyear Flexmember 566 24 3 038
Goodyear Flexmember 566243038
Goodyear Piston 566-20-7-080
Goodyear Piston 566 20 7 080
Goodyear Piston 566207080

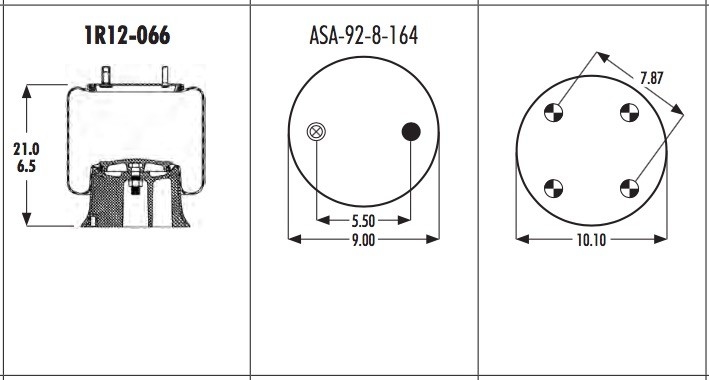

Top Plate Hole/Stud: 2
Bottom Plate Hole/Stud: 4
Top Plate Diameter: 228.6 MM
Bottom Plate Diameter:249 MM
Collapsed Height: 165.1 MM
Flexmember: 566-24-3-038
Piston: 566-20-7-080
CONTI
9 10-16 P 333 64294
DAYTON
352-9069 352-9083
FIRESTONE
9083 W013589083
GRANNING
1359 1528 B59
INT’L/AB1DK23K-9083 NAVISTAR
554763C1
LOAD GUARD
SC2036
RIDEWELL
1003589083C
TAURUS
AS506-9080
TRIANGLE
8333
TRP
AS90830
WATSON & CHALINAS-0018 AS-0028
Goodyear Number: 1R12-066
Bellows type: rolling leaf
Ultraman Bellow Number: 1DK23K
Firestone bellows Number: 1T15M-6
Goodyear Bellows Number: 566-24-3-008
Contitech bellows Number: 9 10-16
Triangle bellows Number: 6363
Base plate/neutron type: aluminum
Number of top plate holes/studs: 2
Top plate diameter: 9
Top plate C to C diameter: 5.5
Base plate hole bolt Qyt: 4
Diameter of bottom plate: 10.1
Diameter of base plate C to C: 7.87
Base plate part number: 566-20-7-080
Bottom plate alignment: 45 degrees
Bumper: No
Bracket: Not applicable
Minimum height: 6.5
Maximum height: 21
GOODYEAR Airbag 8333 1528 554763C1 57009083 8333 M-3514 S-13042 AS506-9080 AS0028 AS9083 AS506-9083 AB9083 9080 AB-1R12-066 9083 B-1561 B59 CS112066 4344 1003589083C 1359 1013589080C 10-99083 E-FS9083 E-FS9080 SC2036 10 -99080 10-99083 M-3514 E-FS9083 E-FS9080 9083 9080 B59 B-1561 1359 1528
| 56622308800092 | 20810691 | Y | 566223088 CONTI AIR SPRING FLEXMEMB | 566223088 CONTI AIR SPRING FLEXMEMB |
| 56622309000092 | 20810692 | Y | 566223090 CONTI AIR SPRING FLEXMEMB | 566223090 CONTI AIR SPRING FLEXMEMB |
| 56622309100094 | 20810923 | Y | C 2B-566223083N Service Flexmember | C 2B-566223083N Service Flexmember |
| 56622309300094 | 20810922 | Y | C 2B-566223082N Service Flexmember | C 2B-566223082N Service Flexmember |
| 56622380100092 | 20810242 | Y | C8010 SNAP-ON AIR SPRING FLEXMEMBER | C8010 SNAP-ON AIR SPRING FLEXMEMBER |
| 56622380130092 | 20810243 | Y | C8013 SNAP-ON AIR SPRING FLEXMEMBER | C8013 SNAP-ON AIR SPRING FLEXMEMBER |
| 56622380140092 | 20810244 | Y | C8014 SNAP-ON AIR SPRING FLEXMEMBER | C8014 SNAP-ON AIR SPRING FLEXMEMBER |
| 56622380170092 | 20810246 | Y | C8017 SNAP-ON AIR SPRING FLEXMEMBER | C8017 SNAP-ON AIR SPRING FLEXMEMBER |
| 56622380180092 | 20810247 | Y | C8018 SNAP-ON AIR SPRING FLEXMEMBER | C8018 SNAP-ON AIR SPRING FLEXMEMBER |
| 56622380370092 | 20810261 | Y | C8037 SNAP-ON AIR SPRING FLEXMEMBER | C8037 SNAP-ON AIR SPRING FLEXMEMBER |
| 56622380430092 | 20810264 | Y | C8043 SNAP-ON AIR SPRING FLEXMEMBER | C8043 SNAP-ON AIR SPRING FLEXMEMBER |
| 56622380660092 | 20810267 | Y | C8066 AIR SPRING FLEX MEMBER | C8066 AIR SPRING FLEX MEMBER |
| 56622380970092 | 20810274 | Y | C8097 AIR SPRING FLEX MEMBER | C8097 AIR SPRING FLEX MEMBER |
| 56624202800000 | 20092641 | Y | PREVST 63-0045 1R12-028 | PREVST 63-0045 1R12-028 |
| 1R12-028 | 20116870 | N | 1R12-028 Rolling Lobe Air Spring | 1R12-028 Rolling Lobe Air Spring |
| 56624205700000 | 20092649 | Y | NEWAY 90557040 1R12-057 | NEWAY 90557040 1R12-057 |
| 1R12-066BULK | 20092650 | N | 1R12-066 | 1R12-066 |
| 1R12-066 | 20035865 | N | 1R12-066 Rolling Lobe Air Spring | 1R12-066 Rolling Lobe Air Spring |
| 56624206900000 | 20054289 | Y | 1R12-069 | 1R12-069 |
| 1R12-069 | 20035866 | N | 1R12-069 Rolling Lobe Air Spring | 1R12-069 Rolling Lobe Air Spring |
| 1R12-069 MDC | 20837719 | 1R12-069 MDC | 1R12-069 MDC | |
| 56624207600000 | 20092677 | Y | 1R12-076 | 1R12-076 |
| 1R12-076 | 20116871 | N | 1R12-076 Rolling Lobe Air Spring | 1R12-076 Rolling Lobe Air Spring |
| 56624209000000 | 20092690 | Y | 1R12-090 | 1R12-090 |
| 1R12-090 | 20035867 | N | 1R12-090 Rolling Lobe Air Spring | 1R12-090 Rolling Lobe Air Spring |
| 56624209200000 | 20054290 | Y | 1R12-092 | 1R12-092 |
| 1R12-092 | 20035868 | N | 1R12-092 Rolling Lobe Air Spring | 1R12-092 Rolling Lobe Air Spring |
