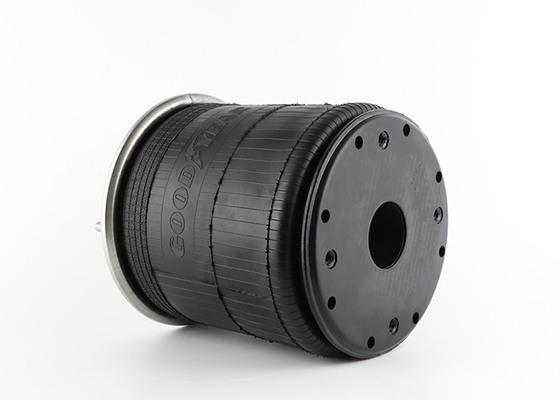

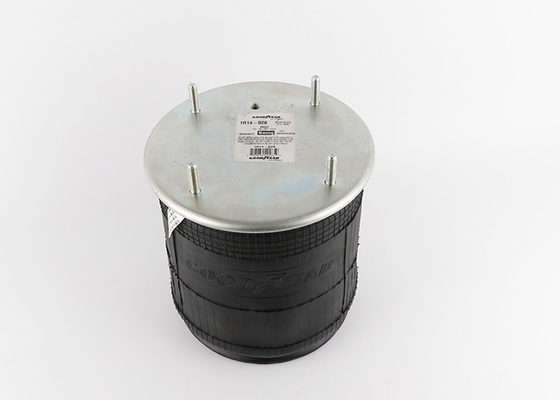

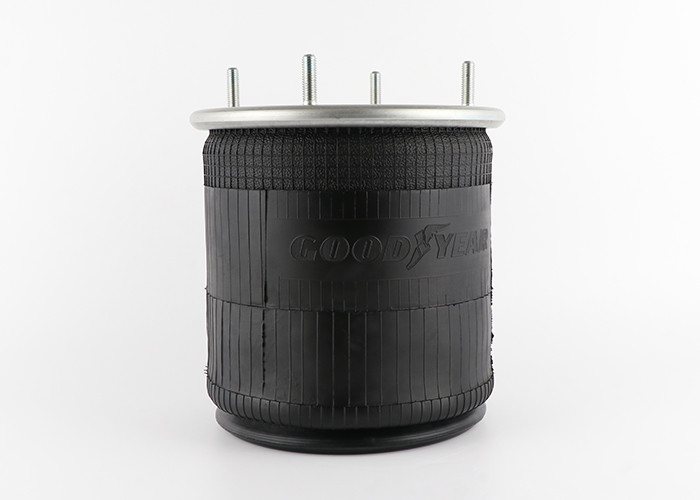

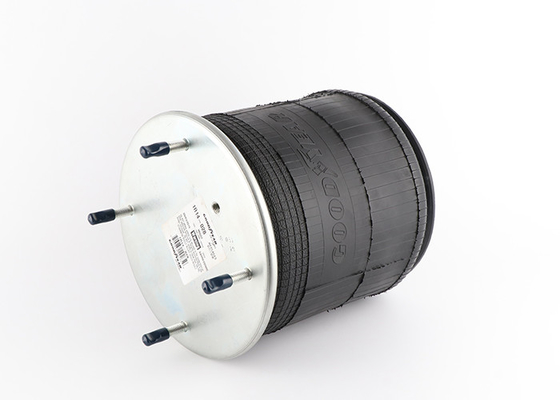

566-28-3-021 Goodyear Air Spring 1R14-028 Firestone W01-358-9177

566-28-3-021 Goodyear Air Spring 1R14-028 Refer to Firestone W01-358-9177 Contitech 11 10.5-17 A 316

Description of 1R14-028 Goodyear Air Spring-Rolling Air Bag:

1R14-028 Goodyear Air Spring's sleeve type air spring will use a flexible member without internal molded beads. The 1R14-028 Goodyear air spring connects the flexible part to the cover end of the holder and the bottom of the piston by pinching the rubber bladder material between the end and the external crimping ring, and then adjusting it to an appropriate diameter. When inflating and damping, the 1R14-028 Goodyear air spring will move up and down along the bottom piston, which has a good damping effect. The vibration isolation rate is over 95%.

Goodyear 1R14-028 Specifications:

Roof hole/stud: 5

Base plate hole/stud: 4

Top plate diameter: 11.3

Base plate diameter: 10.2

Folding height: 7.7

Flexible members: 566-28-3-021

Piston: 566-20-7-096

Piston type: S

OEM Suspension Supplier Number:

Watson &Chalin Part NO.: AS-0010

Goodyear Trim Part NO.: 1R14028

Dayton Part NO.: 352-9177

Firestone Part NO.: W01-358-9177,

Firestone Part NO.: W01-358-9179

Firestone Part NO.: 9177

Firestone Part NO.: 9179

Contitech Part NO.: 11 10.5-17 A 316,

Contitech Part NO.: 11 10.5-17 A 366

Contitech Part NO.: 64342,

Contitech Part NO.: 64345

HDA Part NO.: PMABG9177B

Hendrickson Part NO.: B-2065

Load Guard Part NO.: SC2046

Navistar Part NO.: 554779C1

Neway Part NO.: 90557003

R&S Truck Part NO.: 1090216

Ridewell Part NO.: S-2573C

Ridewell Part NO.: S-4695C

Ridewell Part NO.: S-4797C

Ridewell Part NO.: 1003589177C

Taurus Part NO.: AS621-9177

Taurus Part NO.: AS621-9179

Triangle Part NO.: 8316

Triangle Part NO.: 8366

Triangle spring: 8316
Triangle spring: 8366
Firestone: 9177
Firestone: 9179
Kangdi Technology: 64342
Kangdi Technology: 64345
R & D truck: 1090216
Neway: 90557003
Goodyear Airlines: 566283011
Reedwell: 1003589177C
Batman: 10-99177
Kangdi Technology: 1110.5-17A316
Navistar / IHC: 554779C1
UCF / Impex: AB-1R14-028
T.W. Distribution: AB9177
Neway: AR-1115-1-F
Watson & Chalin: AS0010
Taurus: AS621-9177
Taurus: AS621-9179
Dallas Spring: AS9177
Midland / Haldex: CS114028
Euclid / Meritor Aftermarket: E-FS9177
Euclid / Meritor Aftermarket: E-FS9179
Euclid / Meritor Aftermarket: FS9177
Euclid / Meritor Aftermarket: FS9179
BWP: M-3521
HD USA: PMABG-9177B
Reedwell: S2573C
Reedwell: S4695C
Reedwell: S4797C
Leland: SC2046

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT

❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
