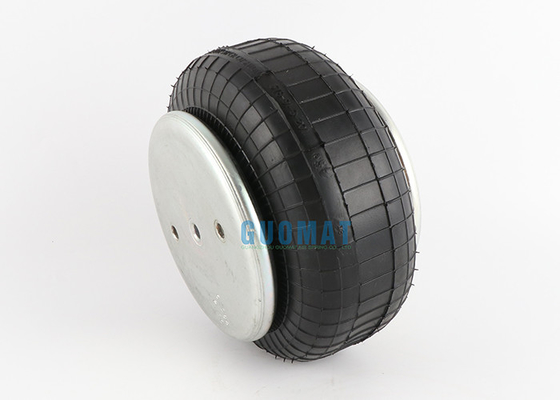

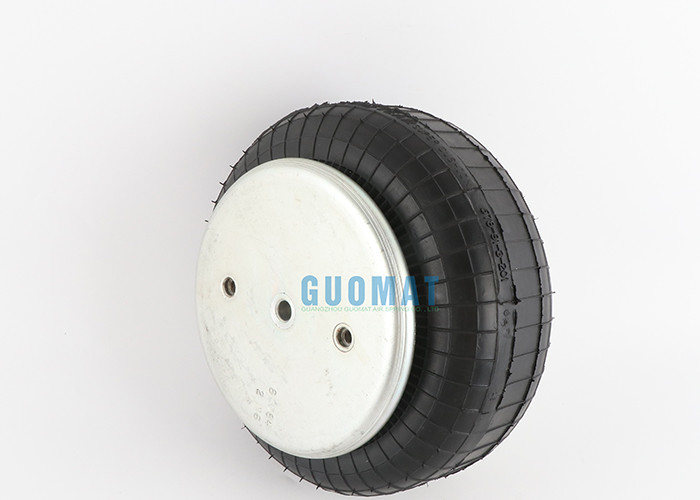

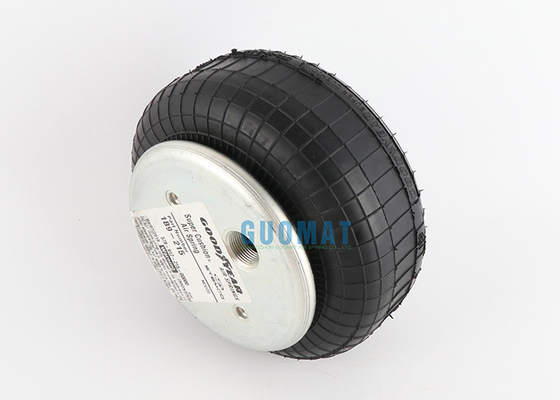

1B9-201 Industrial Air Bags Bellows 578913201 For Agricultural Vehicle

1B9-201 Industrial Air Bags Bellows 578913201 For Agricultural Vehicle

  • 1B9-201 Industrial Air Bags Bellows 578913201 For Agricultural Vehicle
  • 1B9-201 Industrial Air Bags Bellows 578913201 For Agricultural Vehicle
  • 1B9-201 Industrial Air Bags Bellows 578913201 For Agricultural Vehicle
1B9-201 Industrial Air Bags Bellows 578913201 For Agricultural Vehicle
Product Details:
Place of Origin: China
Brand Name: Goodyear
Certification: ISO/TS16949:2009
Model Number: 1B9-201
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel Goodyear: 1B9-201
Warranty: 12 Months Weight: 1.8 Kg
Other Name: Air Springs Pneumatic Suspensions Pressure Ability: 0.2-0.8 M Pa
Goodyear Another OEM: 578 91 3 201
High Light:

578913201

,

1B9-201 Industrial Air Bags Bellows

,

1B9-201

Goodyear Air Spring 1B9-201 Industrial Air Bags Bellows 578913201 For Agricultural Vehicle





OEM Original Equipment Manufacturer:



Goodyear Part NO.: 1B9-201

Goodyear Part NO.: 1B9 201

Goodyear Part NO.: 1B9201

Goodyear Bellows NO.:  578-91-3-201

Goodyear Bellows NO.: 578 91 3 201

Goodyear Bellows NO.: 578913201





Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 89 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT

Center Distance Between Nut and Air inlet: 44.5 mm



Cover Plate

Top Cover Plate Diameter (Width): 160 mm

Bottom Cover Plate Diameter (Width): 160 mm



Rubber Bellows

Rubber Bellows Diameter : 222 mm

Compressed Height: 100 mm / 4.1 inches

Maximum Height: 160 mm

Working Stroke : 60 mm



Bumper block / Buffer block

With Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :No of Girdle Hoop



SPRING FEATURES

LOAD RANGE(ISOLATOR)........

.640-3900|b

DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in

USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in

USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in

ASSEMBLY WE I GHT

FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib

NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in



1B9-201 Industrial Air Bags Bellows 578913201 For Agricultural Vehicle 01B9-201 Industrial Air Bags Bellows 578913201 For Agricultural Vehicle 1
