Place of Origin: | China |
Brand Name: | Goodyear |
Certification: | ISO/TS16949:2009 |
Model Number: | 1B9-204 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Rubber Steel | Goodyear: | 1B9-204 |
---|---|---|---|
Warranty: | 12 Months | Weight: | 1.81 Kg |
Other Name: | Air Springs Pneumatic | Pressure Ability: | 0.2-0.8 M Pa |
Goodyear Another OEM: | 578913201 | ||
High Light: | 1B9-207,2.90 Inch Goodyear Air Shocks,578913201 |

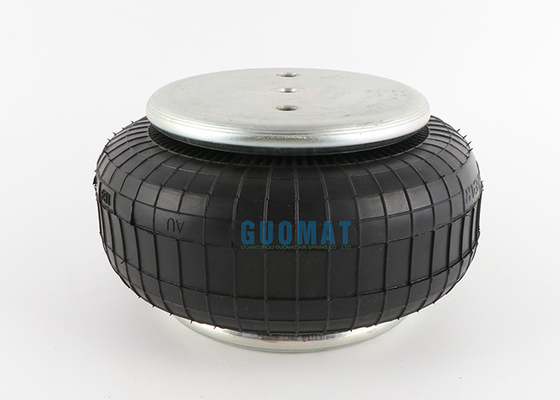

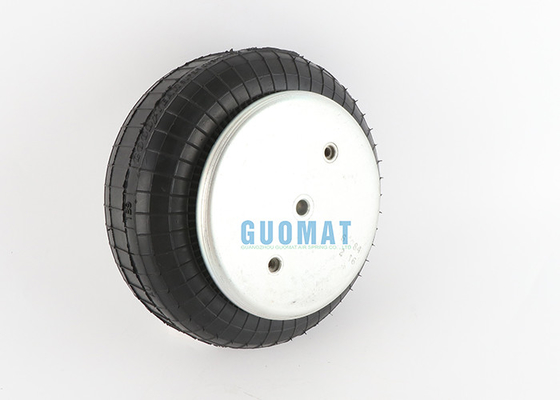

1B9-204 Goodyear Air Spring Auto Parts Flex 578-91-3-201 For Construction Equipment
1B9-204 OEM Original Equipment Manufacturer:
Goodyear Part NO.: 1B9-204
Goodyear Part NO.: 1B9 204
Goodyear Part NO.: 1B9204
Goodyear Bellows NO.: 578-91-3-201
Goodyear Bellows NO.: 578 91 3 201
Goodyear Bellows NO.: 578913201
1B9-204 Goodyear Air Spring Parameter Description:
Maximum stroke 2.90 inches
Height range 4-1/2 to 5 inches
Spring type single convolution
Forced at a maximum stroke of 100 psi 2850 pounds
Load range of 3200 to 3900 pounds at 100 psi
Bumper type none
Air port thread type 3/4 UNC
System natural frequency 2.50 Hz
100 psi (11 inches) in diameter
End plate diameter 6.4 inches
Tap pitch 3-1/2 inches
Port thread standard UNC
Air port thread diameter 3/4 in
Raw latex
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 NPT
Center Distance Between Nut and Air inlet: 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm
❹Rubber Bellows
Rubber Bellows Diameter : 222 mm
Compressed Height: 100 mm / 4.1 inches
Maximum Height: 160 mm
Working Stroke : 60 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :No of Girdle Hoop
SPRING FEATURES
LOAD RANGE(ISOLATOR)........
.640-3900|b
DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in
USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in
USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in
ASSEMBLY WE I GHT
FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib
NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in
Other kinds of goodyear air springs:
57891220700000 | 20094269 | Y | 1B9-207 | 1B9-207 |
57891220700004 | 20116165 | Y | 1B9-207 | 1B9-207 |
57891220700019 | 20094270 | Y | ENIDINE YI-1B9-207 | ENIDINE YI-1B9-207 |
57891220800000 | 20094271 | Y | 1B9-208 | 1B9-208 |
57891220800004 | 20116166 | Y | 1B9-208 | 1B9-208 |
57891220800019 | 20094272 | Y | ENIDINE YI-1B9-208 | ENIDINE YI-1B9-208 |

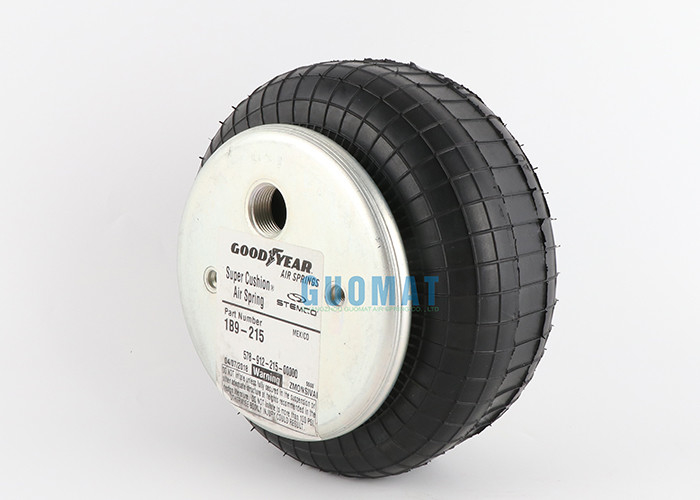

57891221500000 | 20094277 | Y | 1B9-215 | 1B9-215 |
57891221500019 | 20094278 | Y | ENIDINE YI-1B9-215 | ENIDINE YI-1B9-215 |
57891221600000 | 20175039 | Y | 1B9-216 | 1B9-216 |
1B9-216 | 20175183 | N | 1B9-216 | 1B9-216 |
57891230400019 | 20094287 | Y | ENIDINE YI-1B12-304 | ENIDINE YI-1B12-304 |
57891230500000 | 20094288 | Y | 1B12-305 | 1B12-305 |
1B12-305 | 20094289 | N | 1B12-305 Bellows Air Spring | 1B12-305 Bellows Air Spring |
57891230500019 | 20094290 | Y | ENIDINE YI-1B12-305 | ENIDINE YI-1B12-305 |
57891230600000 | 20094292 | Y | 1B12-306 | 1B12-306 |
1B12-306 | 20116168 | N | 1B12-306 Bellows Air Spring | 1B12-306 Bellows Air Spring |
57891231300000 | 20094294 | Y | 1B12-313 | 1B12-313 |
1B12-313 | 20116169 | N | 1B12-313 Bellows Air Spring | 1B12-313 Bellows Air Spring |
57891231300019 | 20094295 | Y | ENIDINE YI-1B12-313 | ENIDINE YI-1B12-313 |
57891231800000 | 20099077 | N | 1B12-318 | 1B12-318 |
57891231800004 | 20565959 | Y | 1B12-318 | 1B12-318 |
57891231800019 | 20094300 | Y | ENIDINE YI-1B12-318 | ENIDINE YI-1B12-318 |
1B12-319 | 20136006 | Y | 1B12-319 KIT | 1B12-319 KIT |
57891232200000 | 20339463 | Y | 1B12-322 | 1B12-322 |
1B12-322 | 20339465 | N | 1B12-322 Bellows Air Spring | 1B12-322 Bellows Air Spring |
57891233200094 | 20810060 | Y | C 1B12-304 | C 1B12-304 |
57891233300090 | 20810061 | Y | C 1B12-313 | C 1B12-313 |
57891233300094 | 20811430 | Y | C 1B12-313 | C 1B12-313 |
57891233400091 | 20810227 | Y | P 1B12-313 | P 1B12-313 |
57891235000000 | 20094304 | Y | 1B14-350 | 1B14-350 |
1B14-350 | 20094305 | N | 1B14-350 Bellows Air Spring | 1B14-350 Bellows Air Spring |
57891235000019 | 20094306 | Y | ENIDINE YI-1B14-350 | ENIDINE YI-1B14-350 |
57891235100000 | 20094308 | Y | 1B14-351 | 1B14-351 |
1B14-351 | 20094309 | N | 1B14-351 Bellows Air Spring | 1B14-351 Bellows Air Spring |
57891235100019 | 20094310 | Y | ENIDINE YI-1B14-351 | ENIDINE YI-1B14-351 |
57891235200000 | 20094312 | Y | 1B14-352 | 1B14-352 |
1B14-352 | 20116210 | N | 1B14-352 | 1B14-352 |
57891235200019 | 20094313 | Y | ENIDINE YI-1B14-352 | ENIDINE YI-1B14-352 |
57891235300000 | 20094314 | Y | 1B14-353 | 1B14-353 |
1B14-353 | 20116211 | N | 1B14-353 | 1B14-353 |
57891235300019 | 20094315 | Y | ENIDINE YI-1B14-353 | ENIDINE YI-1B14-353 |
57891235800000 | 20094316 | Y | 1B14-358 | 1B14-358 |
1B14-358 | 20035777 | N | 1B14-358 Bellows Air Spring | 1B14-358 Bellows Air Spring |
57891236200000 | 20094323 | Y | 1B14-362 | 1B14-362 |
57891236200004 | 20116212 | Y | 1B14-362 | 1B14-362 |
57891236200019 | 20094324 | Y | ENIDINE YI-1B14-362 | ENIDINE YI-1B14-362 |
57891236400000 | 20094325 | Y | 1B14-364 EXT | 1B14-364 EXT |
1B14-364 | 20094326 | N | 1B14-364 | 1B14-364 |
57891236400019 | 20094327 | Y | ENIDINE YI-1B14-364 | ENIDINE YI-1B14-364 |
57891236800094 | 20811431 | Y | C 1B14-352 | C 1B14-352 |
57891237100000 | 20094334 | Y | 1B14-371 | 1B14-371 |
57891237100019 | 20094335 | Y | ENIDINE YI-1B14-371 | ENIDINE YI-1B14-371 |
