| Material: | Rubber Steel | Festo: | EB-165-65 |
|---|---|---|---|
| Warranty: | One Year | Weight: | 1.3 Kg |
| Other Names: | Festo Air Spring Vibration | Pressure Ability: | 0.2-0.8 M Pa |
| Package Dimensions: | 16*16*10 Cm | Brand: | Neutral |
| High Light: | EB16565 Festo Air Spring,Rubber Steel Festo Air Spring,TS16949 Industrial Air Spring |
||

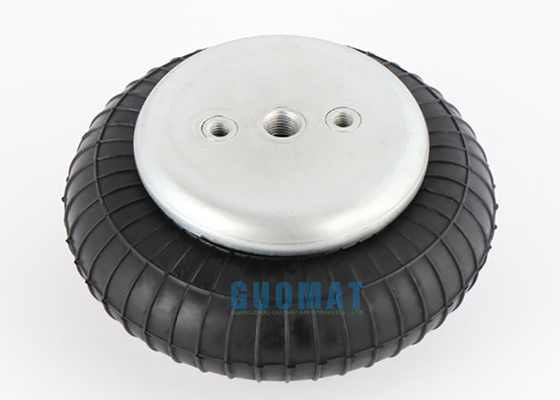

EB-165-65 Festo Air Spring Actuator Contitech FS70-7 Industrial Air Lift Bags For Machine Reduce Vibration
OEM Original Equipment Manufacturer:
| OEM References Numbers |
| GUOMAT PART NO.:1B7070 |
|
Phoenix PART NO. : SP 1 B 05 Phoenix PART NO. : SP1B05 Phoenix PART NO. : SP 1B05 |
| Bosch : 822419002 |
|
Festo PART NO.: EB-165-65 Festo PART NO.: EB 165 65 Festo PART NO.: EB16565 |
|
Weforma PART NO.: WBE 200-E1 Weforma PART NO.: WBE200-E1 Weforma PART NO.: WBE200E1 |
|
Contitech PART NO. : FS 70-7 Contitech PART NO. : FS70-7 Contitech PART NO. : FS707 |
GUOMAT:1B707 Specific parameters and specifications EB-165-65 :
Screw Center Distance of Top Cover Plate : 1.75 inches / 44.5 mm
Screw Center Distance of Bottom Cover Plate : 1.75 inches / 44.5 mm
Rubber Bellows Natural Diameter : 150 mm
Rubber Bellows MAX Diameter:Φ165 mm
The Working Stroke : MAX 110 mm to MIN 50 mm
Maximum Height : 4.33 inches / 110mm
Minimum Height :1.97 inches / 50 mm
Top Plate Hole/Stud: 3 Pieces
Top Plate Hole/Stud: 2 PiecesXM8X1.25
Bottom Plate Hole/Stud: 2 PiecesXM8X1.25
Air inlet:G1/4
Top Cover Plate: 4.13 inches / 105 mm
Bottom Cover Plate Diameter: 4.13 inches / 105 mm
Collapsed Height: 2.36 inches / 60 mm
| 1B7070 Vibration isolation - dynamic characteristic values EB-165-65 | |||||||
| Design height H: recommended 90mm, minimum 70mm | |||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol V [l] |
| Force (Load) [KN] | 2.7 | 3.7 | 4.7 | 5.7 | 6.6 | 7.7 | 9 |
| Spring rate [N/cm] | 1040 | 1270 | 1530 | 1770 | 2060 | 2325 | 9 |
| Natural frequency [Hz] | 3.1 | 2.9 | 2.9 | 2.8 | 2.8 | 2.7 | 9 |
notes:
•The bellows cylinder can only be
Drive the bellows air spring against the workpiece, otherwise the stroke limit stop must be equipped at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the bellows cylinder air spring to the minimum height, a reset force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates must be used to absorb force
•Before disassembling the bellows cylinder air spring, it must be exhausted
• During operation, the rubber bellows air spring must not come into contact with other parts
| 1B7070 Pneumatic application - static characteristic values EB-165-65 | |||||||
| Force F [kN] | |||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
| Height H [mm] 100 | 2.2 | 3.1 | 4 | 4.8 | 5.7 | 6.6 | 1 |
| 90 | 2.7 | 3.6 | 4.6 | 5.6 | 6.5 | 7.5 | 0.9 |
| 80 | 3.1 | 4.1 | 5.1 | 6.2 | 7.3 | 8.3 | 0.8 |
| 70 | 3.4 | 4.5 | 5.6 | 6.7 | 7.9 | 9 | 0.7 |
| 60 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.5 | 0.6 |
