| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-500-4 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Yokohama: | S-500-4r |
|---|---|---|---|
| GUOMAT: | F-500-4 | Layer Number: | 4 Convolutions |
| Using Maximum Internal Pressure: | 0.69 Mpa | Vibration Frequency: | 1.8 Hz |
| Natural DIA.: | 545mm | N.W.: | 13.5 KG |
| High Light: | 500 4 yokohama air spring,yokohama air spring 500 4,paper pulp equipment yokohama air spring |
||

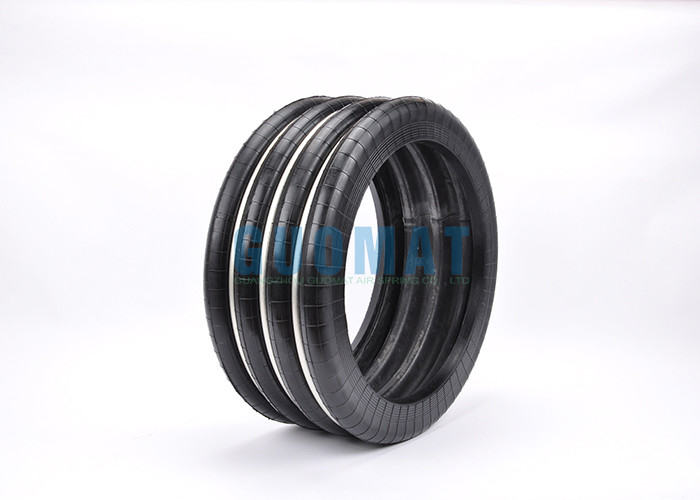

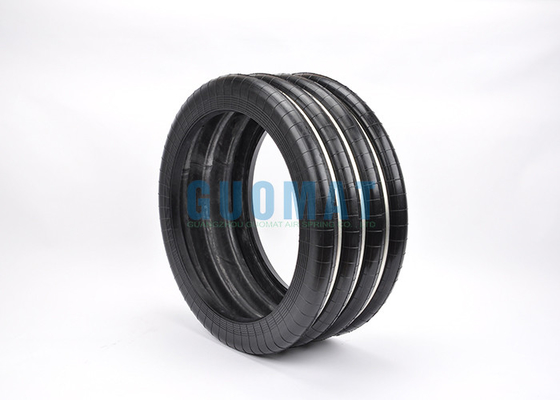

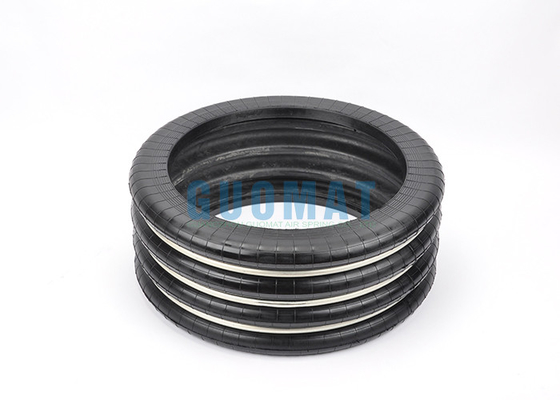

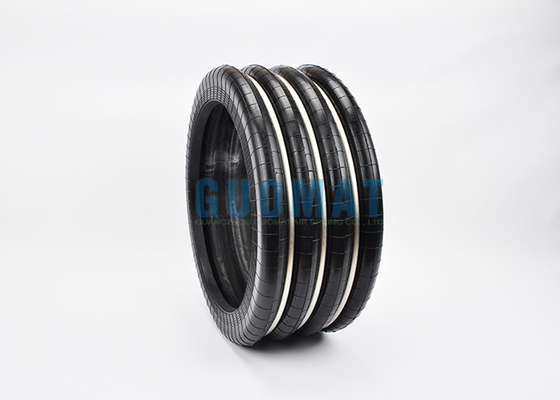

S-500-4 Yokohama Air Spring 500-4 Cross GUOMAT F-500-4 For Paper Pulp Equipment
Description:
GUOMAT F-500-4 This rubber air spring is produced and assembled by natural rubber and steel. Produced by the GUOMAT factory, quality assurance, strict quality inspection, and praised by many customers.
It can replace S-500-4 Yokohama. The size of GUOMAT F-500-4 is the same as S-500-4 Yokohama.
Feature:
1. As shown in the figure, the bellows has less rubber membrane deformation (expansion and contraction) during operation, so excellent durability can be obtained.
2. The main component is rubber, without any sliding parts, so it can be easily maintained without refueling.
As shown in Figure 3, compared with other types of air springs, the air spring can maintain a lower height.
As shown in Figure 4, since air is used as an elastic body, it can gently absorb many loads by using compressed air to absorb shocks. This air spring does not allow other springs to be used together.
5. The internal pressure is changed by compressed air. The pressure that the air spring bears varies greatly, so it can be used in a punch with a larger pressure range.
6. It can be used in conjunction with a height adjustment valve, which can always maintain a constant height to prevent load fluctuations.
As shown in Figure 7, it can be used with auxiliary fuel tanks and throttle valves, and excellent damping effects can be obtained. And can reduce the resonance amplitude.
8. The air spring has a simple structure and is easy to install and disassemble.
GUOMAT F-500-4 For Paper Pulp Equipment
Net Weight:13.5 KG
Gross Weight:15.5 KG
Package Size:228 mm*550mm*550mm

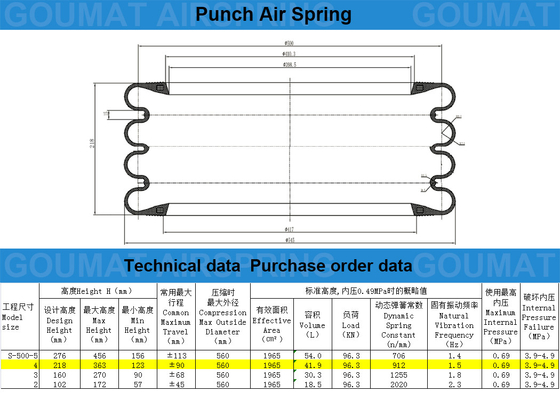

This item GUOMAT F-500-4 Detailed Parameter Table 1:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-500-4 | S-500-4 | 218 | 363 | 123 | ±90 | 560 |
This item GUOMAT F-500-4 Detailed Parameter Table 2:
| Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||
| 1965 | 41.9 | 96.3 | 912 | 1.5 | 0.69 | 3.9-4.9 |
