Seizure Type Air Spring 155146K-1 Single Convoluted For Board and Scrap Handling Conveyors

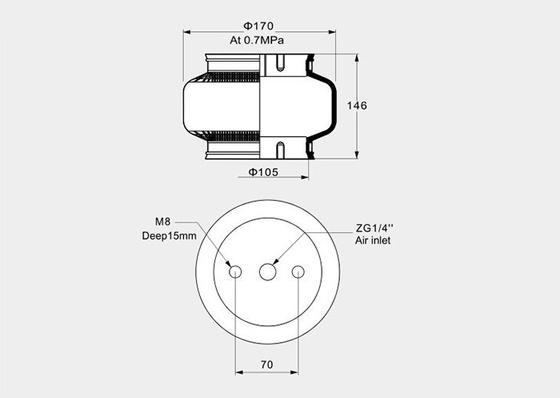

Guomat 155146K-1 Industrial Convoluted Air Spring Specifications
❶Nut / Blind Nut
The Long Of The Nut:15 mm
Top Cover Plate Screw number: 2 pcs
Bottom Cover Plate Screw number : 2 pcs
Top Cover Plate Screw (Nut) Tooth : M8
Screw Center Distance of Top Cover Plate :70 mm
Bottom Cover Plate Screw (Nut) Tooth : M8
Screw Center Distance of Bottom Cover Plate : 70 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
❸ Cover Plate
Top Cover Plate Diameter: 105 mm
Bottom Cover Plate Diameter: 105 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 155 mm
Rubber Bellows MAX Diameter : 170mm
Rubber Bellows Natural Height :146 mm
Stroke:55mm-150mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop: one piece of Girdle Hoop
Quick Size of GUOMAT 155146K-1:
| Model | Path |
0.7Mpa Max |
Capacity | ||
| 0.2Mpa | 0.5Mpa | 0.7Mpa | |||
| 176120K-1 | 123 | 170 | |||
|
0.7Mpa Frequency |
Trip | Weight | |||
| Minimum height | Safe height | ||||
| 55 | 150 | 1.5 | |||
GUOMAT have following K type air spring :All size units are mm:
| Model | Path |
0.7Mpa Max |
Capacity |
0.7Mpa Frequency |
Trip | Weight | |||
| 0.2Mpa | 0.5Mpa | 0.7Mpa | Minimum height | Safe height | |||||
| 155181K-2 | 123 | 170 | 80 | 190 | 1.8 | ||||
| 130118K-2 | 110 | 150 | 80 | 125 | 1.15 | ||||
| 176120K-1 | 136 | 195 | 55 | 130 | 2.1 | ||||
| 155146K-1 | 123 | 170 | 55 | 150 | 1.5 | ||||
| 142146K-1 | 108 | 155 | 55 | 150 | 1.54 | ||||
| 176180K-2 | 136 | 195 | 136 | 403 | 602 | 2.46 | 80 | 192 | 2.35 |
| 142187K-2 | 108 | 155 | 80 | 225 | 322 | 2.99 | 80 | 192 | 1.7 |
| 142156K-2 | 108 | 155 | 51 | 175 | 240 | 2.97 | 80 | 160 | 1.65 |
| 130070K-1 | 110 | 150 | 107 | 304 | 439 | 1.08 | 55 | 90 | 0.95 |
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
