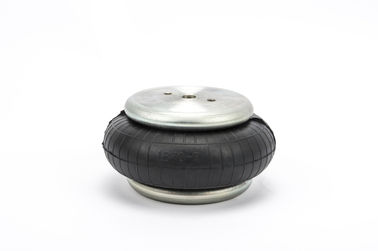

Lift Lifting Equipment Air Spring Industrial Shock Absorber CONTITECH FS 70-7 Phoenix SP1B05
OEM Original Equipment Manufacturer:
| References Numbers |
| Phoenix : SP 1 B 05 |
| Bosch : 822419002 |
| Festo : EB-165-65 |
| Weforma : WBE 200-E1 |
| Contitech : FS 70-7 |
| FS70-7 Technical Parameters | |
| Top Cover Plate Diameter | 105mm |
| Bottom Cover Plate Diameter | 105mm |
| Screw Center Distance | 44.5mm |
| Distance Gas Hole Between Nut | In Middle |
| Gas Hole | G1/4 |
| Screw (Nut) Tooth | 2pcsXM8X1.25 |
| Rubber Bellows MAX Diameter | Φ150 Max. Φ165 |
| The Stroke | 50-115mm |
| 1B7070 Vibration isolation - dynamic characteristic values | |||||||
| Design height H: recommended 90mm, minimum 70mm | |||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol V [l] |
| Force (Load) [KN] | 2.7 | 3.7 | 4.7 | 5.7 | 6.6 | 7.7 | 9 |
| Spring rate [N/cm] | 1040 | 1270 | 1530 | 1770 | 2060 | 2325 | 9 |
| Natural frequency [Hz] | 3.1 | 2.9 | 2.9 | 2.8 | 2.8 | 2.7 | 9 |
| 1B7070 Pneumatic application - static characteristic values | |||||||
| Force F [kN] | |||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
| Height H [mm] 100 | 2.2 | 3.1 | 4 | 4.8 | 5.7 | 6.6 | 1 |
| 90 | 2.7 | 3.6 | 4.6 | 5.6 | 6.5 | 7.5 | 0.9 |
| 80 | 3.1 | 4.1 | 5.1 | 6.2 | 7.3 | 8.3 | 0.8 |
| 70 | 3.4 | 4.5 | 5.6 | 6.7 | 7.9 | 9 | 0.7 |
| 60 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | 9.5 | 0.6 |
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator | ||||
| All Measurements Are In Mm | ||||
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 1B4060 | FS 40-6 | 50 | 160 | 60 |
| 1B5050 | FS 50-5 | 51 | 165 | 44 |
| 1B7070 | FS 70-7 | 51 | 180 | 64 |
| 1B10010 | FS 100-10 | 51 | 225 | 94 |
| 1B1209 | FS 120-9 | 50 | 230 | 85 |
| 1B1210 | FS 120-10 | 51 | 245 | 99 |
| 1B12012 | FS 120-12 | 51 | 250 | 119 |
| 1B20010 | FS 200-10 | 51 | 265 | 89 |
| 1B33011 | FS 330-11 | 51 | 340 | 99 |
Air springs have successfully solved actuating problems,in many applications including:
Lift lifting equipment,
Gasbag press equipment,
Vibration conveyer air spring,
Vibrating screen equipment air spring,
Air hammer
Air spring vibration testing machine
Casting machinery,
4 d cinema seats air spring,
Air spring press equipment,
Air spring vibration isolation equipment testing platform,
Isolation instrument air spring,
Bus stop air spring,
Marble shake air spring,
Laundry dryer air spring equipment,
Amusement equipment, air spring,
Merry-go-round air spring,
Papermaking machinery air spring,
Punching equipment air spring,
Machine tool equipment air spring,
Silk screen equipment mechanical air spring and air spring,
Leather shock vibration sieve air spring air spring,
Mining equipment,
Pipeline equipment air spring,
Watercrafts air spring
The Industrial Equipment use the Air Spring
Gate Valve Operation
Gluing Press
Web Tensioning Device
Missile Assembly Fixture
Die Stripper
Knife Spring Actuator
