| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | W01-358-7325 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | Goodyear: | 2B8-550 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 3.0kg |
| Other Name: | Air Springs For Industry | Pressure Ability: | 2-8 M Pa |
| High Light: | air helper springs,air suspension parts |
||

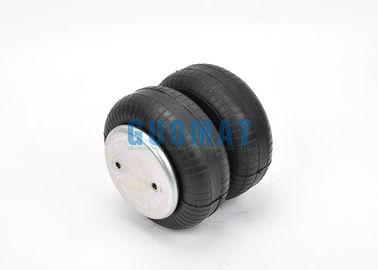

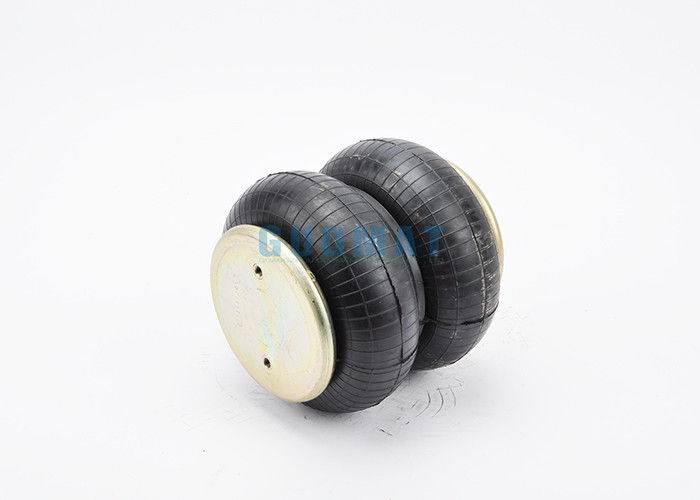

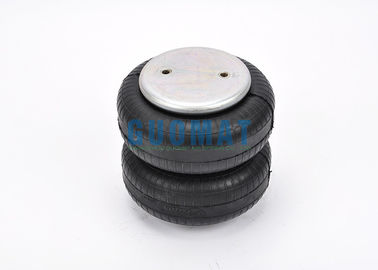

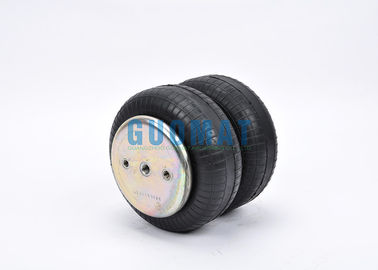

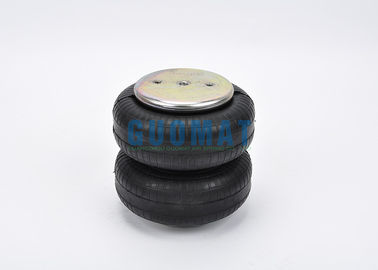

Firestone W01-358-7325 Force Devices For Die Cutting And Stamping Air Shock 2B8-550
Description:
GUOMAT 2B7325 Replaces W01-358-7325 offers different types of air springs and air shock absorbers to meet your actuation or isolation needs. Single, double and triple bellows, needle rollers and sleeves are available in various sizes. End bracket types are required depending on your specific installation needs. In addition to our air spring series, we also offer various industrial shock absorbers and vibration damping solutions.
GUOMAT 2B7325 Replaces W01-358-7325 air springs are characterized by extremely high durability, precise technical design and cost efficiency and can be used in a variety of actuation and vibration isolation applications.
The GUOMAT 2B7325 Replaces W01-358-7325 gas spring has a proven design combined with a fabric-reinforced flexible Wingprene ™ or natural rubber structure and corrosion-resistant end fixings to provide superior quality and performance. As an actuator, GUOMAT 2B7325 Replaces W01-358-7325 air springs can provide linear or angular movement.
Compared to cylinders, they can isolate vibrations and adjust the load height at the same time, and achieve uniform vibration isolation effects with different loads. These air springs (air shock absorbers) have a good ratio of stroke to pressure height and can accommodate a large number of actuating media such as air, water, nitrogen or antifreeze. As an isolator, the GUOMAT 2B7325 Replaces W01-358-7325 gas spring can effectively reduce the harmful effects of vibrations.
OEM Original Equipment Manufacturer:
| BELLOW NO. | COMPLETE NO. | COMPLETE NO. |
| AIRKRAFT 114050 | AIRKRAFT 113067 | AIRKRAFT 113068 |
| CONTITECH 603 N | CONTITECH FD 120-20 509 | FIRESTONE W01-358-7327 |
| FIRESTONE FLEX 26 | FIRESTONE W01-358-7325 | GOODYEAR 2B8-552 |
| FIRESTONE W01 358 0142 | GOODYEAR 2B8-550 | |
| PIRELLI 26 |
Blind nuts, 1/4 NPT WO1-358-7325,Goodyear Part # 2B8-150 Goodyear-Firestone Cross Reference‚ 2B8-153 Goodyear-Firestone Cross Reference‚ 2B8-550 Goodyear-Firestone Cross Reference‚ 2B8-553 Goodyear-Firestone Cross Reference‚ 2B8-554 Goodyear-Firestone Cross Reference
Blind nuts, 3/4 NPT WO1-358-7327,Goodyear Part # 2B8-152 Goodyear-Firestone Cross Reference‚ 2B8-154 Goodyear-Firestone Cross Reference‚ 2B8-552 Goodyear-Firestone Cross Reference
bolts, nuts, washers
WO1-358-7333:W01-358-7333, W013587333, WO1-358-7333, WO13587333
Rubber bellows only WO1-358-0142
Triangle spring: 4509
Firestone: W01-358-7325
ContiTech: 64601
US Operator: 8003006
Group power: 57007325
batco: 10-97325
Mark: 227QS-32
Mark: 57QK113
American Airlines: 8003-006
UCF / Impex: AB-2B8-550
Midland / Haldex: CS208550
Euclid / Meritor Aftermarket: E-FS7325
ContiTech: FD120-17509
Euclid / Meritor Aftermarket: FS7325
BWP: M-3557
Compression height: 3.12 inches
Roof number: 3450
Roof width: 5.31 inches
Piston number: 3436
Piston width: 5-31 inches
Firestone Bellows Number: 26
Goodyear part number: 2B8-150 / 2B8-153 / 2B8-550
Goodyear Bellows No .: 579-92-3-530
American Airlines Number: 8003-006
Hendrickson Trailer ID: S-14395
Mark Number: 227QS-32
Triangle part number: 4509
Triangle bellows number: 6392
Watson & Charin ID: AS-0030
Sauer Code: P10-754
The usal kinds of Single Convolution Air Actuator
| Double Convolution Air Actuator | ||||
| All Measurements Are In Mm | ||||
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 2B20019 | FD 200-19 | 75 | 265 | 200 |
| 2B20022 | FD 200-22 | 77 | 265 | 218 |
| 2B20025 | FD 200-25 | 77 | 275 | 248 |
| 2B33022 | FD 330-22 | 75 | 340 | 230 |
| 2B33030 | FD 330-30 | 77 | 355 | 283 |
| 2B53022 | FD 530-22 | 77 | 400 | 233 |
| 2B53030 | FD 530-30 | 77 | 415 | 273 |
| 2B53035 | FD 530-35 | 77 | 420 | 313 |
| 2B96022 | FD 960-22 | 95 | 490 | 225 |
| 2B133025 | FD 1330-25 | 92 | 570 | 243 |
Use in many applications including:
Lift lifting equipment,
Gasbag press equipment,
Vibration conveyer air spring,
Vibrating screen equipment air spring,
Air hammer
Air spring vibration testing machine
Casting machinery,
4 d cinema seats air spring,
Air spring press equipment,
Air spring vibration isolation equipment testing platform,
Isolation instrument air spring,
Bus stop air spring,
Marble shake air spring,
Laundry dryer air spring equipment,
Amusement equipment, air spring,
Merry-go-round air spring,
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 330 30 323 | FD 330-30 323 | 161314 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 340 | FD 330-30 340 | 161315 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 369 | FD 330-30 369 | 161316 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 370 | FD 330-30 370 | 161317 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 371 | FD 330-30 371 | 161318 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 372 | FD 330-30 372 | 161319 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 373 | FD 330-30 373 | 161320 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 464 | FD 330-30 464 | 161321 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 502 | FD 330-30 502 | 161322 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 512 | FD 330-30 512 | 161323 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 513 | FD 330-30 513 | 161324 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 549 | FD 330-30 549 | 161325 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
