Firestone W01-358-7995 Industrial Air Bags For Isolation Of Flex Testing Machines Air Ride 3B12-329

China Firestone W01-358-7995 Industrial Air Bags For Isolation Of Flex Testing Machines Air Ride 3B12-329 supplier
Firestone W01-358-7995 Industrial Air Bags For Isolation Of Flex Testing Machines Air Ride 3B12-329 supplier Firestone W01-358-7995 Industrial Air Bags For Isolation Of Flex Testing Machines Air Ride 3B12-329 supplier Firestone W01-358-7995 Industrial Air Bags For Isolation Of Flex Testing Machines Air Ride 3B12-329 supplier Firestone W01-358-7995 Industrial Air Bags For Isolation Of Flex Testing Machines Air Ride 3B12-329 supplier

Large Image :  Firestone W01-358-7995 Industrial Air Bags For Isolation Of Flex Testing Machines Air Ride 3B12-329

Product Details:

Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: W01-358-7995

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel And Rubber Goodyear: 3B12-329
Warranty: 12 Months Net Weight: 6.52kg
Other Name: Air Suspension Bags Pressure Ability: 0.2-0.8 M Pa
Gross Weight: 7.13 KG Package Size: 33*33*22CM
Air Inlet: 1/4 NPT

Firestone W01-358-7995 For Isolation Of Flex Testing Machines Air Ride 3B12-329





Cross OEM Original Equipment Manufacturer:



GUOMAT Part NO.:2B6603

GUOMAT Bellows NO.:2B330

Firestone Part Number:W01-358-7995

Firestone Part Number:W013587995

Firestone Part Number:W01 358 7995

Firestone Bellows Number:38

Firestone Top Plate Number:3210

Firestone Piston Number:3183

Contitech : FT 330-29 547/64573
Goodyear : 3B12-329 / 3B12329 / 3B12 329
Triangle
Part Number: 4757

Triangle Bellows Number:4703
Euclid/Meritor After market : E-FS7995
Watson & Chalin #:AS-0048-1F





W01-358-7995 Triple Convoluted Air Spring Specifications



  1. Extended:460 MM
  2. Closed :130MM
  3. Rubber Bellows Diameter :330 max. OD
  4. Air Inlet:1/4NPT
  5. Mounting Stud Combination:3/4-16UNF
  6. Upper Stud :3/8-16UNC
  7. Bottom Stud :2X3/8-16UNC
  8. The center distance of two bottom screws :157.5MM
  9. Iron plate round Diameter :231MM
  10. The center distance of two cover screws :140MM



Air springs have solved vibration and noise problems in multiple applications, such as:





Air spring refers to a type of spring made by utilizing the elasticity of compressed air. At present, it is mainly applied to shock absorber systems of various types of vehicles.
Air spring springs are not only used in vehicles, but they are also widely used in industrial equipment. In order to reduce the vibration of equipment, large-scale equipment or small equipment, as well as some precision instruments can be used. Air springs can not only reduce vibration, but also greatly reduce noise, giving us a lot of convenience in production.



  • Vibrating shaker screens
  • Vibrating conveyors
  • Precision electronic equipment• Vibrating hoppers and bins
  • Isolation of flex testing machines
  • Isolation of forging hammers
  • Thin plate welding clamping device
  • Isolation of frozen food and plastic pellet compaction systems
  • Isolation of cabs on dredging machines
  • Precision cutting machine bookbinding magazine
  • Isolation of computer and spectrometers from outside vibration
  • Isolation of oscillating equipment



The drawing of this GUOMAT Part NO.:2B6603



Firestone W01-358-7995 Industrial Air Bags For Isolation Of Flex Testing Machines Air Ride 3B12-329

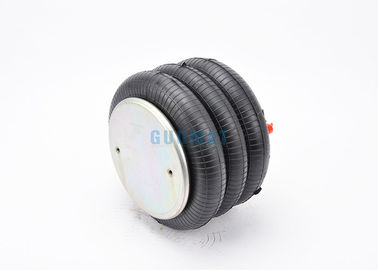

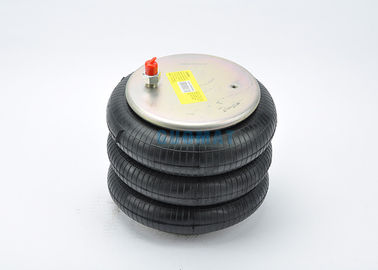

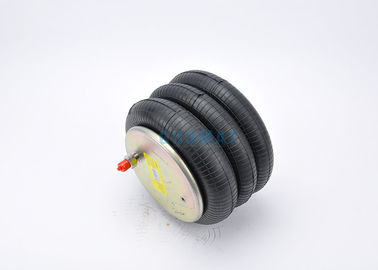

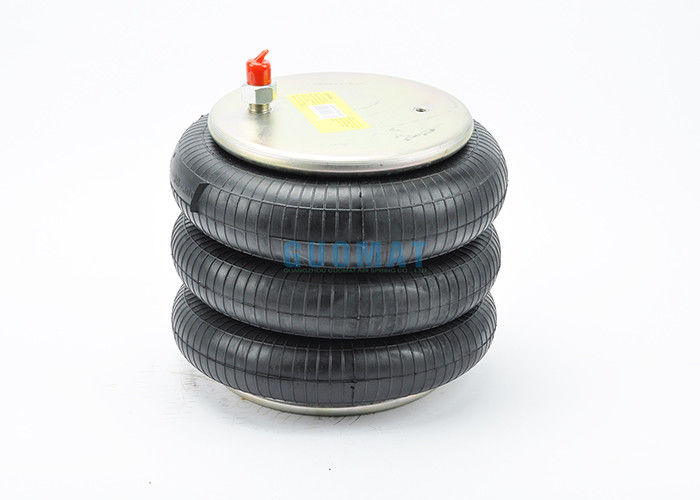

The detail photos of this GUOMAT Part NO.:2B6603



Firestone W01-358-7995 Industrial Air Bags For Isolation Of Flex Testing Machines Air Ride 3B12-329Firestone W01-358-7995 Industrial Air Bags For Isolation Of Flex Testing Machines Air Ride 3B12-329





Other kinds of FT 530-32 and FT 530-35  that GUOMAT have:



GUOMAT NO. Reference Order NO. Force (lbs) Max OD (in) Design height(in) Height Narural frequ.[cpm]
80 psi 100 psi Min MAX

FT 530 32 325 FT 530-32 325 161286 8400 10500 15.1 11 4.1 17.1 81
FT 530 32 329 FT 530-32 329 161287 8400 10500 15.1 11 4.1 17.1 81
FT 530 32 333 FT 530-32 333 161288 8400 10500 15.1 11 4 17.1 81
FT 530 32 336 FT 530-32 336 161289 8400 10500 15.1 11 4 17.1 81
FT 530 32 535 FT 530-32 535 161290 8400 10500 15.1 11 4.1 17.1 81
FT 530 32 536 FT 530-32 536 161291 8400 10500 15.1 11 4.1 17.1 81

FT 530 35 435 FT 530-35 435 161358 6900 8620 15 14 4.1 21.3 75
FT 530 35 436 FT 530-35 436 161359 6900 8620 15 14 4.1 21.3 75
FT 530 35 437 FT 530-35 437 161360 6900 8620 15 14 4.1 21.3 75
FT 530 35 438 FT 530-35 438 161361 6900 8620 15 14 4.1 21.3 75
FT 530 35 439 FT 530-35 439 161362 6900 8620 15 14 4 21.3 75
FT 530 35 441 FT 530-35 441 161363 6900 8620 15 14 4.1 21.3 75
FT 530 35 455 FT 530-35 455 161364 6900 8620 15 14 4.1 21.3 75
FT 530 35 456 FT 530-35 456 161365 6900 8620 15 14 4.1 21.3 75
FT 530 35 457 FT 530-35 457 161366 6900 8620 15 14 4.1 21.3 75
FT 530 35 521 FT 530-35 521 161367 6900 8620 15 14 4 21.3 75
FT 530 35 522 FT 530-35 522 161368 6900 8620 15 14 4.1 21.3 75
FT 530 35 523 FT 530-35 523 161369 6900 8620 15 14 4.1 21.3 75
FT 530 35 534 FT 530-35 534 161370 6900 8620 15 14 4 21.3 75
FT 530 35 537 FT 530-35 537 161371 6900 8620 15 14 4.1 21.3 75
