| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FD200-10 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | Norgren: | PM/31092 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 3.0kg |
| Other Name: | Air Actuators For Pneumatics | Pressure Ability: | 2-8 M Pa |
| Air Inlet: | G3/4 | Cover Plate Screw (Nut) Tooth: | 2 Pcs X M8X1.25 |
| High Light: | convoluted air spring,air suspension parts |
||

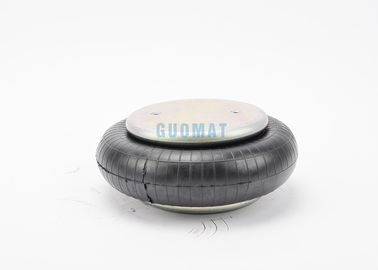

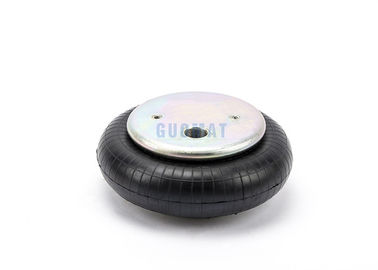

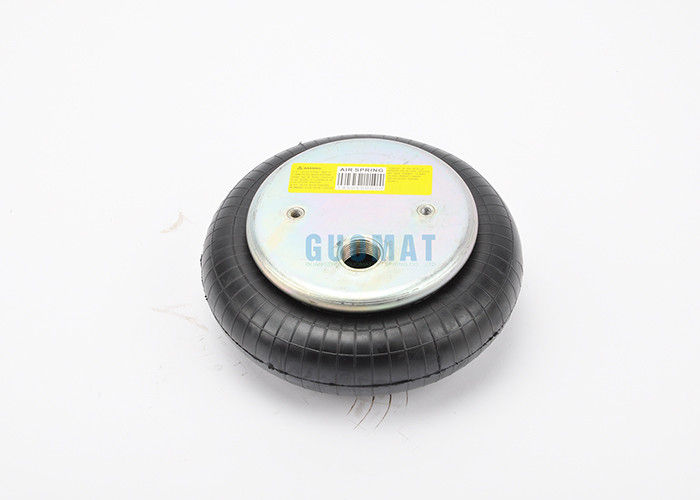

Firestone W01-358-0118 Industrial Air Spring Commercial Washing Machine

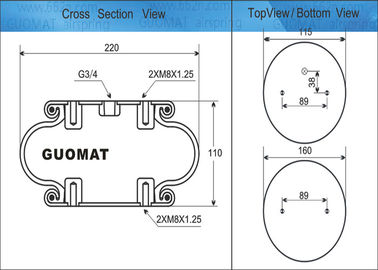

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G3/4
❸ Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 220 mm
Rubber Bellows Natural Height : 110 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop
OEM Original Equipment Manufacturer:
| BELLOW NO. | COMPLETE NO. |
| AIRKRAFT 112005 | AIRKRAFT 111004 |
| CONTITECH FS 200-10 60319 | CONTITECH FS 200-10 |
| FIRESTONE FLEX 115 | 2681 045000 |
| FIRESTONE W01-358-0118 | FIRESTONE W01 M58 6374 |
| DUNLOP (FR) 9"1/4x1 S09101 | |
|
BOSCH 822419004 |
|
| FESTO EB-250-85 | |
| NORGREN PM/31091 (91/4x1) | |
| WEFORMA WBE 400-E1 |
REASONS FOR USING AIR SPRINGS Bellows
