| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FS 200-10 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | Goodyear: | 1B9-202 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 1.8 Kg |
| Other Name: | Air Springs Pneumatic Suspensions | Pressure Ability: | 2-8 M Pa |
| Goodyear Another OEM: | 578 91 3 201 | ||
| High Light: | air helper springs,air suspension parts |
||

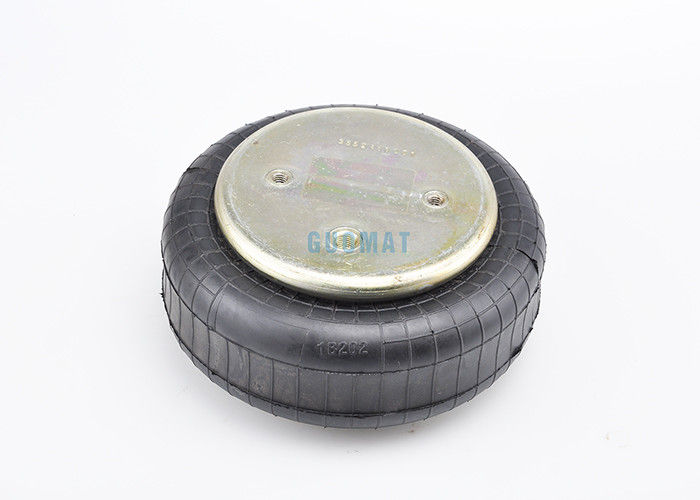

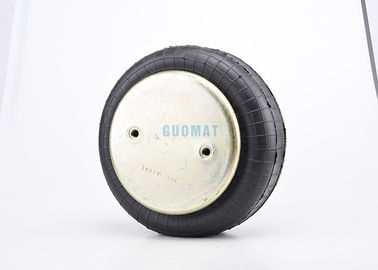

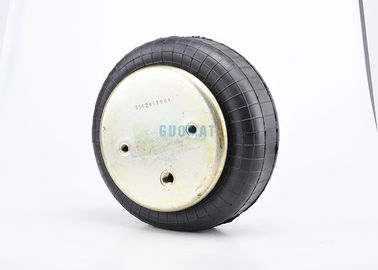

Goodyear 1B9-202 Another OEM 578 91 3 201 Position devices in manufacturing processes
OEM Original Equipment Manufacturer:
| Goodyear |
| 1B9-202 |
| 578 91 3 201 |

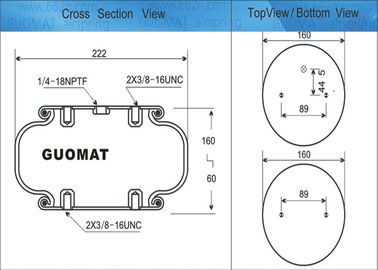

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm
❹Rubber Bellows
Rubber Bellows Diameter : 222 mm
Compressed Height: 100 mm / 4.1 inches
Maximum Height: 160 mm
Working Stroke : 60 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :No of Girdle Hoop
SPRING FEATURES
LOAD RANGE(ISOLATOR)........
.640-3900|b
DESIGN HE I GHT RANGE( ISOLATOR)...4.5-5.0 in
USEABLE STROKE w/o BUMPER (ACTUATOR)..3.0 in
USEABLE STROKE WITH BUMPER(ACTUATOR).2.0 in
ASSEMBLY WE I GHT
FORCE TO COMPRESS AT 0 PS IG(APPROX)..20Ib
NOM I NAL FREE STAND ING HT. AT 0 PSIG...5.7in
| ASSEMBLY NUMBER | ELASTOMER | AIR FITTING | BUMPER INCLUDED |
| 1B9-202 | NAT. RUBBER | 1/4”-18 NPTF OFFSET 1.75” | NO |
| 1B9-201 | NAT. RUBBER | 1/4”-18 NPTF OFFSET 1.75” | YES |
| 1B9-204 | NAT. RUBBER | 1/2”-14 NPTF OFFSET 1.75” | NO |
| 1B9-205 | NAT. RUBBER | 1/2”-14 NPTF OFFSET 1.75” | YES |
| 1B9-207 | NAT. RUBBER | 3/4”-14 NPTF OFFSET 1.5” | NO |
| 1B9-208 | NAT. RUBBER | 3/4”-14 NPTF OFFSET 1.5” | YES |
| 578913201 FLEXMEMBER NAT. RUBBER ONLY | NAT. RUBBER |
