4881 NP 02 / 4881NP02 Air Shocks For Trucks , Steel Piston Air Shocks For Towing

China 4881 NP 02 / 4881NP02 Air Shocks For Trucks  , Steel Piston Air Shocks For Towing supplier
4881 NP 02 / 4881NP02 Air Shocks For Trucks  , Steel Piston Air Shocks For Towing supplier 4881 NP 02 / 4881NP02 Air Shocks For Trucks  , Steel Piston Air Shocks For Towing supplier 4881 NP 02 / 4881NP02 Air Shocks For Trucks  , Steel Piston Air Shocks For Towing supplier 4881 NP 02 / 4881NP02 Air Shocks For Trucks  , Steel Piston Air Shocks For Towing supplier 4881 NP 02 / 4881NP02 Air Shocks For Trucks  , Steel Piston Air Shocks For Towing supplier

Large Image :  4881 NP 02 / 4881NP02 Air Shocks For Trucks , Steel Piston Air Shocks For Towing

Product Details:

Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949
Model Number: 4881 NP 02

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $59-159/pc

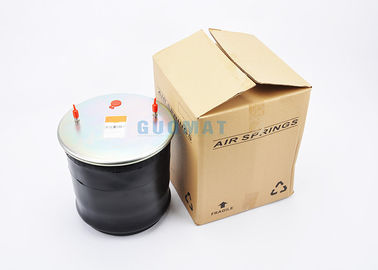

Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,Steel Piston CONTITECH: 4881 NP 02
Firestone: W01 M58 8602 GOODYEAR: 1R14-757
Other Name: Air Shocks For Towing Granning: 16905
BPW: 05.429.41.36.0 IVECO: 500036830

4881 NP 02 / 4881NP02 Air Shocks For Trucks W01 M58 8602 1R14-757 for IVECO BPW

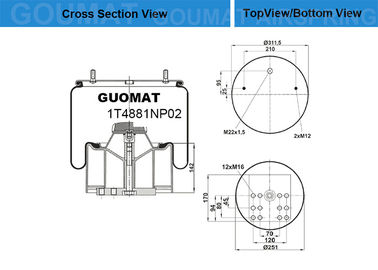

GUOMAT 1T4881NP02 Technical parameters



screw bolt / Stud

Top Cover Plate screw bolt / Stud Tooth :2 pcs M 12

Distance Between Stud and Central axis : 25 mm

❷ Gas Hole / Air inlet /Air Fitting

Gas Hole / Air inlet : M22x1.5.

Distance Between Gas Hole and Stud :70mm

Distance Between Gas Hole and Central axis :95 mm

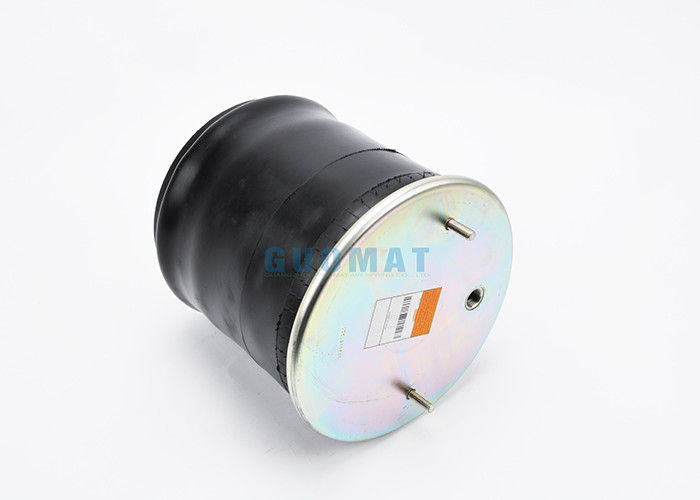

Cover Plate

Top Cover Plate Diameter: Ø311.5 mm

Rubber Bellows

Rubber Bellows Natural Diameter: 355 mm

Bumper block / Buffer block

Bumper Block height :30 mm

Bottom Piston

Bottom Piston Diameter : Ø256mm

Bottom Piston Height :148 mm

Piston Bolt

Piston Bolt Tooth : M16

12 pieces of Bolt

Middle inside between center Bolt : 70 mm

Middle faster between center Bolt : 120 mm

Inside the most close Bolt :45 mm

Inside and the beside Bolt:80 mm





4881 NP 02 / 4881NP02 Air Shocks for BPW



Cross References Vehicle​​s OEM References
Firestone W01 M58 8602 BPW: 05.429.41.36.0
Firestone 1T66D-7.0 BPW: 05.429.41.31.0
CONTITECH 4881 NP 02 BPW: 05.429.41.21.0
Goodyear 1R14-757 BPW: 05.429.41.08.1
Granning : 16905 BPW Type : 05.429.43.41.0
  IVECO 500036830



FIRESTONE 1T66F-7.0

W01 M58 8602

GOODYEAR 1R14-724

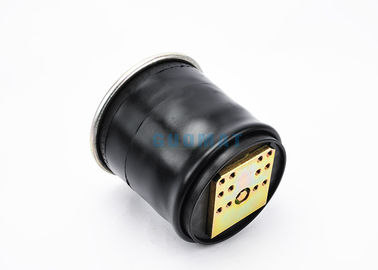

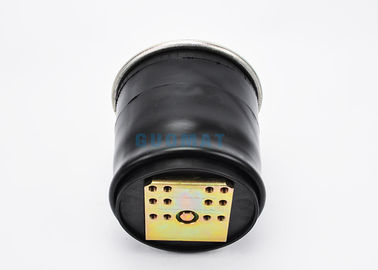

The base of 4881NP02 Air Shocks has 12 piece of screw for connection.
