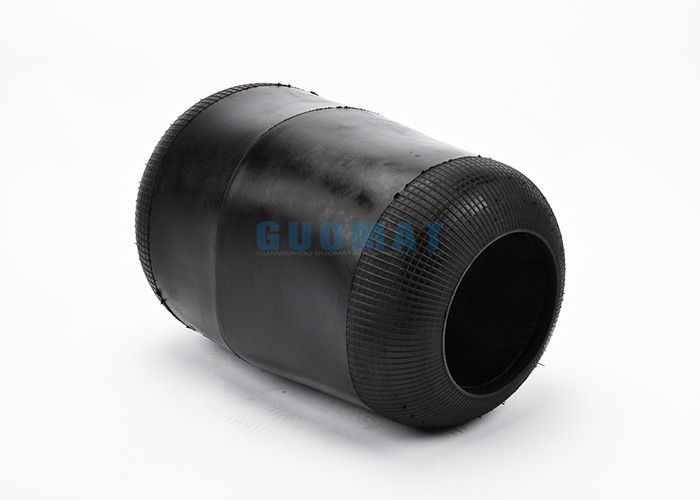

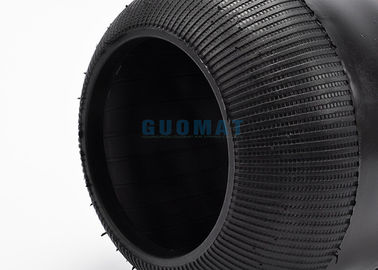

1R1D 355 355 Bus Air Spring Rubber Bellows Spring Fit for NEOPLAN 1001 12 251

1R1D 355 355 Bus Air Spring Rubber Bellows Spring Fit for NEOPLAN 1001 12 251

  • 1R1D 355 355 Bus Air Spring Rubber Bellows Spring Fit  for NEOPLAN 1001 12 251
  • 1R1D 355 355 Bus Air Spring Rubber Bellows Spring Fit  for NEOPLAN 1001 12 251
1R1D 355 355 Bus Air Spring Rubber Bellows Spring Fit  for NEOPLAN 1001 12 251
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1R1D 355 355
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $19-29/pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Contitech: 1R1D 355 355
Natural Outer Diameter: 300 Mm Opening Diameter: 198.1 Mm
Height: 360 Mm DUNLOP FR: D13S01
GOODYEAR: 9007 CFGOMMA: 1SC360-30
High Light:

contitech air bags

,

air helper springs

1R1D 355 355 Bus Air Spring Rubber Bellows Spring Can Fit for NEOPLAN 1001 12 251





CROSS REFERENCES OEM REFERENCES CROSS REFERENCES OEM REFERENCES
CONTITECH 662 N BPW 02.200.24.60.0
FIRESTONE 1R1D 355 355 ;1R1D 355-355
W01 095 0207
GRANNING 15623
GOODYEAR 9007 M.A.N 81.43601.0018
PHOENIX 1,00E+032 M.A.N 81,43601,0051
DUNLOP FR D13S01 NEOPLAN 1001 12 251
DUNLOP UK PNP 302730101 NEOPLAN 1001 10 200
CFGOMMA 1SC360-30 92594 NEOPLAN AA10-01-002
TAURUS BL 143 SCHMITZ-ANHANGER 750 209
  SMB 268 0662 000
  VDL/DAF 0 578 361
  WARSTEINER 501



CONTITECH
662N
FIRESTONESTYLE
1R1D355355
FIRESTONE ORDER
W01 095 0207
PHOENIX
1E32
DUNLOPF SPRINGRIDE)
D13S01
DUNLOPUK
PNP 302730101
GOODYEAR
9007
GRANNING
15623





1R1D 355 355 Bus Air Spring can fit for the below Model:



Neoplan AA 10-01-002 ( 1R1D 355 355 ) Vehicle : NH 12 L - NH 15L



Neoplan AA 10-01-002 ( 1R1D 355 355 ) Vehicle : NH 25 L

Neoplan AA 10-01-002 ( 1R1D 355 355 ) Vehicle : TR 8

Neoplan AA 10-01-002 ( 1R1D 355 355 ) Vehicle : TR 12

Neoplan 1001 122 51 ( 1R1D 355 355 ) Vehicle :

Neoplan 1001 102 00 ( 1R1D 355 355 ) Vehicle :



Schmitz 750 209 ( 1R1D 355 355 ) Vehicle :



SMB ( 1R1D 355 355 ) Vehicle : Truck alteration

SMB 268 0662 000 ( 1R1D 355 355 ) Vehicle :



Van Hool ( 1R1D 355 355 ) Vehicle : 418 AL ART

Van Hool ( 1R1D 355 355 ) Vehicle : RU 127

Van Hool ( 1R1D 355 355 ) Vehicle : VH 440/4

Van Hool ( 1R1D 355 355 ) Vehicle : VHA 120

Van Hool ( 1R1D 355 355 ) Vehicle : VHCAU 124

Van Hool ( 1R1D 355 355 ) Vehicle : VHD 119

Van Hool ( 1R1D 355 355 ) Vehicle : VHDAI 114

Van Hool ( 1R1D 355 355 ) Vehicle : VHDAI 119,119/2

Van Hool ( 1R1D 355 355 ) Vehicle : VHF 332

Van Hool ( 1R1D 355 355 ) Vehicle : VHF 4400

Van Hool ( 1R1D 355 355 ) Vehicle : VHF 441



VDL Bus 0 578 361 ( 1R1D 355 355 ) Vehicle : SB 2000

VDL Bus 0 578 361 ( 1R1D 355 355 ) Vehicle : SB 201



Wackenhut ( 1R1D 355 355 ) Vehicle : 10 t ale





BUSSING
100110200
BUSSING
100112251
BPW
02.200.24.60.0
FLOOR
00848
MAN
81.43601.0018
MAN
81.43601.0051
NEOPLAN
1001 10200
NEOPLAN
1001 10251
NEOPLAN
AA 10-01-002
NEOPLAN
AA10-21-300
SCHMITZ
750209
VDL BUS
0578361





The benefit to use air spring:



To optimize load distribution on multi-axle units.

To provide for auxiliary axle pick up when the axle is not need to use.
So it can provid operating economies and improved
maneuverability.

To permit automatic level. With automatic height sensors,
there is no change in vehicle height from an unloaded to a fully
loaded condition. GUOMAT air spring permits the cargo space to be designed
with a higher top and a lower floor without interfering with the
tires while still staying within maximum vehicle height limits.
A constant height is maintained when it use at loading docks
and for trailer pick-ups.





Change the air spring need to pay attention to these tips:



Clean the cover plate and the bottom piston, to check whether there is burr or installed on the metal parts corrosion replacement if necessary. On the seam allowance of the piston are coated with liquid soap or install tires lubricants but the grease cannot use.



During installation, make sure no damage to the air spring, combination of metal parts such as cover plate, piston sealing surface is not damaged, rust and getting dirty.



Check whether old metal piston indicates that there is a product of dirt, or surface rust caused by wear and tear. If there is, should clean up the surface of the piston, if necessary for processing to prevent rust or replace with new metal parts.



1R1D 355 355 Bus Air Spring Rubber Bellows Spring Fit  for NEOPLAN 1001 12 251 0

1R1D 355 355 Bus Air Spring Rubber Bellows Spring Fit  for NEOPLAN 1001 12 251 11R1D 355 355 Bus Air Spring Rubber Bellows Spring Fit  for NEOPLAN 1001 12 251 2
