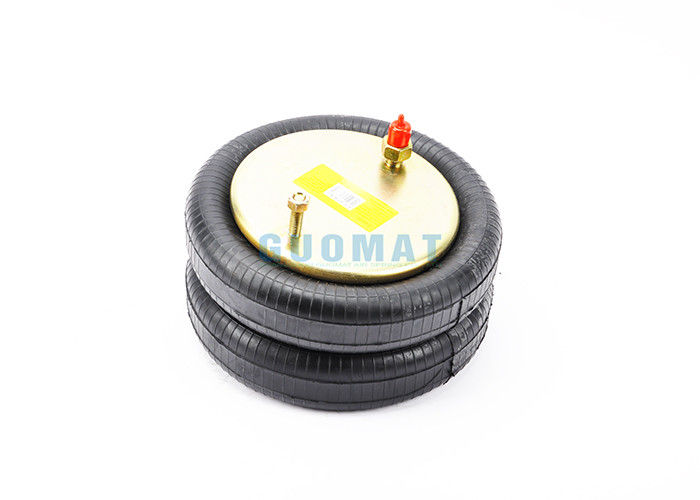

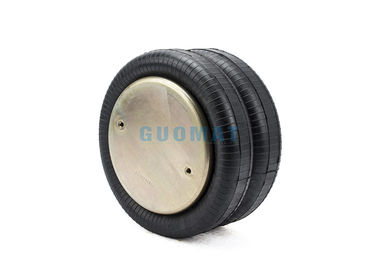

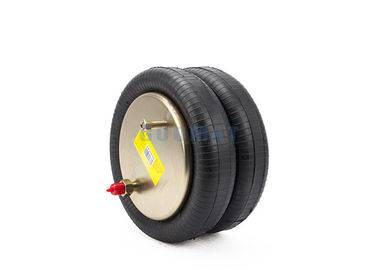

FD33126514 W013587545 2B12345 4514 Lift Industrial Air Bag GoodYear Bellows 578923315

FD33126514 W013587545 2B12345 4514 Lift Industrial Air Bag GoodYear Bellows 578923315

  • FD33126514 W013587545 2B12345 4514 Lift Industrial Air Bag GoodYear Bellows 578923315
  • FD33126514 W013587545 2B12345 4514 Lift Industrial Air Bag GoodYear Bellows 578923315
  • FD33126514 W013587545 2B12345 4514 Lift Industrial Air Bag GoodYear Bellows 578923315
FD33126514 W013587545 2B12345 4514 Lift Industrial Air Bag GoodYear Bellows 578923315
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: W013587545
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Firestone: W01-358-7545
Contitech Bellows#: FD 331-26, 64284 GoodYear Bellows#: 578-92-3-315 / 578 92 3 315 / 578923315
Gas Hole / Air Inlet: 1/4NPT , Combination Stud/Air Inlet Stud Top Cover Plate Diameter (Width): 224.5 Mm / 9.00 Inches
Compressed Height: 104 Mm / 4.1 Inches Working Stroke: 259 Mm / 10.2 Inches
High Light:

air helper springs

,

air suspension parts

FD33126514 W013587545 2B12345 4514 Lift Air Bag GoodYear Bellows 578923315





Manufacturer Cross OEM Reference Other Cross OEM Reference
Firestone : W01-358-7545 / W01 358 7545 / W013587545 Triangle Part Number:4514
Firestone Bellows Number:228-1.5 / 228C-1.5 Triangle Bellows Number:6375
Firestone Top Plate Number:3271 Hendrickson Auxiliary : 001796
Firestone Piston Number:3183 (Paralift Ultra/High Lift) - Lift bag
Contitech : FD 331-26 514 Watson&Chalin : AS-0087-1F / AS-0109
Contitech Bellows#: FD 331-26, 64284
Goodyear : 2B12-345 / 2B12 345 / 2B12345
GoodYear Bellows#: 578-92-3-315 / 578 92 3 315 / 578923315





Hendrickson Turner Life Axle HLN (Non-Steer), HLP (Paralift), HLU, HLUN, HLUS (Ultra-Steer), HLUR-2 (Pararev)

Top Plate C to C Dia. (B): 6.20

Bottom Plate Dia. (C): 9.00

Bottom Plate C to C Dia. (D): 2.25

Bottom Plate Alignment: 90 Degree



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC

Top Cover Plate Combination Nut : 3/4-16UNF

Screw Center Distance of Top Cover Plate : 157 mm / 6.2 inches

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT , Combination Stud/Air Inlet Stud

Cover Plate

Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

Rubber Bellows

Rubber Bellows MAX Diameter : 343 mm / 9.7 inches

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 363mm / 14.3 inches

Working Stroke : 259 mm / 10.2 inches

Bumper block / Buffer block

With Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Pictures show the information includes:



Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values



FD33126514 W013587545 2B12345 4514 Lift Industrial Air Bag GoodYear Bellows 578923315 0FD33126514 W013587545 2B12345 4514 Lift Industrial Air Bag GoodYear Bellows 578923315 1FD33126514 W013587545 2B12345 4514 Lift Industrial Air Bag GoodYear Bellows 578923315 2



GUOMAT NO. Reference Order NO. Force (lbs) Max OD (in) Design height(in) Height Narural frequ.[cpm]
80 psi 100 psi Min MAX
FD 330 30 323 FD 330-30 323 161314 5900 7400 13.4 9 3.2 14.2 95
FD 330 30 340 FD 330-30 340 161315 5900 7400 13.4 9 4.1 14.2 95
FD 330 30 369 FD 330-30 369 161316 5900 7400 13.4 9 3.2 14.2 95
FD 330 30 370 FD 330-30 370 161317 5900 7400 13.4 9 4.1 14.2 95
FD 330 30 371 FD 330-30 371 161318 5900 7400 13.4 9 3.2 14.2 95
FD 330 30 372 FD 330-30 372 161319 5900 7400 13.4 9 4.1 14.2 95
FD 330 30 373 FD 330-30 373 161320 5900 7400 13.4 9 3.2 14.2 95
FD 330 30 464 FD 330-30 464 161321 5900 7400 13.4 9 3.2 14.2 95
FD 330 30 502 FD 330-30 502 161322 5900 7400 13.4 9 4.1 14.2 95
FD 330 30 512 FD 330-30 512 161323 5900 7400 13.4 9 4.1 14.2 95
FD 330 30 513 FD 330-30 513 161324 5900 7400 13.4 9 4.1 14.2 95
FD 330 30 549 FD 330-30 549 161325 5900 7400 13.4 9 4.1 14.2 95
FD 331 26 480 FD 331-26 480 161030 5040 6300 13.5 10.5 4.1 14.3 90
FD 331 26 514 FD 331-26 514 161380 5040 6300 13.5 10.5 4.1 14.3 90
FD 331 26 527 FD 331-26 527 161381 5040 6300 13.5 10.5 4.1 14.3 90
FD 331 26 541 FD 331-26 541 161382 5040 6300 13.5 10.5 4.1 14.3 90
FD 331 26 552 FD 331-26 552 161383 5040 6300 13.5 10.5 4.1 14.3 90
