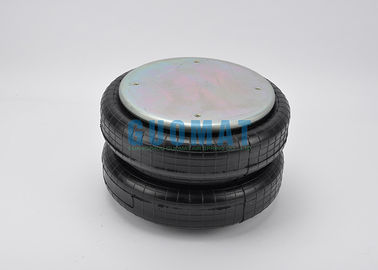

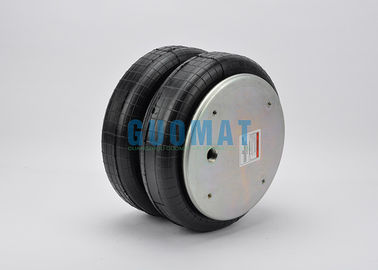

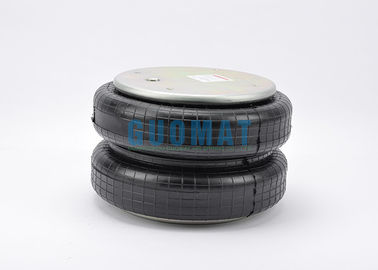

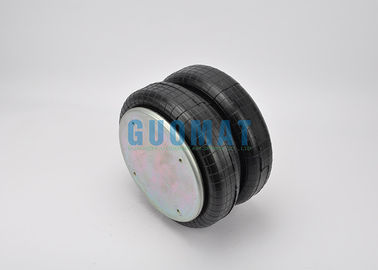

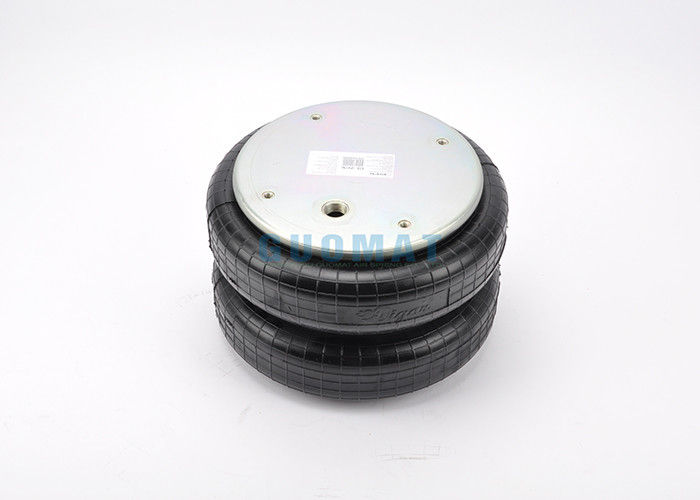

Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C

Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C

  • Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C
  • Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C
  • Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C
  • Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C
  • Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C
Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: W013587781
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Ridewell Number: 1003587781C
Contitech: FD 530-35 545 / FD 530 35 545 Firestone: W01-358-7781 / W01 358 7781/W013587781
Gas Hole / Air Inlet: 3/4NPT Cover Plate Diameter (Width): 289 Mm
Compressed Height: 104 Mm / 4.1 Inches Overall Weight With Clamped Plates: 22.7 Lbs
High Light:

convoluted air spring

,

air helper springs

Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C





Cross Manufacturer Cross OEM
Firestone : W01-358-7781 / W01 358 7781/W013587781
Firestone Bellows Number: 233-2
Contitech : FD 530-35 545 / FD 530 35 545
Ridewell : 1003587781C
Ridewell Number: 1003587781C
Triangle: 6412
Firestone Top Plate Number: 3134
Firestone Piston Number: 3130





Assembly Weight: 22.7 lbs

Design Height: 10-12 inches

Minimum Jounce Height: 4.8 inches

Loading Capacity at 20 psig: 2,040 lbsf

Loading Capacity at 60 psig: 6,120 lbsf

Loading Capacity at 90 psig: 9,180 lbsf

Maximum Diameter: 15.7 inches

Operating Temperature: 57Cº to -54Cº

Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 159 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4NPT

Center Distance Between Nut and Air inlet: 79.5 mm

Cover Plate

Top Cover Plate Diameter (Width): 289 mm

Bottom Cover Plate Diameter (Width): 289 mm

Rubber Bellows

Rubber Bellows MAX Diameter : 406 mm

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 391 mm

Working Stroke : 287mm

Bumper block / Buffer block

With Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Contitech FD 530-35 Cross other OEM:





Firestone  Style 233-2

Two Ply Bellows

Blind nuts, 1/4 NPT

Firestone W01-358-6810

Blind nuts, 1/4 NPT, rubber bumper

Firestone W01-358-7781

Blind nuts, 3/4 NPT

Firestone W01-358-6811

Firestone PA RT NO.: 233- 3

Blind nuts, 3/4 NPT, rubber bumper

TR NO.:A9899

Firestone W01-358-6819

Countersunk steel bead rings, 1 7/8 bolts, nuts, washers

Firestone W01-358-7558

Assembly weight....................................................... 18.8 lbs

Force to collapse to minimum height (@ 0 PSIG) ... 100 lbs.







Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C 0

Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C 1Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C 2Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C 3Contitech FD 530-35 545 Industrial Air Spring W013587781 Ridewell 1003587781C 4



GUOMAT NO. Reference Order NO. Force (lbs) Max OD (in) Design height(in) Height Narural frequ.[cpm]
80 psi 100 psi Min MAX
FD 530 22 311 FD 530-22 311 161326 6530 8170 15 9.8 3.3 12.2 108
FD 530 22 316 FD 530-22 316 161327 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 321 FD 530-22 321 161328 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 342 FD 530-22 342 161329 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 345 FD 530-22 345 161330 6530 8170 15 9.8 4.1 12.2 108
FD 530 22 374 FD 530-22 374 161331 6530 8170 15 9.8 3.3 12.2 108
FD 530 30 449 FD 530-30 449 161372 7480 9350 15.5 10.2 4.1 13.8 91
FD 530 30 451 FD 530-30 451 161373 7480 9350 15.5 10.2 4.1 13.8 91
FD 530 30 518 FD 530-30 518 161374 7480 9350 15.5 10.2 3.4 13.8 91
FD 530 30 519 FD 530-30 519 161375 7480 9350 15.5 10.2 4.1 13.8 91
FD 530 30 532 FD 530-30 532 161376 7480 9350 15.5 10.2 4.1 13.8 91
FD 530 35 528 FD 530-35 528 161386 7930 9910 16 11 3 15.4 84
FD 530 35 530 FD 530-35 530 161387 7930 9910 16 11 4.1 15.4 84
FD 530 35 543 FD 530-35 543 161388 7930 9910 16 11 4.1 15.4 84
FD 530 35 544 FD 530-35 544 161389 7930 9910 16 11 4.1 15.4 84
FD 530 35 545 FD 530-35 545 161390 7930 9910 16 11 4.1 15.4 84
