CF GOMMA 1T-280-40 / 1T280-40 / 1T28040 Truck Air Springs Air balloons

China CF GOMMA 1T-280-40 / 1T280-40 / 1T28040 Truck Air Springs Air balloons supplier

Large Image :  CF GOMMA 1T-280-40 / 1T280-40 / 1T28040 Truck Air Springs Air balloons

Product Details:

Place of Origin: Guangdong , China
Brand Name: GUOMAT
Certification: ISO/TS16949
Model Number: 1T-280-40

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: $59-159/pc
Packaging Details: strong carton box or as customer's need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Bellows ,Steel Piston CF GOMMA: 1T28040

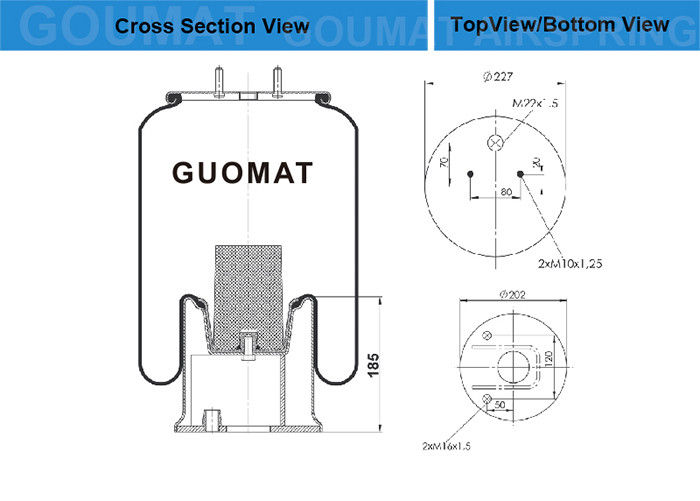

Other Name: Trailer Air Spring Cover Plate OD: 227 MM
Air Inlet: M22 Piston Height: 185 Mm

CF GOMMA 1T-280-40 / 1T280-40 / 1T28040 Truck Air Springs Air balloons





CF GOMMA 1T-280-40









Technical data



CF GOMMA 1T-280-40 / 1T280-40 / 1T28040 Truck Air Springs Air balloons



GUOMAT Number Assembly Number Max OD @100 PSIG (Inches) Design Load Range (pounds) Design Height Range (Inches) Usable Stroke (Inches) Min Comp Height (Inches) Max Ext Height (Inches) Bumper Included Approximate Isolation Percent Air Fitting Size (Inches)
For a Distributing Frequency Of:
435 CPM 870 CPM 1160 CPM 1750 CPM
1R10 089 1R10-089 11 900 - 5,200 9.5 - 13.5 14.1 6 20.1 NO 96 99 99 99 1/4 CS
1R11 028 1R11-028 11.5 1,100 - 6,700 6.0 - 10.0 9.3 3.7 13 NO 95 98 99 99 1/4 CS
1R11 039 1R11-039 11.7 1,300 - 7,000 8.0 - 12.0 11 6.1 17.1 YES 94 98 99 99 1/4 CS
1R12 092 1R12-092 12.7 1,350 - 7,600 10.5 - 16.5 13.4 7.7 21.1 YES 96 99 99 99 1/4 CS
1R12 095 1R12-095 12.7 1,350 - 7,300 7.0 - 9.0 9.1 4.4 13.5 YES 94 98 99 99 1/4 CS
1R12 103 1R12-103 12.7 1,300 - 7,300 15.0 - 20.0 17.5 9.5 27 YES 96 99 99 99 1/4 CS
1R12 132 1R12-132 12.9 1,400 - 7,600 8.0 - 10.0 10.8 6.1 16.9 YES 93 98 99 99 1/4 CS
1R12 256 1R12-256 12.6 1,350 - 7,300 16.0 - 20.0 19.6 9.5 29.1 YES 96 99 99 99 1/4 CS
1R12 274 1R12-274 12.8 1,450 - 7,300 11.3 - 14.3 14.7 8.1 22.8 YES 96 99 99 99 1/4 CS
1R14 018 1R14-018 14.6 1,500 - 8,500 11.0 - 16.5 14.8 7.7 22.5 YES 96 99 99 99 1/4 OS
1R14 019 1R14-019 14.6 1,500 - 8,500 14.0 - 18.0 16.9 8.9 25.8 YES 96 99 99 99 1/4 OS
1R14 037 1R14-037 14.8 1,900 - 11,000 7.5 - 11.0 12.3 5.7 18 YES 92 98 98 99 1/4 OS
1R8 005 1R8-005 8.7 560 - 3,100 10.5 - 13.0 13 5.6 18.6 NO 95 98 99 99 1/4 CS
1R8 009 1R8-009 8.7 480 - 2,700 10.5 - 13.0 11.8 6.8 18.6 YES 96 98 99 99 1/4 CS
1R9 003 1R9-003 9.5 560 - 3,700 8.0 - 12.0 12.3 5.6 17.9 NO 93 98 99 99 1/4 CS
1R9 009 1R9-009 9.5 800 - 4,400 6.0 - 7.5 8.6 3.2 11.8 NO 91 97 98 99 1/4 CS
