| Place of Origin: | Guangdong , China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949 |
| Model Number: | 1R14-758 / 1R14 758 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $59-159/pc |
| Packaging Details: | strong carton box or as customer's need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows ,Steel Piston | GOODYEAR: | 1R14-758 / 1R14 758 |
|---|---|---|---|
| Other Name: | S.A.F Air Spring Shock | CONTITECH: | 912 N P02 / 912NP02 / 912N P02 |
| S.A.F: | 3.229.0005.01 | WEWELER: | US96681F |
| SAF: | 3.229.0006.01 | HENDRICKSON: | Y507782 |
| High Light: | air ride springs,truck air bag suspension |
||

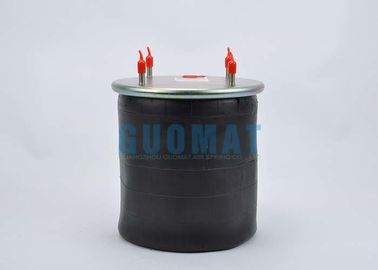

GOODYEAR Air Spring 1R14-758 / 1R14 758 , PHOENIX 1D28D-2 For ROR 21222673
OEM Cross Number:
GUOAMT NO.:1T912NP02
CONTITECH 912 N P02 / 912NP02 / 912N P02
GOODYEAR 1R14-758 / 1R14 758 / 1R14758
PHOENIX 1D 28 D-2 / 1D28D-2 / 1D28D2
DUNLOP FR D13B14
CF GOMMA 1T19E-4 202442 / 1T19E 4 / 1T19E4
OEM Suspension Supplier Number:
HENDRICKSON Y507782
R.O.R/MERITOR 2122 2673
S.A.F 3.229.0005.01
S.A.F 3.229.0006.01
S.A.F 3.229.0013.00
WEWELER US96681F
Weweler US 96681 912 N P02
ROR 2122 2673 912 N P02
Hendrickson Europe Hendr. 507 782 912 N P02
SAF 3.229.0013.00 912 N P02 SAF 2926 V P02
The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT
❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.
❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.
❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
