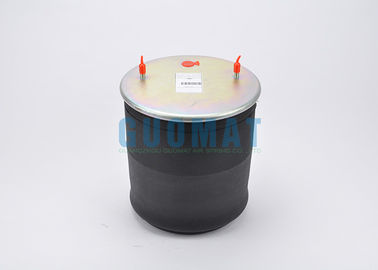

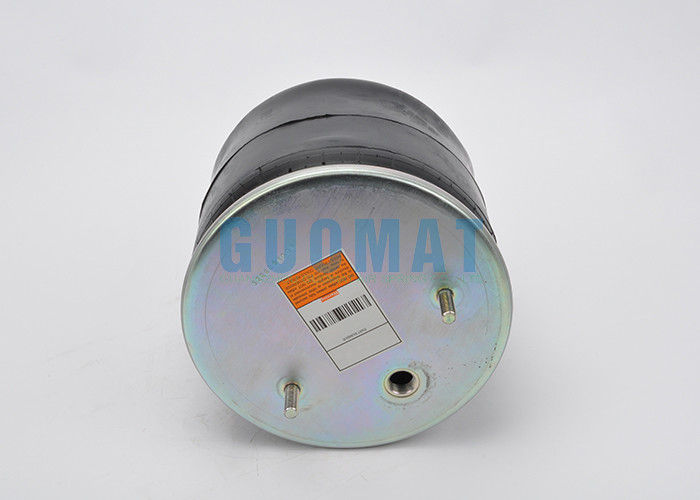

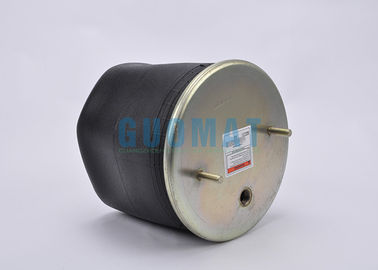

CONTITECH 941 MB**CA / 941MB / 941 MB Truck Air Spring For BPW 05.429.40.10.1

Truck Air Spring CONTITECH 941 MB**CA / 941MB / 941 MB For BPW 05.429.40.10.1

OEM Cross Number:

GUOAMT NO.:1T941MB CA

CONTITECH 941 MB**CA / 941MB / 941 MB
FIRESTONE 1T17D-8.3 / 1T17D 8.3 / 1T17D8.3
FIRESTONE W01 M58 8619 / W01-M58-8619 / W01M588619
GOODYEAR 1R11-701 / 1R11 701 / 1R11701
PHOENIX 1 DK 21**CA / 1DK21 / 1DK 21
DUNLOP FR D11B30
CF GOMMA 1 TC 300-36 204466 / 1TC300-36 / 1TC300 36
CF GOMMA 1 TC 300-36 206356 / 1TC300-36 / 1TC300 36

AIRTECH Number: 3941P
CONTI Number: 941MB
DUNLOP Number: FR D11U30
FIRESTONE Number: 1T17D-8.3
FIRESTONE Number: W01M588620
GART Number: 293.0.511
GART Number: C293
GOODYEAR Number: 1R11-700
GOODYEAR Number: 566-22-3-500
PHOENIX Number: 1DK21
PHOENIX Number: UBPW30T
PIRELLI Number: D11A30
PIRELLI Number: 1TC30036204466
TAURUS Number: KR730-01
VIBRACOUSTIC Number: V1DK21
WABCO Number: 9518117000

OEM Suspension Supplier Number:

BPW 05.429.40.10.1
BPW 05.429.40.28.1
BPW 05.429.40.36.1
BPW 05.429.40.59.1
BPW 05.429.41.14.1
BPW 05.429.41.23.1
BPW 05.429.41.27.1
BPW 05.429.41.53.1
BPW 05.429.42.19.1
BPW 05.429.43.21.0
BPW BPW 30

BPW 05.429.40.03.0 30
Schmitz 015 514 30

BPW Number: BPW30
ROR Number: MLF7047
ROR Number: MLF7093

Weight 5 kg
M12: max. 70 Nm
M16: max. 130 Nm
M22x1.5: max. 20 Nm

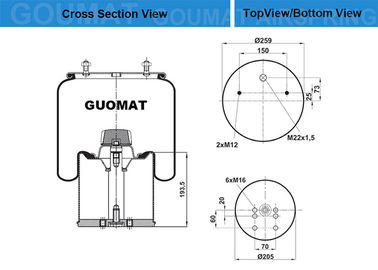

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT

❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
